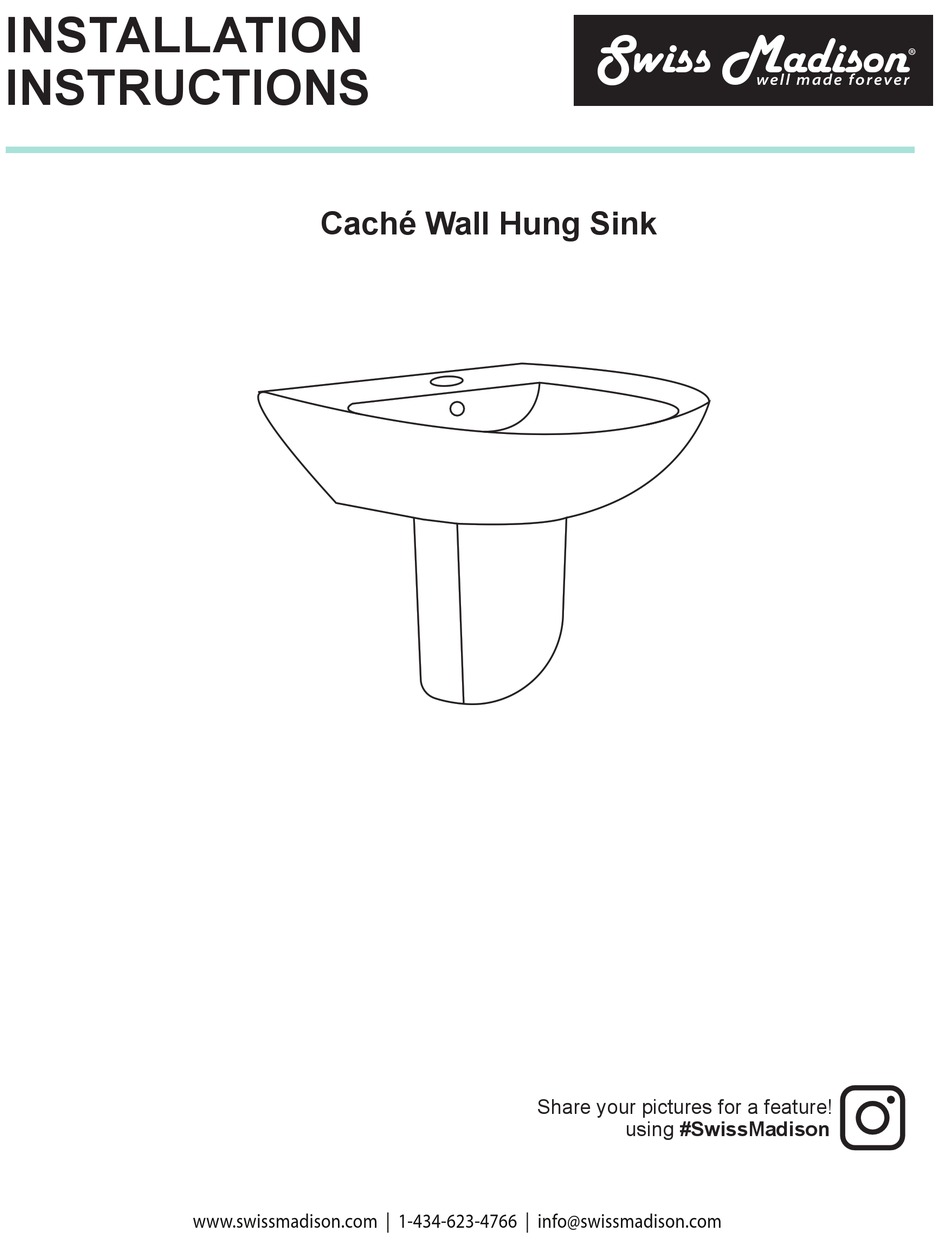

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Caché Wall Hung Sink Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase Thank you for purchasing a Swiss Madison Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 3 WALL HUNG SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1.
- Page 4 WALL HUNG SINK INSTALLATION INSTRUCTIONS 1. Mounting the Sink Plastic Solenoid Metal Screw Plastic Gasket Metal Gasket Metal Nut 1. Drill two holes in the required position on the wall 2. Push a wall plug into each hole. using a 14mm masonry drill bit, to a depth of 75mm. 3.
- Page 5 3. Attach Plumbing 4. Install Shroud Set sink into the mounting bracket. Slide the shroud into place. Using a pencil mark location of holes located Install faucet, most of trap, and connect supply lines. on both sides of the shroud. 5.
- Page 6 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
