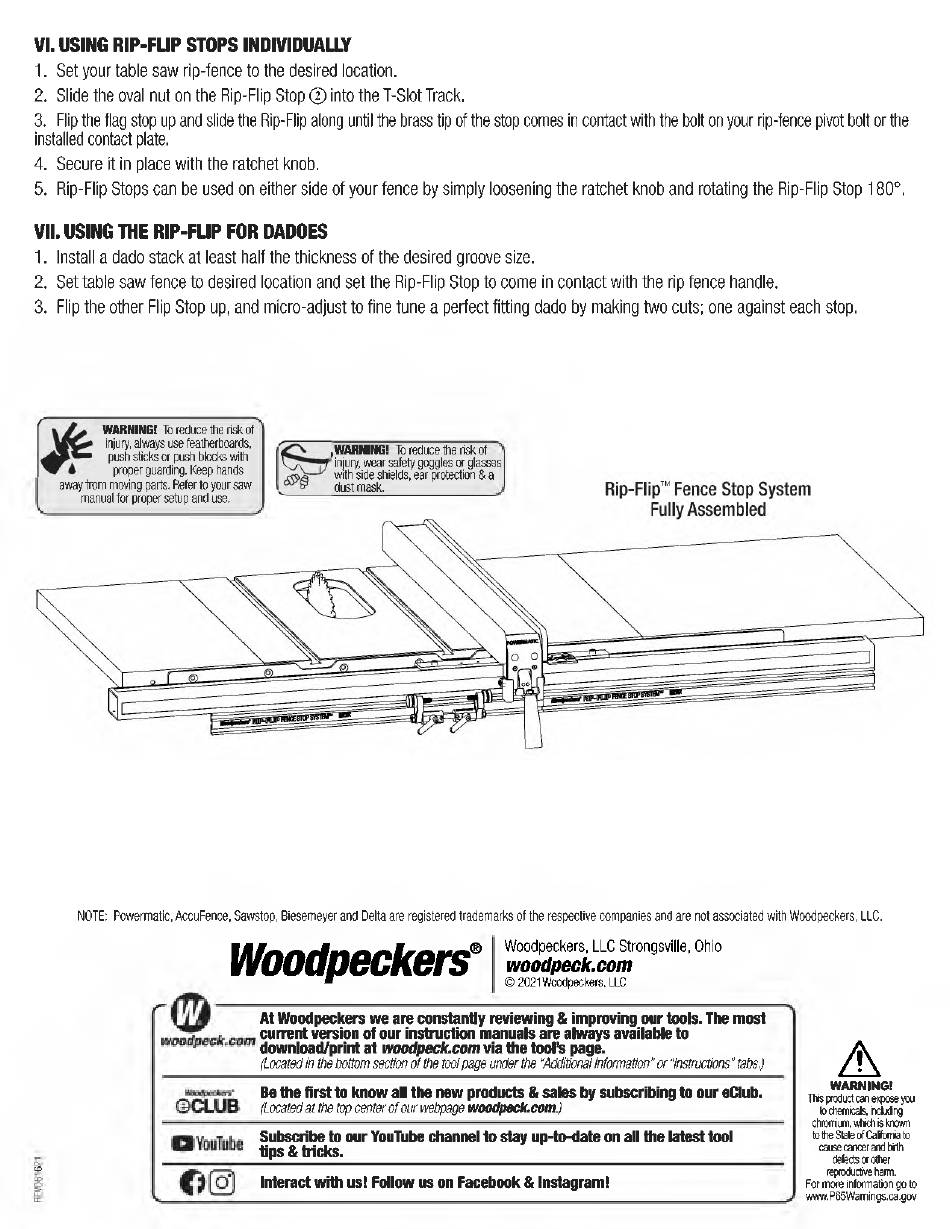

Woodpeckers RIP-FLIP FENCE STOP SYSTEM Owner's Manual page 8

manual for proper setup and use.
V I. USING RIP-FLIP STOPS INDIVIDUALLY
1. Set your table saw rip-fence to the desired location.
2. Slide the oval nut on the Rip- lip Stop 2 into the T-Slot Track.
3. lip the flag stop up and slide the Rip- lip along until the brass tip of the stop comes in contact with the bolt on your rip-fence pivot bolt or the
installed contact plate.
4. Secure it in place with the ratchet knob.
5. Rip- lip Stops can be used on either side of your fence by simply loosening the ratchet knob and rotating the Rip- lip Stop 180°.
VII. USING THE RIP-FLIP FOR DADOES
1. Install a dado stack at least half the thickness of the desired groove size.
2. Set table saw fence to desired location and set the Rip- lip Stop to come in contact with the rip fence handle.
3. lip the other lip Stop up, and micro-adjust to fine tune a perfect fitting dado by making two cuts; one against each stop.
NOTE: owermatic, AccuFence, Sawstop, Biesemeyer and Delta are registered trademarks of the respective companies and are not associated with Woodpeckers, LLC.
Woodpeckers, LLC Strongsville, Ohio
woodpeck.com
© 2021 Woodpeckers, LLC
At Woodpeckers we are constantly reviewing & improving our tools. The most
current version of our instruction manuals are always available to
download/print at woodpeck.com via the tool ' s page.
Located in the bottom section of the tool page under the " Additional Information" or " Instructions" tabs.)
WA NING!
This product can expose you
to chemicals, including
chromium, which is known
to the State of California to
cause cancer and birth
defects or other
reproductive harm.
For more information go to
www. 65Warnings.ca.gov
WA NING!
To reduce the risk of
injury, always use featherboards,
push sticks or push blocks with
proper guarding. Keep hands
away from moving parts. Refer to your saw
WA NING!
To reduce the risk of
injury, wear safety goggles or glasses
with side shields, ear protection & a
dust mask.
