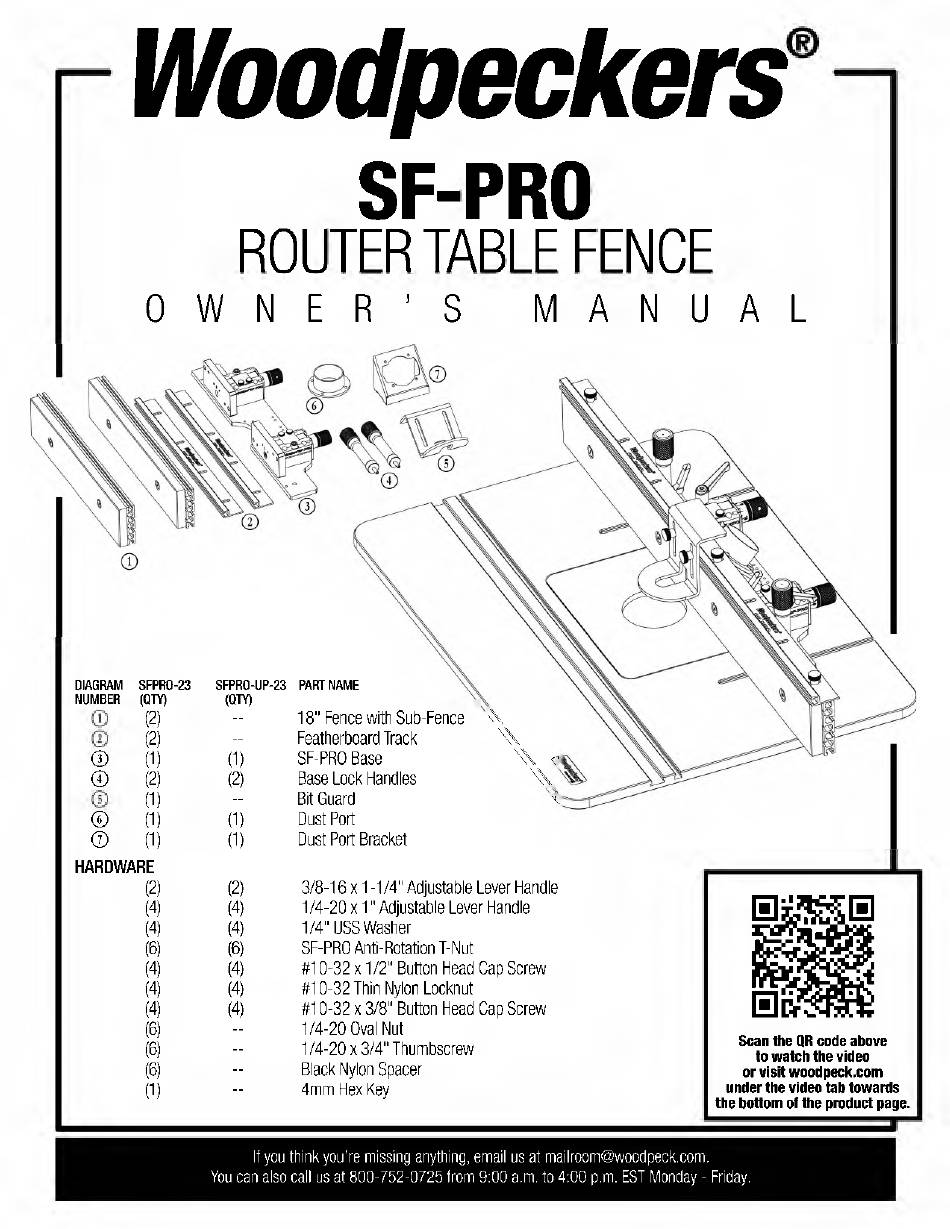

Woodpeckers SF-PRO Owner's Manual

oodpeckers
F-PRO
OUTE TABLE FENCE
OWNE ' S MANUAL
IAGRAM
NUMBER
SFPRO-23
(<HY)
SFPRO-UP-23
(QTY)
PART NAME
1
2)
0
18" Fence with Sub-Fence
2
2)
0
Featherboard Track
3
1 ) 1)
SF-PRO Base
4
2) 2)
Base Lock Handles
5
1)
0
Bit Guard
6
1) 1)
Dust Port
7
1) 1)
Dust Port Bracket
HAR WARE
2) 2)
3/8-16 x 1 -1/4" Adjustable Lever Handle
4) 4)
1/4-20 x 1" Adjustable Lever Handle
4) 4)
1/4" USS Washer
6) 6)
SF-PRO Anti-Rotation T-Nut
4) 4)
#10-32 x 1/2" Button Head Cap Screw
4) 4)
#10-32 Thin Nylon Locknut
4) 4)
#10-32 x 3/8" Button Head Cap Screw
6)
0
1/4-20 Oval Nut
6)
0
1/4-20 x 3/4" Thumbscrew
6)
0
Black Nylon Spacer
1)
0
4mm Hex Key
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
