Woodpeckers RIP-FLIP FENCE STOP SYSTEM Owner's Manual page 7

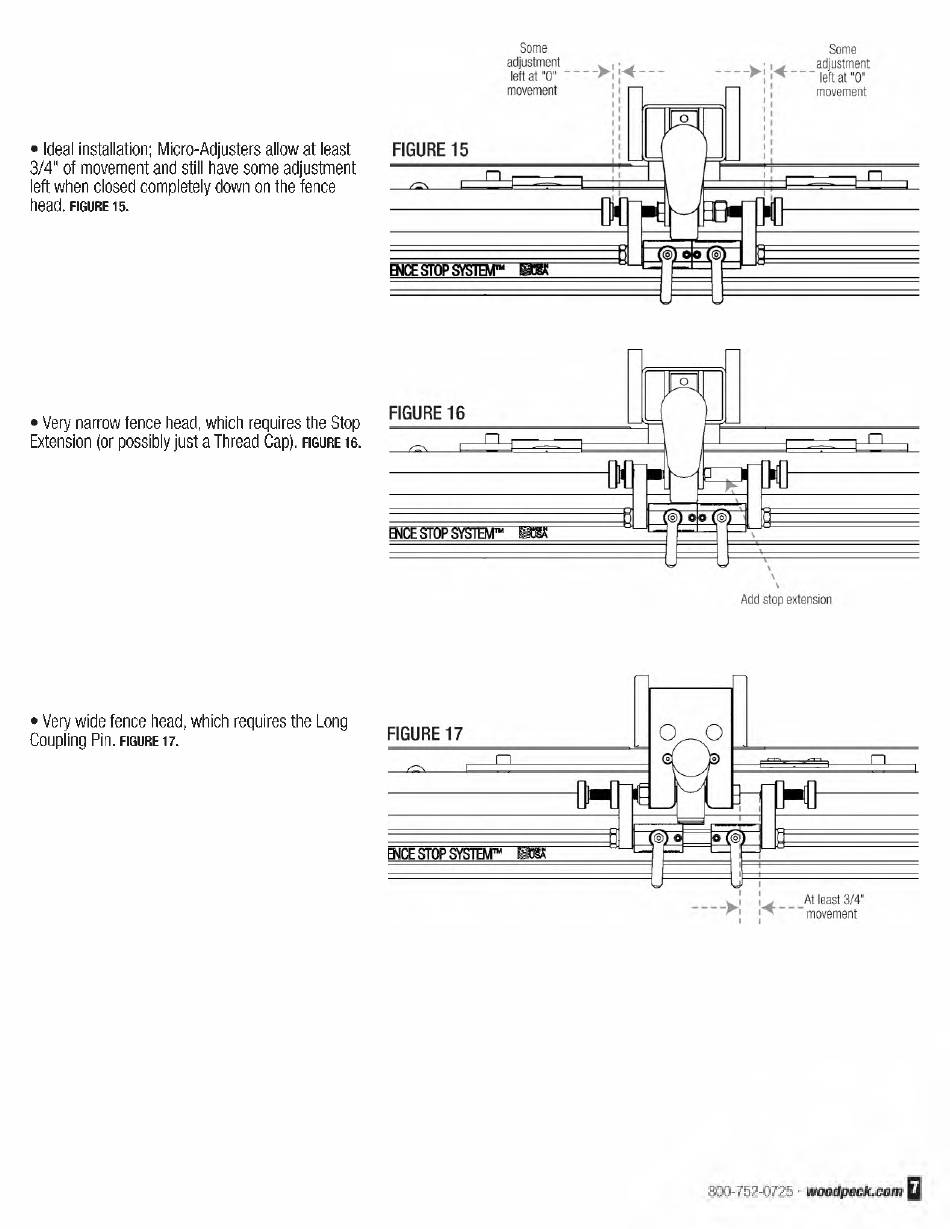

• Ideal installation; Micro-Adjusters allow at least
3/4" of movement and still have some adjustment
left when closed completely down on the fence
head,
igure 15.
• Very narrow fence head, which requires the Stop
Extension (or possibly just a Thread Cap),
igure 16.
• Very wide fence head, which requires the Long
Coupling Pin.
igure 17.
