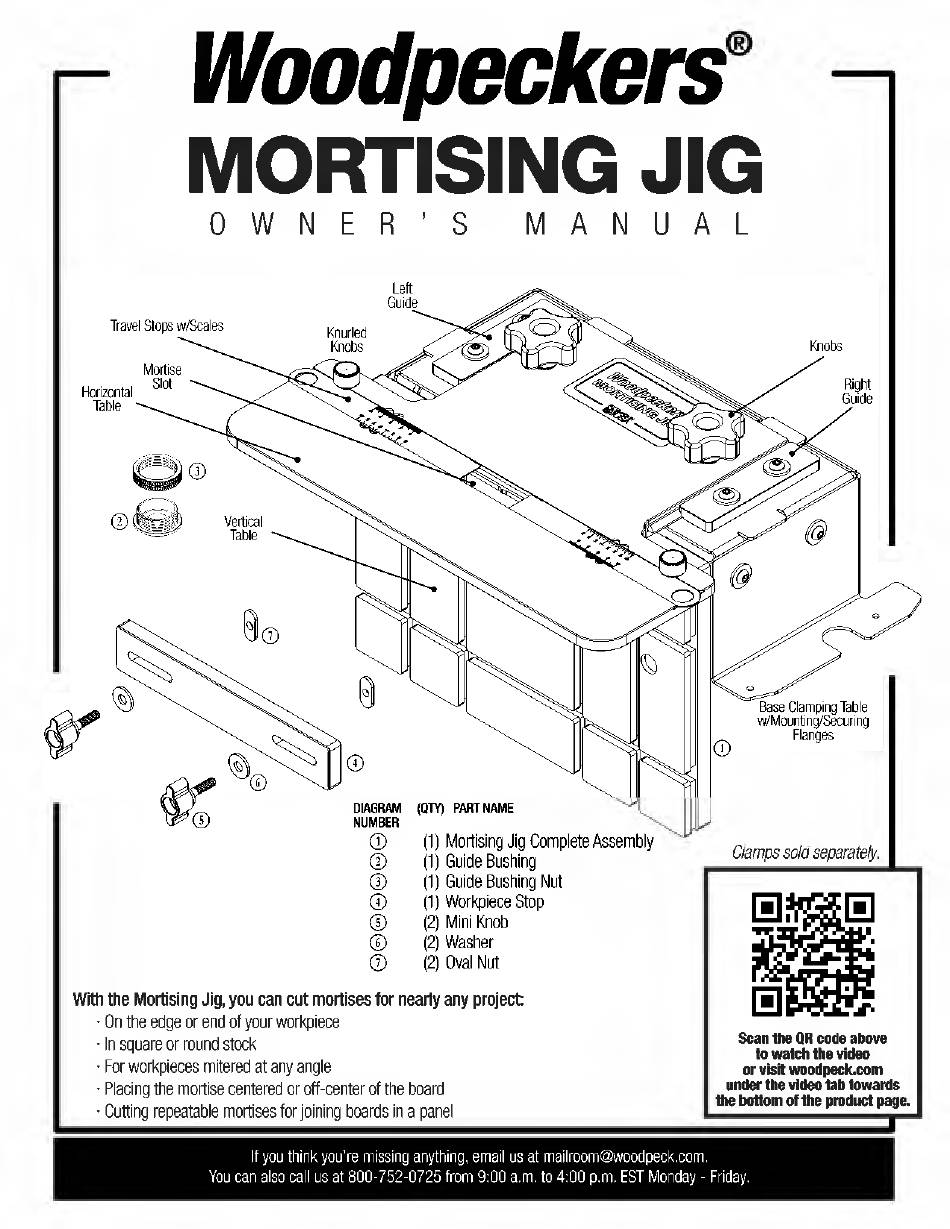

Woodpeckers MORTISING JIG Owner's Manual

oodpeckers
ORTISING JIG
OWNER ' S ANUAL
lamps sold separately.
With the ortising Jig, you can cut mortises for nearly any project:
∙ On the edge or end of your workpiece
∙ In square or round stock
∙ For workpieces mitered at any angle
∙ Placing the mortise centered or off-center of the board
∙ Cutting repeatable mortises for joining boards in a panel
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST onday - Friday.
DIAGRA
NU BER
(QTY) PART NA E
1 (1) ortising Jig Complete Assembly
2 (1) Guide Bushing
3 (1) Guide Bushing Nut
4
(1) Workpiece Stop
5 (2) ini Knob
6 (2) Washer
7 (2) Oval Nut
