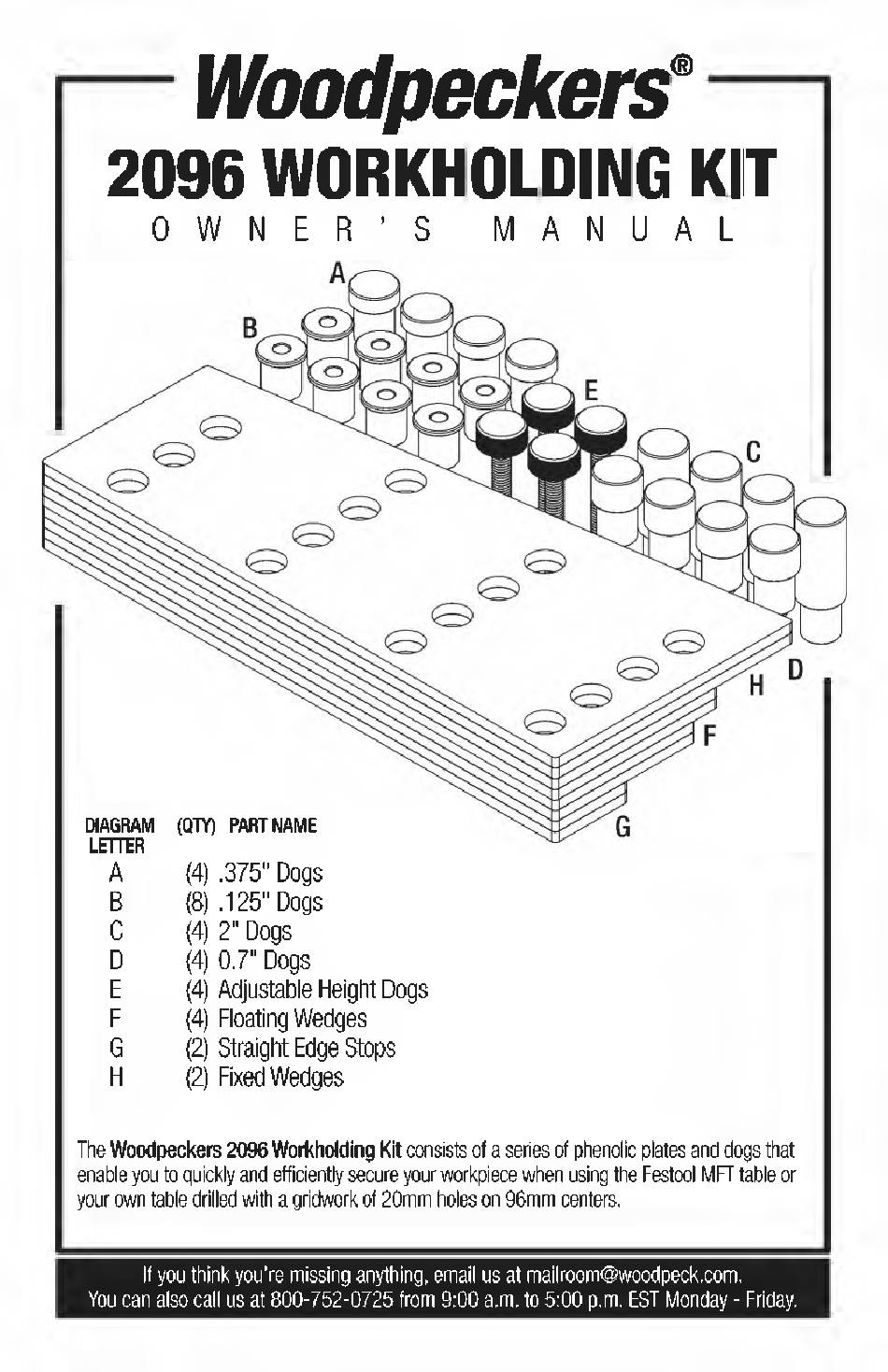

Woodpeckers 2096 WORKHOLDING KIT Owner's Manual

oodpeckers
096 WORKHOLDING KIT
OWNER ' S MANUAL
The Woodpeckers 096 Workholding Kit consists of a series of phenolic plates and dogs that
enable you to quickly and efficiently secure your workpiece when using the Festool MFT table or
your own table drilled with a gridwork of 20mm holes on 96mm centers.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
DIAGRAM
LETTER
(QTY)
PART NAME
(4) .375" Dogs
B
(8) .125" Dogs
C (4) 2" Dogs
D (4) 0.7" Dogs
E (4) djustable Height Dogs
F (4) Floating Wedges
G (2) Straight Edge Stops
H
(2) Fixed Wedges
