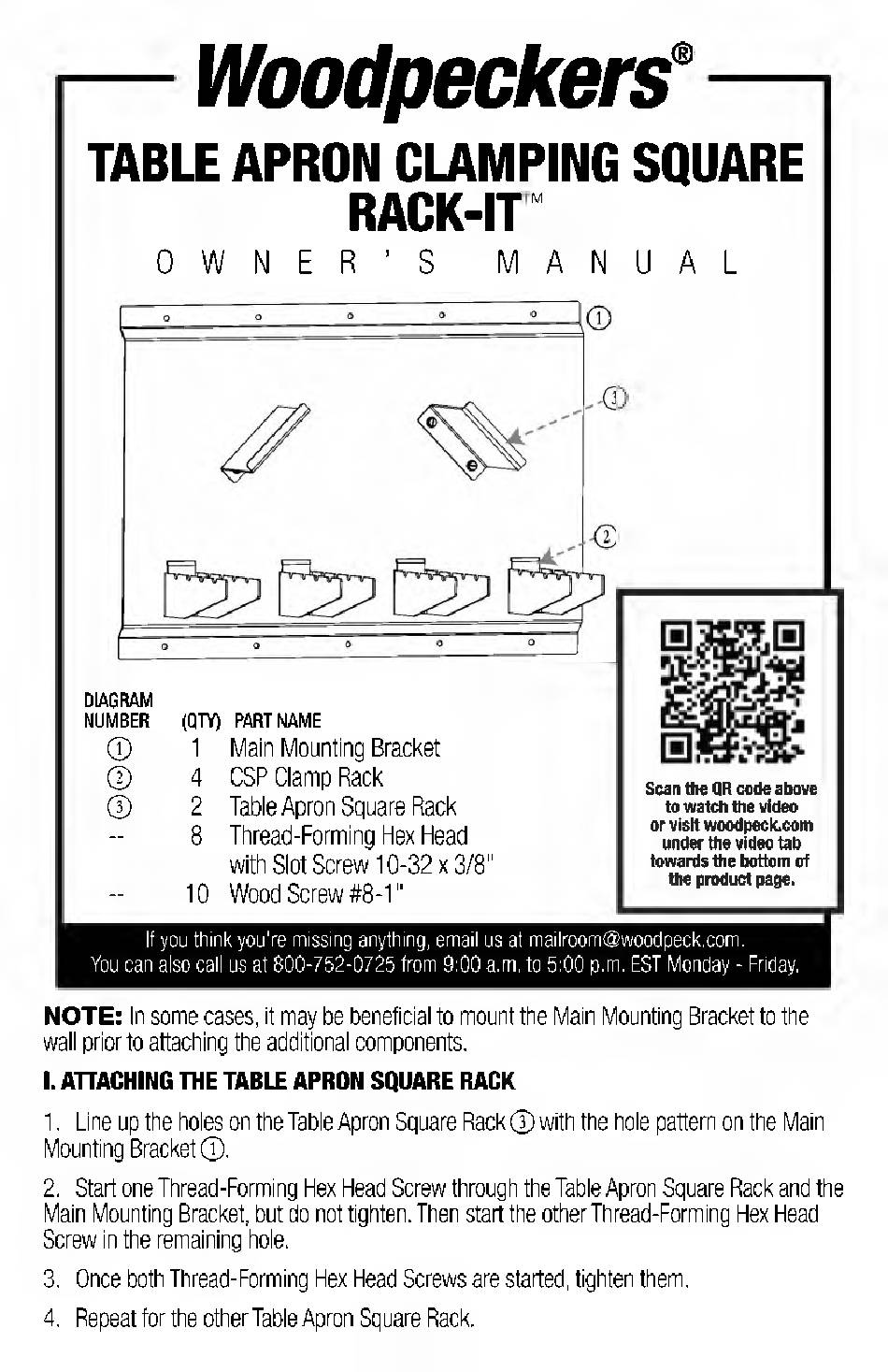

Woodpeckers RACK-IT TABLE APRON CLAMPING SQUARE Owner's Manual

oodpeckers
ABLE APRON CLAMPING SQUARE
RACK-I
OWNER'S MANUAL
DIAGRAM
NUMBER (Q Y) PAR NAME
1 1 Main Mounting Bracket
2 4 CSP Clamp Rack
3 2
Table Apron Square Rack
—
8
Thread-Forming Hex Head
with Slot Screw 10-32 x 3/8"
—
10 Wood Screw #8-1"
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab
towards the bottom of
the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
NO E: In some cases, it may be beneficial to mount the Main Mounting Bracket to the
wall prior to attaching the additional components.
1 . A ACHING HE ABLE APRON SQUARE RACK
1. Line up the holes on the Table Apron Square Rack 3 with the hole pattern on the Main
Mounting Bracket 1 .
2. Start one Thread-Forming Hex Head Screw through the Table Apron Square Rack and the
Main Mounting Bracket, but do not tighten. Then start the other Thread-Forming Hex Head
Screw in the remaining hole.
3. Once both Thread-Forming Hex Head Screws are started, tighten them.
4. Repeat for the other Table Apron Square Rack.
