Woodpeckers STAIR TREAD & SHELF GAUGE Owner's Manual

Woodpeckers STAIR TREAD & SHELF GAUGE Owner's Manual

Advertisement

TAIR TREAD & HELF GAUGE
WNER ' S
MANUAL
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.

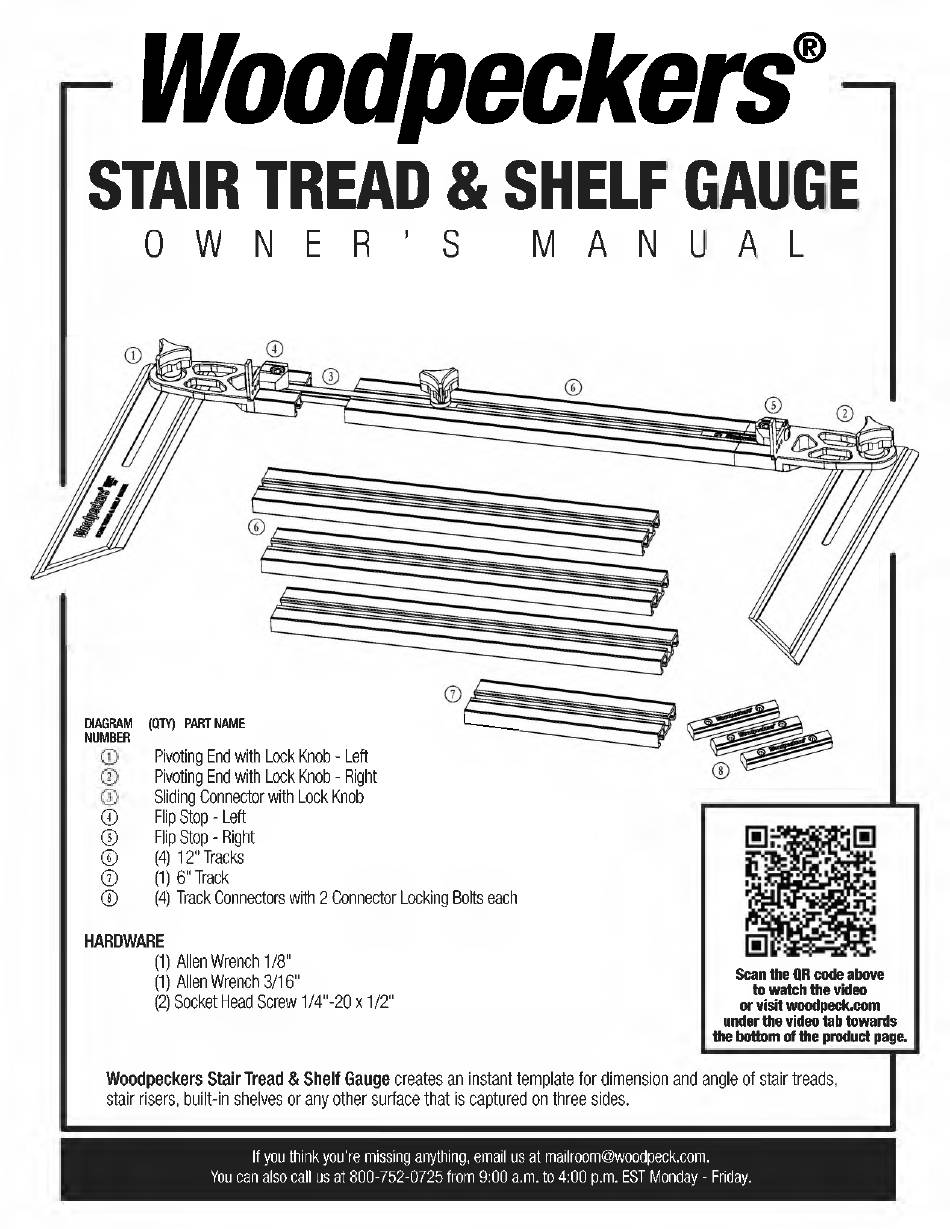

Woodpeckers tair Tread & helf Gauge creates an instant template for dimension and angle of stair treads,
stair risers, built-in shelves or any other surface that is captured on three sides.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRAM
NUMBER
(QTY) PART NAME
1
Pivoting End with Lock Knob - Left
2
Pivoting End with Lock Knob - Right
3
Sliding Connector with Lock Knob
Flip Stop - Left
5
Flip Stop - Right
6
(4) 12 " Tracks
7
(1) 6" Track
8
(4) Track Connectors with 2 Connector Locking Bolts each
HARDWy \RE
(1) Allen Wrench 1/8"
(1) Allen Wrench 3/16 "
(2) Socket Head Screw 1/4"-20 x 1/2"
