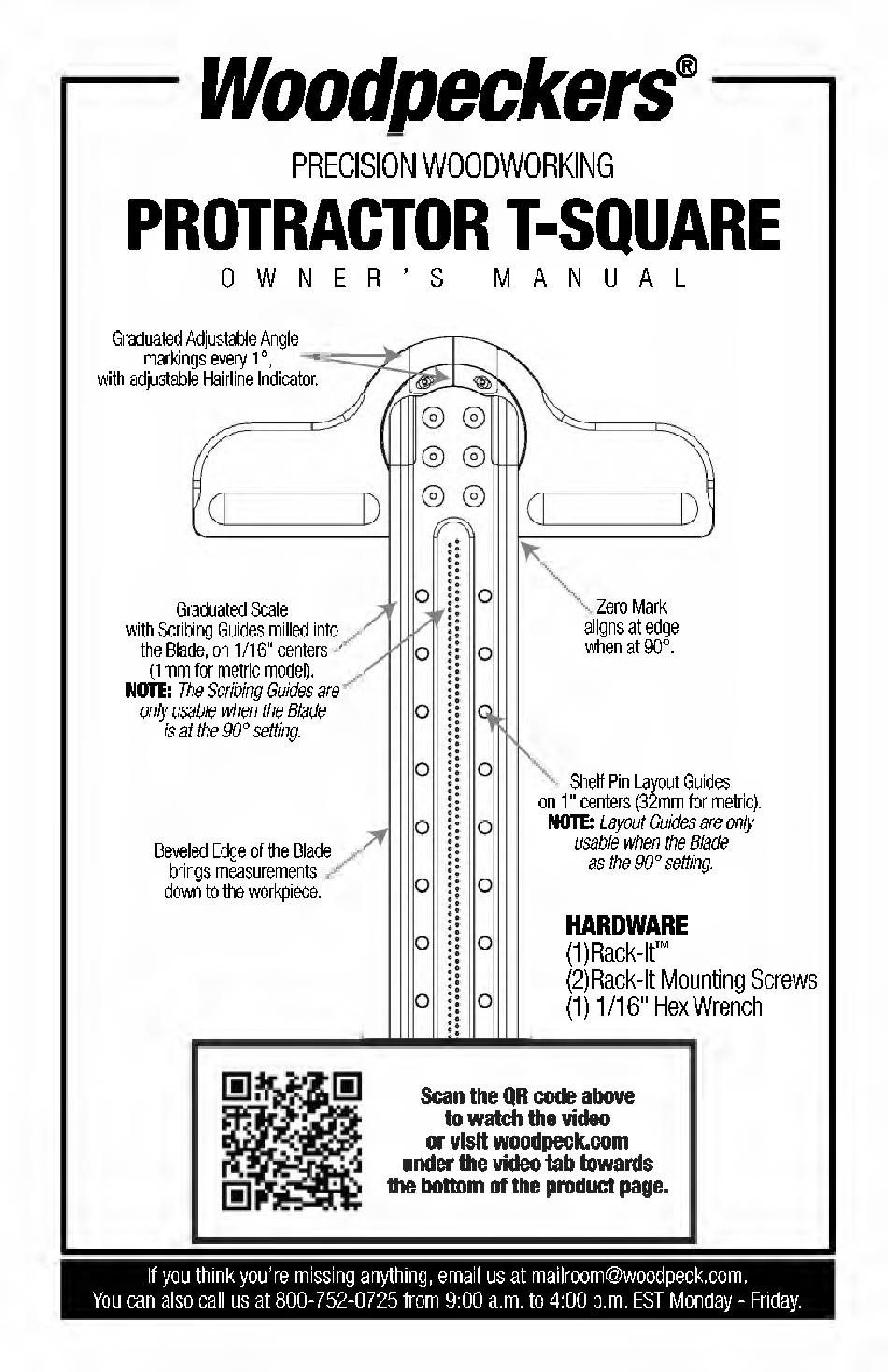

Woodpeckers PROTRACTOR T-SQUARE Owner's Manual

RECISION WOODWORKING
ROTRACTOR T-SQUARE
WNER ' S MANUAL
Graduated Adjustable Angle
markings every 1 d e g r e e ,
with adjustable Hairline Indicator.
Graduated Scale
with Scribing Guides milled into
the Blade, on 1/ 16 " centers
( 1m m f or metric model).
OTE:
he Scribing Guides are
only usable when the Blade
is at the 90° setting.
Zero Mark
aligns at edge
when at 90°.
Beveled Edge of the Blade
brings measurements
down to the workpiece.
Shelf in Layout Guides
on 1 " centers (32mm for metric).
OTE:
Layout Guides are only
usable when the Blade
as the 90° setting.

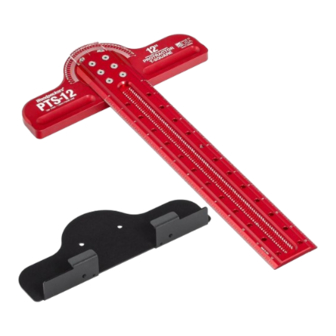

HARDWARE
(1)Rack-lt™
(2)Rack- It Mounting Screws
(1)1/ 16 " Hex Wrench
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you're missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
