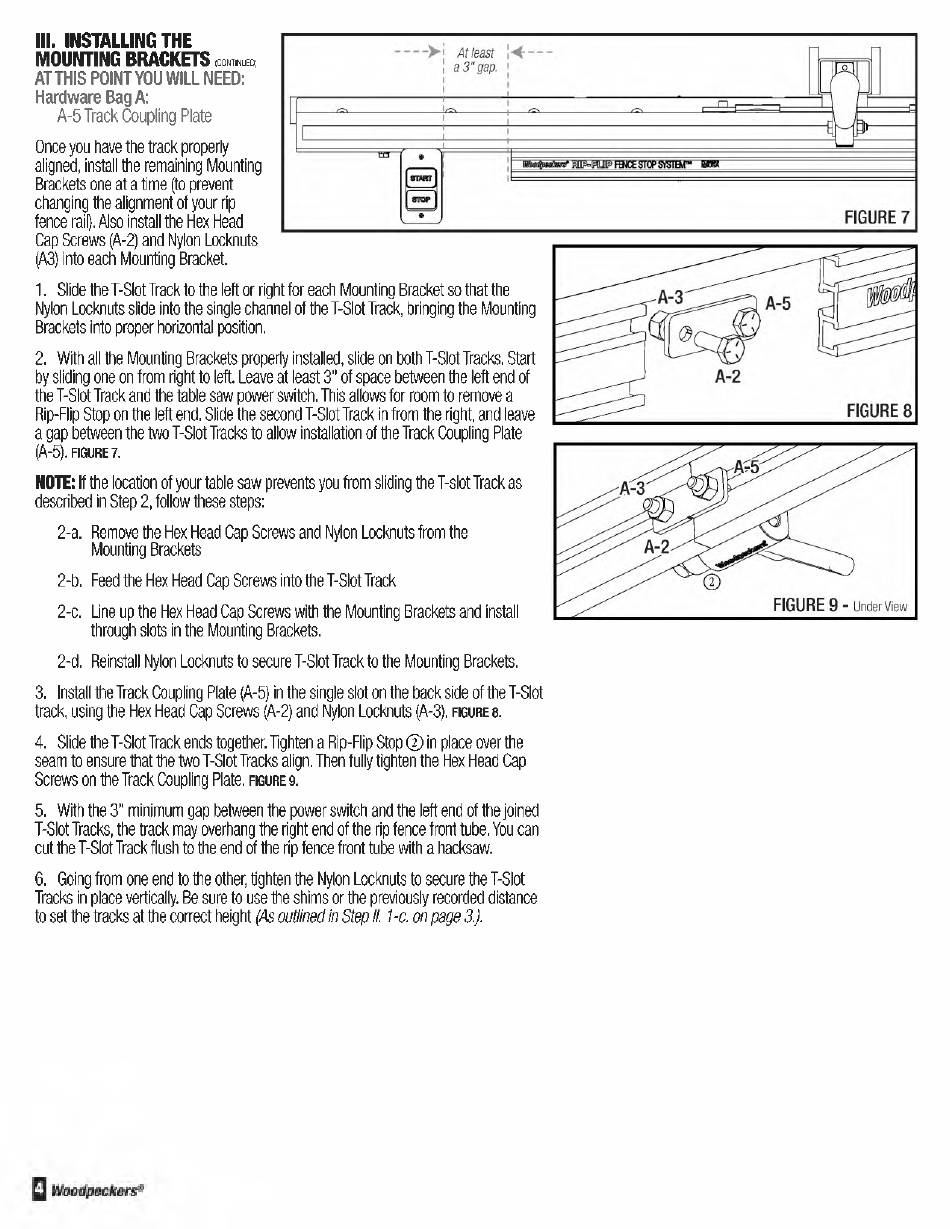

III. INSTALLING THE
MOUNTING BRACKETS
(
continued
)
AT THIS POINT YOU WILL NEED:
Hardware Bag A:
A-5 Track Coupling Plate
Once you have the track properly
aligned, install the remaining Mounting
Brackets one at a time (to prevent
changing the alignment of your rip
fence rail). Also install the Hex Head
Cap Screws (A-2) and Nylon Locknuts
(A3) into each Mounting Bracket.
1. Slide the T-Slot Track to the left or right for each Mounting Bracket so that the
Nylon Locknuts slide into the single channel of the T-Slot Track, bringing the Mounting
Brackets into proper horizontal position.
2. With all the Mounting Brackets properly installed, slide on both T-Slot Tracks. Start
by sliding one on from right to left. Leave at least 3" of space between the left end of
the T-Slot Track and the table saw power switch. This allows for room to remove a
Rip- lip Stop on the left end. Slide the second T-Slot Track in from the right, and leave
a gap between the two T-Slot Tracks to allow installation of the Track Coupling Plate
(A-5).
IGURE 7.
NOTE: If the location of your table saw prevents you from sliding the T-slot Track as
described in Step 2, follow these steps:
2-a. Remove the Hex Head Cap Screws and Nylon Locknuts from the
Mounting Brackets
2-b.
eed the Hex Head Cap Screws into the T-Slot Track
2-c. Line up the Hex Head Cap Screws with the Mounting Brackets and install
through slots in the Mounting Brackets.
2-d. Reinstall Nylon Locknuts to secure T-Slot Track to the Mounting Brackets.
3. Install the Track Coupling Plate (A-5) in the single slot on the back side of the T-Slot
track, using the Hex Head Cap Screws (A-2) and Nylon Locknuts (A-3).
igure
8 .
4. Slide the T-Slot Track ends together. Tighten a Rip- lip Stop 2 in place over the
seam to ensure that the two T-Slot Tracks align. Then fully tighten the Hex Head Cap
Screws on the Track Coupling Plate .
igure
9.
5. With the 3" minimum gap between the power switch and the left end of the joined
T-Slot Tracks, the track may overhang the right end of the rip fence front tube. You can
cut the T-Slot Track flush to the end of the rip fence front tube with a hacksaw.
6. Going from one end to the other, tighten the Nylon Locknuts to secure the T-Slot
Tracks in place vertically. Be sure to use the shims or the previously recorded distance
to set the tracks at the correct height (As outlined in tep II. 1 -c. on page 3.).
