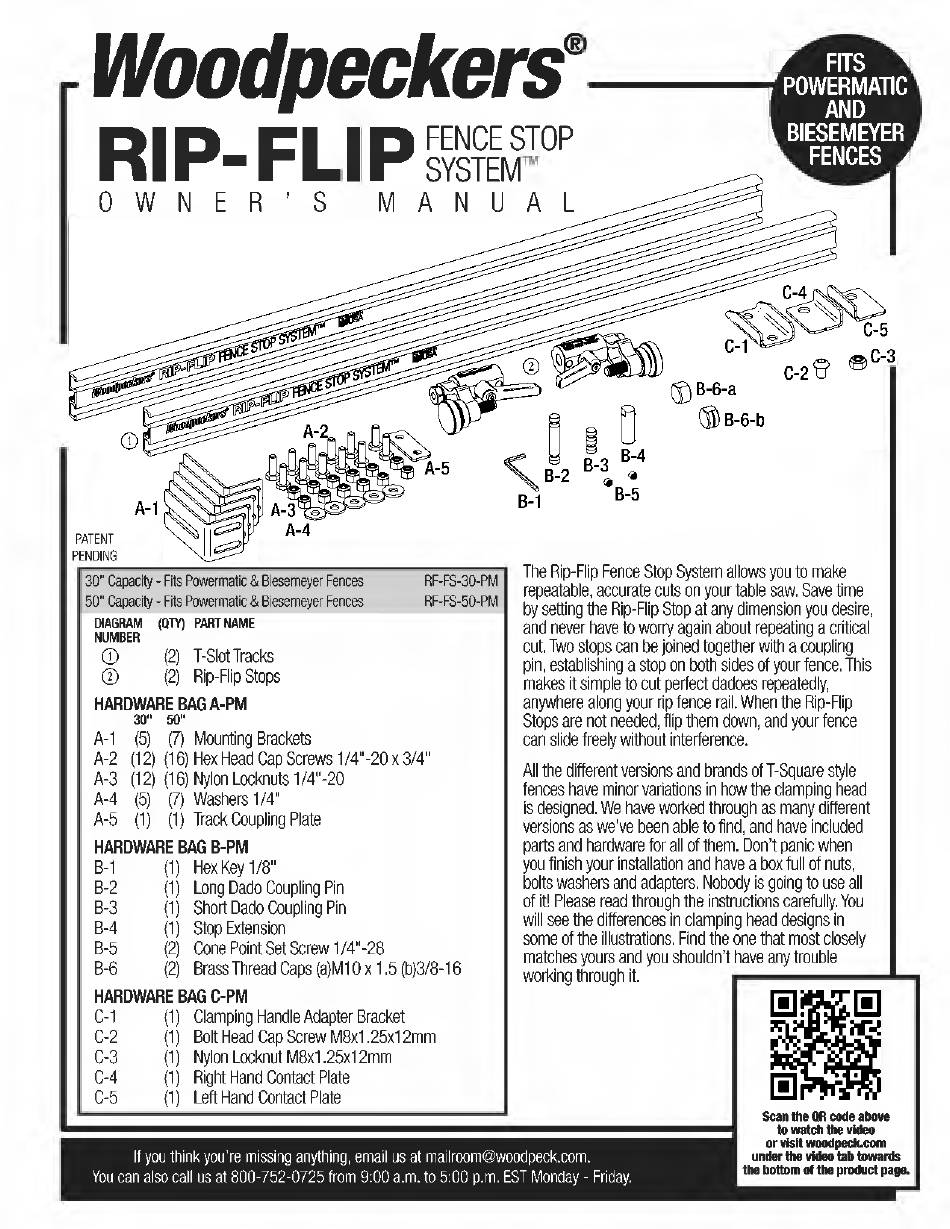

Woodpeckers RIP-FLIP FENCE STOP SYSTEM Owner's Manual

oodpeckers
ENCE STOP
SYSTEM
ITS
POWERMATIC
AND
BIESEMEYER
ENCES
IP-FLIP
ATENT
ENDING
0" Capacity - Fits Powermatic & Biesemeyer Fences
50" Capacity - Fits Powermatic & Biesemeyer Fences
RF-FS- 0-PM
RF-FS-50-PM
The Rip- lip ence Stop System allows you to make
repeatable, accurate cuts on your table saw. Save time
by setting the Rip- lip Stop at any dimension you desire,
and never have to worry again about repeating a critical
cut. Two stops can be joined together with a coupling
pin, establishing a stop on both sides of your fence. This
makes it simple to cut perfect dadoes repeatedly,
anywhere along your rip fence rail. When the Rip- lip
Stops are not needed, flip them down, and your fence
can slide freely without interference.
All the different versions and brands of T-Square style
fences have minor variations in how the clamping head
is designed. We have worked through as many different
versions as we ' ve been able to find, and have included
parts and hardware for all of them. Don ' t panic when
you finish your installation and have a box full of nuts,
bolts washers and adapters. Nobody is going to use all
of it! Please read through the instructions carefully. You
will see the differences in clamping head designs in
some of the illustrations. ind the one that most closely
matches yours and you shouldn ' t have any trouble
working through it.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
Scan the Q code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
OWNER ' S MANUAL

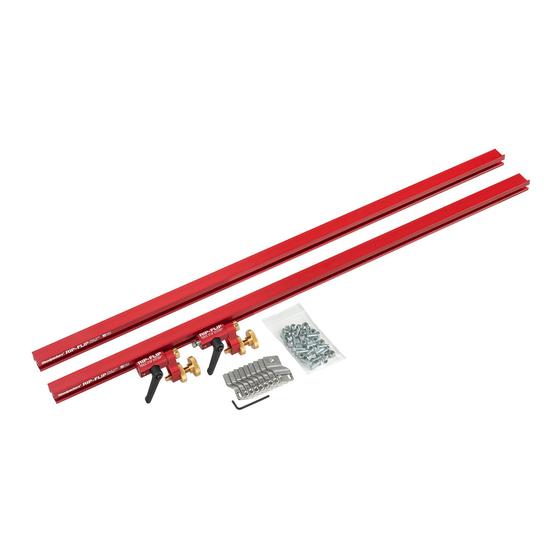

DIAGRAM (QTY) PART NAME
NUMBER
2 (2) T-Slot Tracks
2 (2) Rip- lip Stops
HARDWARE BAG A-PM
30" 50"
A-1 (5)
(7) Mounting Brackets
A-2 (12) (16) Hex Head Cap Screws 1/4"-20 x 3/4"
A-3 (12) (16) Nylon Locknuts 1 /4"-20
A-4 (5) (7) Washers 1/4"
A-5 (1) (1) Track Coupling Plate
HARDWARE BAG B-PM
B-1 (1) Hex Key 1/8"
B-2 (1) Long Dado Coupling Pin
B-3 (1) Short Dado Coupling Pin
B-4 (1) Stop Extension
B-5 (2) Cone Point Set Screw 1/4"-28
B-6 (2) BrassThread Caps(a)M10 x 1.5 (b) 3/8-16
HARDWARE BAG C-PM
C-1 (1) Clamping Handle Adapter Bracket
C-2 (1) Bolt Head Cap Screw M8x1 .25x1 2mm
C-3 (1) Nylon Locknut M8x1 .25x1 2mm
C-4 (1) Right Hand Contact Plate
C-5 (1) Left Hand Contact Plate
