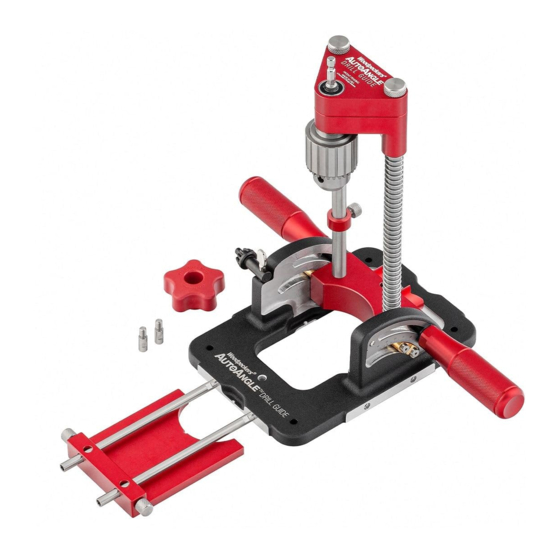

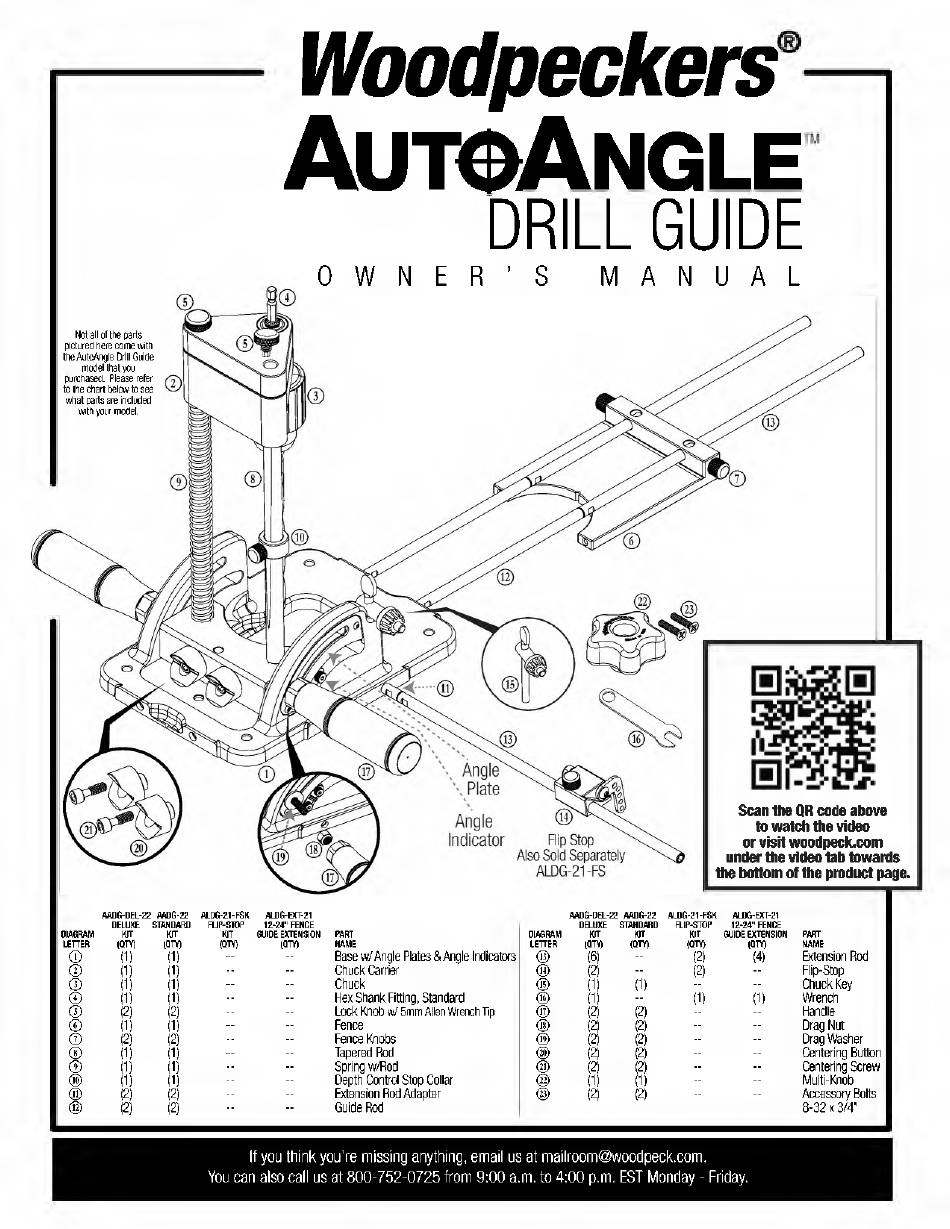

Woodpeckers AUTOANGLE DRILL GUIDE Owner's Manual

oodpeckers
uto ngle
RILL GUI E
ot all of the parts
pictured here come with
the AutoAngle Drill Guide
model that you
purchased. Please refer
to the chart below to see
what parts are included
with your model.
DI GR M
LETTER
DG-DEL-22
DELUXE
KIT
(QTY)
DG-22
ST ND RD
KIT
(QTY)
LDG-21-FSK
FLIP-STOP
KIT
(QTY)
LDG-EXT-21
12-24" FENCE
GUIDE EXTENSION
(QTY)
P RT
N ME
1 (1) (1) -- -- Base w/ Angle Plates & Angle Indicators
2 (1) (1) -- -- Chuck Carrier
3 (1) (1) -- -- Chuck
4 (1) (1) -- -- Hex Shank Fitting, Standard
5 (2) (2) -- -- Lock Knob
w/ 5mm Allen Wrench Tip
6 (1) (1) -- -- Fence
7 (2) (2) -- -- Fence Knobs
8 (1) (1) -- -- Tapered Rod
9 (1) (1) -- -- Spring w/Rod
10
(1) (1) -- -- Depth Control Stop Collar
11 (2) (2) -- -- Extension Rod Adapter
12 (2) (2) -- -- Guide Rod
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DI GR M
LETTER
DG-DEL-22
DELUXE
KIT
(QTY)
DG-22
ST ND RD
KIT
(QTY)
LDG-21-FSK
FLIP-STOP
KIT
(QTY)
LDG-EXT-21
12-24" FENCE
GUIDE EXTENSION
(QTY)
P RT
N ME
13 (6) -- (2) (4) Extension Rod
14 (2) -- (2) -- Flip-Stop
15 (1) (1) -- -- Chuck Key
16 (1) -- (1) (1) Wrench
17 (2) (2) -- -- Handle
18 (2) (2) -- -- Drag ut
19 (2) (2) -- -- Drag Washer
20 (2) (2) -- -- Centering Button
21 (2) (2) -- -- Centering Screw
22
(1) (1) -- -- Multi-Knob
23 (2) (2) -- -- Accessory Bolts
8-32 x 3/4"
OW ER ' S MA UAL
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
