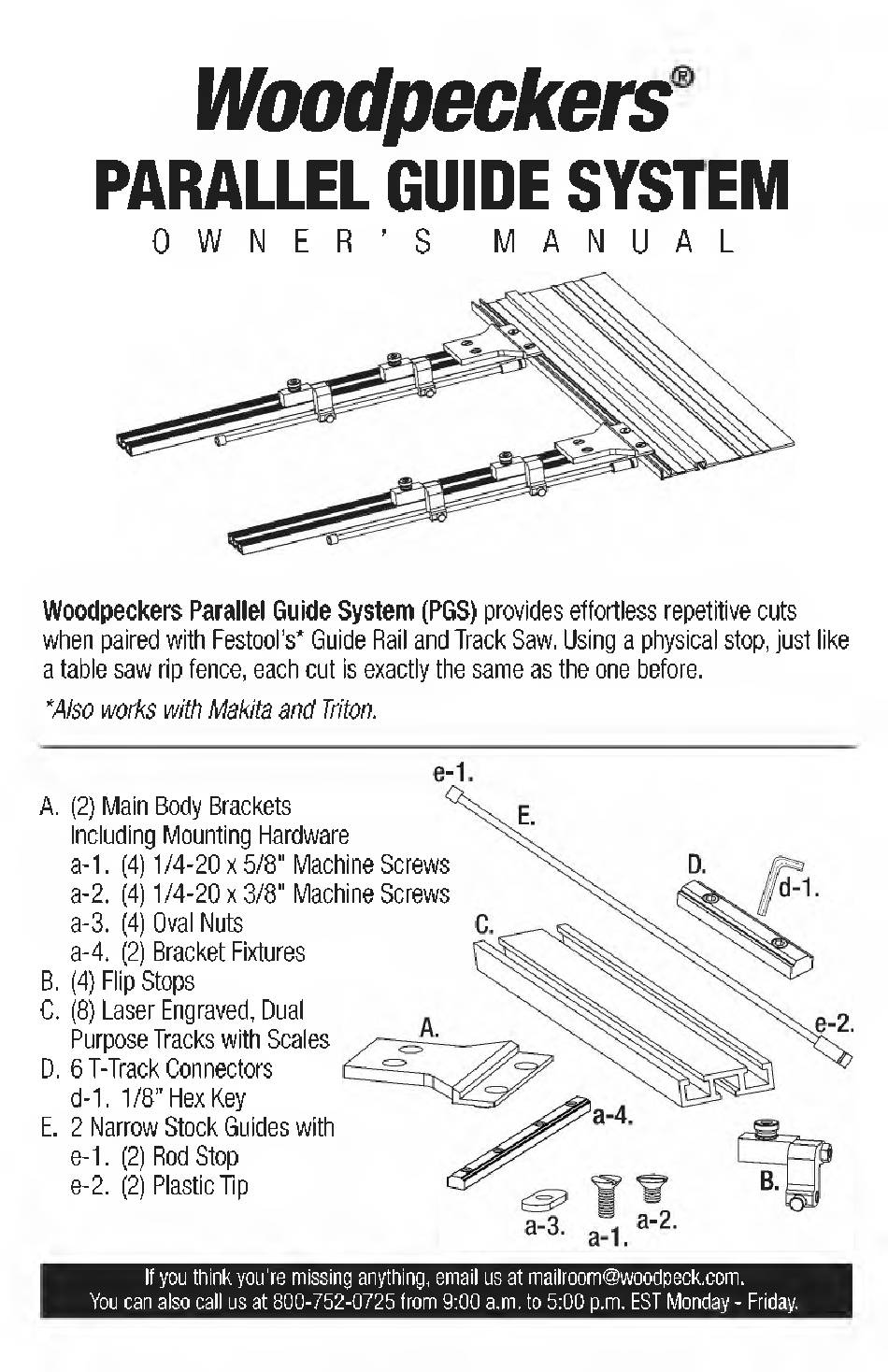

Woodpeckers PARALLEL GUIDE SYSTEM Owner's Manual

oodpeckers
ARALLEL GUIDE SYSTEM
WNER ' S MANUAL

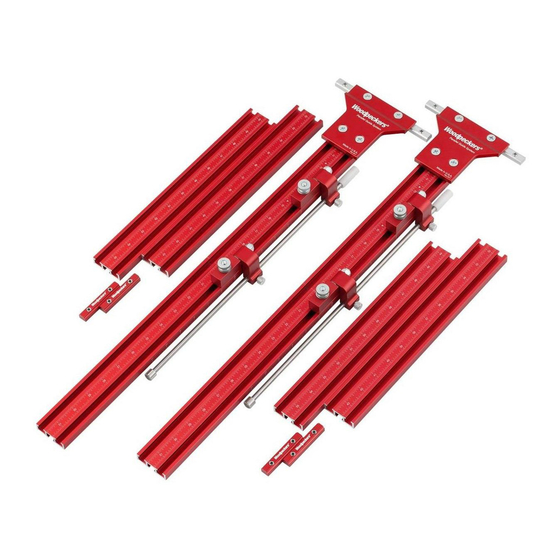

oodpeckers Parallel Guide System (PGS) provides effortless repetitive cuts
when paired with Festool ' s* Guide Rail and Track Saw. Using a physical stop, just like
a table saw rip fence, each cut is exactly the same as the one before.
l so works with Makita and Triton.
A. (2) Main Body Brackets
Including Mounting Hardware
a- 1 . (4) 1/4-20 x 5/8" Machine Screws
a-2. (4) 1/4-20 x 3/8" Machine Screws
a-3. (4) val Nuts
a-4. (2) Bracket Fixtures
B. (4) Flip Stops
C. (8) Laser Engraved, Dual
Purpose Tracks with Scales
D. 6 T-Track Connectors
d-1. 1/8" Hex Key
E. 2 Narrow Stock Guides with
e-1. (2) Rod Stop
e-2. (2) Plastic Tip
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
