  • Page 1 User's manual JOHANNUS JOHANNUS JOHANNUS JOHANNUS Monarke...
  • Page 3 JOHANNUS Orgelbouw. The information in this document is subject to change without notice and should not be considered a commitment by Johannus Orgelbouw b.v. No responsibility is assumed for any error which may be appear in this document.
  • Page 4 Usually this pertains to functions which you, the client, commissioned to have altered. As Monarke instruments are continually being developed as a result of new wishes of clients, a manual like this cannot possibly keep up with this and you may look for the description of a certain function in vain.

  • Page 5: Table Of Contents

    Monarke-model "Van Eyck" ........
  • Page 6 (32')-stop pistons ..........28 Monarke...
  • Page 7 General crescendo system with 7-segment display ....48 General crescendo system with LCD ....... 49 Monarke JOHANNUS...
  • Page 8 Reeds ............. 66 Monarke...

  • Page 9: An Overview

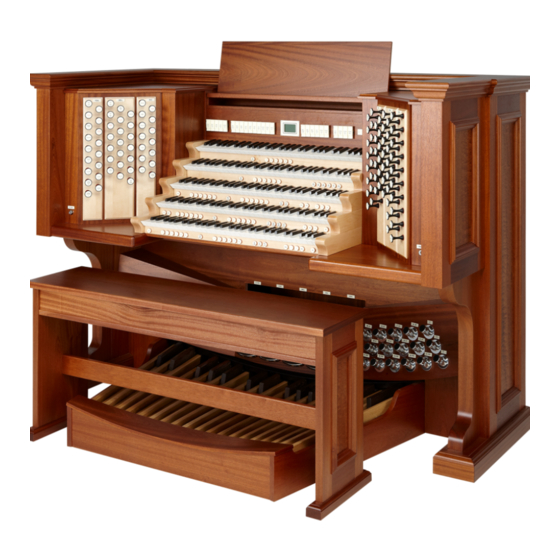

    An overview Monarke models There are several Monarke models which may have been the basic model to the development of your particular instrument. Below follows a brief description of these basic models. In this user’s manual we may refer back to one of these basic models when describing certain controls.

  • Page 10: Monarke Model "Vermeer

    The entire cabinet (or console with loudspeaker front) is designed by you, the client, in consultation with JOHANNUS Orgelbouw. As all the controls described in this manual may occur in a Monarke Custom, this model will not be referred to in this manual.

  • Page 11: The Organ Bench

    2. To fit the pedalboard well, it may be necessary to tilt the instrument a little backward. 3. Shift the pedalboard as close as possible against the black pedalboard panel Instruments with an AGO pedalboard allow the pedalboard to be fixed to the cabinet with two brass pins supplied. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 12: The Music Desk

    Fixed music desk This type of music desk is supplied only with the Monarke model "Van Eyck". This music desk rests partly between the stop consoles of the main cabinet and the two outer loudspeaker boxes. To enable the main cabinet and the loudspeaker boxes to form a unit, the music desk must be fixed.

  • Page 13: Horizontally Adjustable Music Desk

    Horizontally and vertically adjustable music desk Another music desk featured by the Monarke models "Vermeer" and "Van Gogh" is a both horizontally and vertically adjustable one. This music desk can be horizontally adjusted by pulling it towards you or pushing it away In either case the music desk is automatically blocked at the tips.

  • Page 14: Locking Up

    Locking up The Monarke models "Vermeer" and "Van Gogh" have a lockable console. Warning You can lock the organ without using of the key. However, the key is necessary to open the organ. Therefore, always take care that the key is not left within the console before...
  • Page 15 3. Lift the front part with the middle part of the top lid to so far, that you can keep your other hand between the middle and back parts. Now carefully pull the entire top lid to the front. Monarke JOHANNUS JOHANNUS...

  • Page 16: Stops

    ! Lighted rocker tab ! Movable drawstop Wooden drawstops The Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck" are usually fitted with wooden drawstops. A stop can be turned on (activated) by pulling a stop. A stop can be turned off (deactivated) by pushing in a stop.

  • Page 17: Lighted Rocker Tabs

    Lighted rocker tabs On the Monarke models "Vermeer" and "Van Gogh" the accessories may be designed as lighted rocker tabs. After activating or deactivating a stop, a lighted rocker tab springs back to the central position. For that reason each stop has a little lamp which lights up as soon as the stop is activated.

  • Page 18: Set Up

    ! Behind the pedalboard light cover (Monarke models "Positief" and "Van Eyck"). ! Behind the music desk light cover (Monarke models "Positief" and "Van Eyck") ! Right next to the keyboards, under or next to one of the stop groups (Monarke models "Vermeer" and "Van Gogh").

  • Page 19: Pedalboard Lighting And Music Desk Lighting

    Usually the pedalboard lighting and / or the music desk lighting is switched on or off when the instrument is switched on or off. Your instrument may, however, have been fitted with a separate on / off switch for the pedalboard lighting and / or music desk lighting. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 20: The Console In Detail

    To achieve a good symmetry between the left and right stop console and utilizing the space optimally, the Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck" are fitted with one of the (BDO) order of stops as shown in the diagram on the next page:...
  • Page 21 (tacet stops). Possibly your instrument can be extended later by replacing these stops with speaking stops. The Monarke models "Vermeer" and "Van Gogh" know great variation in order of stops. Below some examples.

  • Page 22: Position Of Accessories

    On Monarke models with only rocker tabs over the keyboards, you may find the following order. pedal great swell accessories pedal great swell accessories pedal choir great swell Position of accessories The above examples show that the position of the accessories may vary quite a bit.

  • Page 23: Order Of Expression Pedals

    Order of expression pedals The positions of the expression pedals have also been laid down in the BDO- and AGO- standards. Here are some examples of the order of expression pedals. swell expr. ped. for swell div. Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 24: Thumb Pistons

    Lighted thumb pistons are finished as switches which spring back to the central position after switching on or off. In each thumb piston a lamp has been fitted that comes on as soon as it is activated. Monarke JOHANNUS JOHANNUS...

  • Page 25: Lighted Thumb Piston)

    Exceptions are the couplers and the tremulants if the FA-piston is pressed, and the stops Chorus, Intonation 2 and the MIDI-stops. N.B. On instruments with wooden drawstops (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck") the 0-piston has the same function as the HR-piston. The description of the HR-piston can be found further on in this chapter.

  • Page 26: And

    If there is not enough space on the stop consoles or under the music desk (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck") the coupler stops can also be (lighted) thumb pistons located under the keyboards.

  • Page 27: Hand Registration (Lighted Thumb Piston)

    HR = Hand registration (lighted thumb piston) The HR-piston is found only on instruments with wooden drawstops (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck"). By pressing this thumb piston, you change from a fixed (preset) or a free (capture) combination to hand registration.

  • Page 28: Non-Lighted Thumb Piston)

    HR (non-lighted thumb piston) The HR-piston is only found on instruments with wooden drawstops (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck"). By pressing this thumb piston, you change from a fixed (preset) or a free (capture) combination to hand registration. As soon as you press the HR-piston, only the manually switched on (drawn) stops will sound.

  • Page 29: Mt = Mean-Tone

    So recalling a stored capture combination always has to be done by means of two pistons. By means of the sequence pistons the entire memory can be run through consecutively. With the SEQ– to lower memory locations and with the SEQ+ to a higher memory location. Monarke JOHANNUS JOHANNUS...

  • Page 30: Set

    S/S-piston all the expression pedals can be coupled to the expression pedal of the swell division. By pressing this thumb piston, the volume of all the divisions can be set simultaneously with one expression pedal, the swell division expression pedal. Monarke JOHANNUS JOHANNUS...

  • Page 31: Trans. = Transposer

    If there is not enough space on the stop consoles or under the music desk (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck") the tremulant stops casalso be (lighted) thumb pistons located under the keyboards.

  • Page 32: Manual Couplers

    Apart from the sub and super couplers between the manuals, sub and super couplers functioning within the same manual (intramanual couplers) may be fitted. When an instrument has sub and super couplers besides the usual couplers, the difference between the various couplers will be marked with a footage indication.. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 33: Cantus Firmus

    Normally , the tremulants are designed as stops . If there is not enough space on the stop consoles or under the music desk (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck") tremulant stops may also be (lighted) thumb pistons placed under the keyboards.

  • Page 34: Other Accessories

    When the sub coupler SWELL-SWELL 16' and the super coupler SWELL-SWELL 4' of the swell is switched on, and the stop UNISONO OFF is not on, pressing a key will produce three tones. The original tone, a tone sounding an octave lower and a tone sounding an octave higher. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 35: Werckmeister Iii

    Switching on the accessory, activates the wind pressure stabilizer. This means that no wind pressure variations will occur. On your instrument this accessory may be designed as a stop or as a thumb piston. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 36: Toe Pistons

    Displays Your instrument may be fitted with one of the following displays. 7-segment display A 7-segment display is a 2-digit display. Each of the two digits consists of 7 segments (hence: 7-segment display). Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS User's Manual...

  • Page 37: Lcd-Display

    M e m : V o l : 1 2 T u n e : 4 4 0 T r a n s : C r e s c e n d o : O f f Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 38: Expression Pedal Indicators

    In the example below, the expression pedal for the choir is at position 5, the expression pedal for great + pedal at position 10, the expression pedal for the swell at position 3 and the expression pedal for the solo at position 9. POSITIEF HOOFDWERK ZWELWERK SOLO Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS User's Manual...

  • Page 39: Memory Lock

    The name swell indicates this in fact. Just like a pipe organ (Monarke models "Van Rhijn", "Gothique", "Positief" and "Van Eyck") the instrument can be fitted with one expression pedal for the swell division.

  • Page 40: General Volume

    2. Press thumb piston VOL.. As long as the lamp in thumb piston VOL. keeps on burning the volume setting can be changed 3. Adjust the required volume by pressing the – or the + piston once or several times. Monarke JOHANNUS JOHANNUS...

  • Page 41: Volume Acoustics

    This rotary control has a central position indication. This means that this control noticable snaps into the central position when turning. This central position is meant to set the instrument (with the selector switch "TRANSPOSER" in position 0) at A=440 Hz. Monarke JOHANNUS JOHANNUS JOHANNUS...
  • Page 42 Storing into the memory is possible only as long as the lamp in thumb piston TUNE is on. After a few seconds the lamps of both thumb pistons TUNE and the – or the + piston will go off automatically. Monarke JOHANNUS JOHANNUS...

  • Page 43: Transposer

    3. After a few seconds the lamps of both thumb pistons TRANS. and the – or the + piston will go off automatically. The transposer setting is not stored into the memory now and will be lost as soon as the instrument is switched off. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 44: Acoustics

    The volume of the acoustic effect can be adjusted continuously with the rotary control. To switch off the acoustic effect entirely, the control must be turned completely to the left Acoustics (length) A selection from three different acoustic lengths can be made with the selector switch. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 45: External Connections

    MIDI MOD output (MIDI output for connecting a module). MIDI SEQ When your instrument is fitted with programmable MIDI, the MIDI OUT is changed into a MIDI SEQ output (MIDI output for connecting a sequencer). Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 46: Aux In

    This output is meant for connecting an external amplifier (stereo). EXT. REV. The EXTERN REVERB connector is especially meant for connecting a JOHANNUS external acoustics. This is a system that, with four separate loudspeaker boxes, imitates the spacial effect of a concert hall or a cathedral in the space where the instrument is placed.
  • Page 47 On large instruments each division may have its own set of loudspeaker connectors. With this, not all the loudspeaker connectors have to be connected fully. On e.g. an instrument with six amplifiers per division, it is possible that for each division 1½ loudspeaker connector is used. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 48: Choice Of Temperament

    This repertoire needs, in fact, a mean-tone temperament, which adds an extra dimension. In our equal temperament this repertoire sounds a lot shallower and an essential dimension is lost. This temperament comes out well when the thumb piston MT is pressed, and the baroque intonation is selected. Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 49: Using The Capture System

    1. ‘Open’ the memory by turning key switch MEMORY LOCK a quarter of a turn to the right. 2. Select the required registration to be stored into the memory. 3. Select a memory group (e.g. M2). 4. Press SET (hold it) and next select the memory location (press e.g. piston 3). Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 50: Lighted Capture System With 7-Segment Display

    ‘closed’ again. 8. Write the just programmed capture combination (e.g. M6-3) on the piece of music in which this registration is to be used. Your personal registration is now stored into memory group 6 at place 3. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 51: Lighted Capture System With Lcd

    ! Non-lighted capture system ! Lighted capture system with 7-segment display ! Lighted capture system with LCD Now follow the descriptions for recalling a capture combination for each of the three kinds of capture systems. Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 52: Non-Lighted Capture System

    T u n e : 4 4 0 T r a n s : C r e s c e n d o : O f f 3. Next select the required memory location (press piston 3). Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 53: Using The General Crescendo

    M e m : V o l : 1 2 T u n e : 4 4 0 T r a n s : C r e s c e n d o : 1 2 Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 54: Changing Stop Combinations General Crescendo

    (taking the key from the switch, if necessary). The lamp in the SET-piston will go off now as a sign that the general crescendo memory is ’closed’ again. 8. Press again the PG(M)-piston. The general crescendo can again be used normally. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 55: General-Crescendosystem With Lcd

    (taking the key from the switch, if necessary). The lamp in the SET- piston will go off now as a sign that the general crescendo memory is ‘closed’ again. 7. Press again the PG(M)-piston. The general crescendo is ready for normal use again. Monarke JOHANNUS JOHANNUS...

  • Page 56: Resetting Standard Stop Combinations General Crescendo

    (taking the key from the switch, if necessary). The lamp in the SET- piston will go off now, as a sign that the general crescendo memory is ‘closed’ again. 6. Again press the PG(M)-piston. The general crescendo is now ready for normal use again. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 57: General Crescendo System With Lcd

    (taking the key from the switch, if necessary). The lamp in the SET- piston will go off now, as a sign that the general crescendo memory is ‘closed’ again. 6. Again press the PG(M)-piston. The general crescendo is now ready for normal use again. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 58: Application Of Midi

    In addition, it is a description of the way in which music and sound are translated and in which communication takes place between devices equipped with MIDI-functionality. The MIDI-codes which the Monarke instrument can transmit, tell e.g. which key has been pressed.

  • Page 59: Programmable Midi

    Programming (Hand registration) Items for programming the MIDI-stops (switches) are: ! Key switch MEMORY LOCK ! Thumb pistons – and + ! Display ! SET-piston ! PGM-piston ! MIDI-stops Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS User's Manual...

  • Page 60: Programming Midi-Stops With 7-Segment Display

    The numbers from 1 to 99 inclusive are shown in a normal way. – The numbers from 100 to 128 inclusive are shown with a dot between the two digits. – The dot indicates the hundred. Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 61: Programming Midi-Stops With Lcd

    4. Press the PGM-piston. The display will show the text below: M i d i P r o g r a m V o i c e : C h a n n e l : Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...
  • Page 62 (taking the key from the switch, if necessary). The lamp in the SET-piston will go off now, as a sign that the memory is ‘closed’ again. 12. After programming, switch the PGM-piston off, by pressing it again. Monarke JOHANNUS JOHANNUS...

  • Page 63: Programming (Into The Capture System)

    By pressing the – or the + piston once or several times, now select the channel that is to be assigned to the MIDI-stop to be programmed. The selected channel (from 1 to 16 inclusive) is shown on the display. Monarke JOHANNUS JOHANNUS...
  • Page 64 (taking the key from the switch, if necessary). The lamp in the SET-piston will now go off, as a sign that the memory is ‘closed’ again. 12. After programming, switch off the PGM-piston by pressing it again. Monarke JOHANNUS JOHANNUS...

  • Page 65: Programming Midi-Stops With Lcd

    (e.g. 40) is indicated on the display. M i d i P r o g r a m S w e l l V o i c e : C h a n n e l : Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS User's Manual...

  • Page 66: Programming Several Midi-Stops Into The Capture System

    Select with the thumb pistons – and + the channel for MIDI SWELL 2 (this is now the MIDI-stop with the lowest number). 10. Briefly press the SET-piston. 11. Select with the thumb pistons – and + the patch number for MIDI SWELL 2. Monarke JOHANNUS JOHANNUS JOHANNUS...
  • Page 67 15. Briefly press the SET-piston. 16. Select with the thumb pistons – and + the patch number for MIDI PEDAL 3. 17. Briefly press the SET-piston. The settings for MIDI PEDAL 3 will now be programmed. 18. Switch PGM off. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 68: Sound Reproduction Systems

    External double reproduction system In this way of reproduction all the (or nearly all the) channels / loudspeakers are designed double. With a three-position switch you can choose between reproduction via the one, the other or both fronts. Monarke JOHANNUS JOHANNUS JOHANNUS...

  • Page 69: Internal With External Reproduction System

    The division concerned can be switched from the main front to e.g. a front behind the choir, by means of a stop or a switch ANTIPHONAL. Monarke JOHANNUS JOHANNUS...

  • Page 70: Maintenance

    If the labia of the pipes are gold plated, they should not be touched dusted or sponged either. This will cause the thin layer of gold paint on the labia to be damaged irreparably. Monarke JOHANNUS JOHANNUS...

  • Page 71: Warranty

    When you purchased your instrument, you were given a certificate of warranty. Read the terms carefully and mail the bottom part of the certificate to JOHANNUS Orgelbouw b.v. at Ede, The Netherlands as soon as possible. Again we wish to draw your attention to the fact that alterations made to the instrument or unexpert treatment may cause the warranty to be nullified.

  • Page 72: Midi Implementation Chart

    MIDI Implementation chart JOHANNUS Organ Date: Nov. 1999 Monarke MIDI Implementation Chart Version 1.00 Functions Transmitted Recognized Remarks See MIDI specs See MIDI specs See MIDI specs Basic Default See MIDI specs See MIDI specs Channel Changes Default Mode 3...

  • Page 73: Midi Specs

    Program changes (transmitted) Depends on number and order of stops for organs without programmable MIDI. 1-127 for organs with programmable MIDI. Program changes (recognized) Depends on number and order of stops for organs without programmable MIDI. Monarke JOHANNUS JOHANNUS JOHANNUS JOHANNUS...

  • Page 74: Registration

    Bassoon, Trumpet, Schalmey, etc. belong to the reeds with a long funnel-shaped resonator. Fagotto, Dulciana, Krummhorn, etc. belong to the group with a cylindrical resonator. Regal, Vox Humana and Rankett belong to the group with a short resonator, etc. Monarke JOHANNUS JOHANNUS...
