BodyCraft EXP Series Owner's Manual

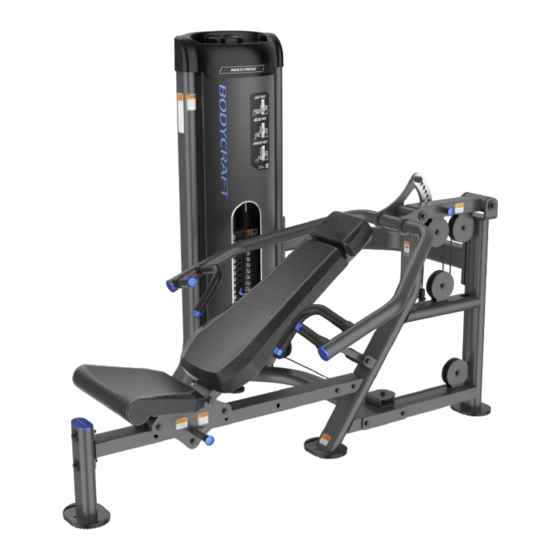

Dual multi-press (dmp)
Hide thumbs
Also See for EXP Series:
- Owner's manual (50 pages) ,
- Assembly manual (34 pages) ,
- Operation manual (26 pages)
Table of Contents
Advertisement
Quick Links
Dual Multi-Press (DMP)
For the Owner's Manual
Assembly STEPS in
FULL COLOR
& additional information,
scan this QR code.
Open your Camera
App and point it at
the QR Code
Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
Owner's Manual
DMP_OM v1.2
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BodyCraft EXP Series
Summary of Contents for BodyCraft EXP Series
- Page 1 App and point it at the QR Code Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at: https://www.bodycraft.com/product-registration/ Owner’s Manual DMP_OM v1.2...
- Page 2 Thank you for selecting BODYCRAFT. Your choice reflects a wise investment in you and your facility. We hope you use it for many healthy years! BODYCRAFT offers a complete array of high-quality fitness equipment. Please refer to our website www.bodycraft.com to view more ways to enhance your lifestyle.
-
Page 3: Table Of Contents
Table of Contents, Dual Multi-Press (DMP) NOTE: When you have downloaded the Owner’s Manual into a PDF reader, go directly to the desired page by touching any BLUE line in this Table of Contents. Page Product Safety Information Product Safety ……………………………………………………………... Important Notes, Recommended Tools &... -
Page 4: Product Safety
It is imperative that you retain this Assembly Instructions and be sure all warning labels are legible and intact. Replacement Assembly Instructions and labels are available from BODYCRAFT. If you are unsure about the proper use of the BODYCRAFT strength machine call your local BODYCRAFT dealer or our Customer Service Department. Contact BODYCRAFT at 800-990-5556 or support@bodycraft.com... -
Page 5: Important Notes, Recommended Tools & Cleaners
Important Notes, Recommended Tools & Cleaners, Dual Multi-Press (DMP) Important Notes and Tips: Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier. 2. Make sure all parts are accounted for and in proper condition before beginning assembly. See the parts list. - Page 6 Warning Labels, Maintenance Schedule & Serial Number, Dual Multi-Press (DMP) Carefully read ALL warning, caution & maintenance schedule labels NOTE: Labels are not to scale...
- Page 7 Warning Labels, Maintenance Schedule & Serial Number Placement, DMP Carefully read ALL warning, caution & maintenance schedule labels NOTE: Parts & Labels are not to scale...
- Page 8 Machine Dimensions & Room Layouts, DMP...
- Page 9 Assembly Parts, Dual Multi-Press (DMP) 1 of 2 Part # Assembly Parts List DMP-001-ASM Frame, Weight Stack - Assembly DMP-002-ASM Frame, Main - Assembly DMP-003 Frame, Connector, Rear DMP-004 Frame, Connector, Bottom DMP-005-ASM Frame, Front Stabilizer - Assembly DMP-006 Frame, Selector Rail for Seat Adjustments DMP-007-ASM Frame, Support for Back Pad - Assembly DMP-008-ASM...
- Page 10 Assembly Parts, Dual Multi-Press (DMP) 2 of 2 NOTE: For a complete service parts list, please refer to the detailed parts list & exploded view …………………………………….at the rear of this manual. Part # Assembly Hardware DMP-055 Bolt, Hex, 3/8″ x 1″ L DMP-056 Bolt, Hex, 3/8″...
- Page 11 CWP15(5) Size: 13'' L x 6'' W x 6'' H ea. (310mm L x 130mm W x 140mm H) BODYCRAFT reserves the right to make improvements at any time which may affect color, parts, materials, size, weight, or any other aspect.
- Page 12 Product Assembly, Preassembly Tips, Dual Multi-Press (DMP) PREASSEMBLY TIP #1 – “Stage Right”. During the assembly process we will be stating Right, Left, Front, Back, Top, or Bottom. These all are in the perspective of the user in the machine facing outward with feet on the ground. See below images as examples.
- Page 13 Product Assembly, Dual Multi-Press (DMP) TEP 1: Install Weight Stack Frame & Main Frame w/ the Connector Frames Please Hand Tighten All Nuts & Bolts Until STEP 6 The Shortest Bolts 3/8" x 1" Part # Assembly Parts & Hardware List DMP-001-ASM Frame, Weight Stack - Assembly DMP-002-ASM...
- Page 14 Product Assembly, Dual Multi-Press (DMP) TEP 2a: Install Front Stabilizer & Support for Seat Frame Please Hand Tighten All Nuts & Bolts Until STEP 6 TEP 2b: Install Support for Seat Frame Recommended Tool for the Press Arm Axle: RUBBER MALLET The Longest Bolts TEP 2c: Install Press Arm Pivot Frame 3/8"...
-
Page 15: Assembly Parts & Hardware List
Product Assembly, Dual Multi-Press (DMP) TEP 3: Install Support & Adjusting Frames ONLY Tighten STEP 3 Hardware to the Recommendations Below The Longest Bolt The Shortest Bolt 1/2" x 5-3/4" 1/2" x 5-1/4" Note: Fully tighten all three (3) bolts & nuts until the gap is closed. Then loosen, up to 1/8 turn so that the Support &... - Page 16 Product Assembly, Dual Multi-Press (DMP) TEP 4: Install Press Arm Assembly Please Hand Tighten All Nuts & Bolts Until STEP 6 Flat notch through left side to right side. Part # Assembly Parts & Hardware List DMP-010-ASM Press Arm - Assembly Axle, for Press Arm, w/ one side flat notch, DMP-014 25.4mm OD ×...
-
Page 17: Step 1 - Step
Product Assembly, Dual Multi-Press (DMP) TEP 5a: Install & Lube Guide Rods, Rubber Cushions, Weight Plates. & Top Plate-ASM Please Hand Tighten All Nuts & Bolts Until STEP 6 Standard 200 lb stack use the following: 1 box, 4ea of 10 lb plates = 40 lbs per CWP10(4) box Part # Assembly Parts &... - Page 18 Product Assembly, Weight Stack Stickers Installation, Dual Multi-Press (DMP) TEP 5b: Clean Weight Stack IMPORTANT: Before installing the weight stack stickers, it is important to let the weight plates acclimate to room temperature. Clean Top Plate & Weight Plates front surface with: MINIMUM 65 DEGREES &...
- Page 19 Product Assembly, Dual Multi-Press (DMP) TEP 6a: “Torque Time” on ALL Frame Nuts & Bolts from STEP 1 - 5a NOTE: These recommended torque Example of being specs should be followed for correct overtightened not using the assembly and safe operation of this recommended torque specs.
- Page 20 Product Assembly, Dual Multi-Press (DMP) TEP 6b: Continue“Torque Time” on ALL Frame Nuts & Bolts from STEP 1 - 5a Recommended Tools: TORQUE WRENCH w/ 9/16 SOCKET & 9/16 WRENCH Tighten all 3/8” Bolts (for the guide 12.5 ft-lbs rods) to the recommended torque (+/- 1 lbs) specs of 12.5 ft-lbs (+/- 1 lbs).
- Page 21 Product Assembly, Dual Multi-Press (DMP) TEP 7: Install Cable & Selector Pin w/ Lanyard NOTE: Actual color of Main Cable #18 is black. Shown in the assembly STEP in ORANGE for easy viewing 20 ft-lbs (+/- 2 lbs) 17 ft-lbs (+/- 2 lbs) Recommended Tools: TORQUE WRENCH w/ 1/4...
- Page 22 Product Assembly, Dual Multi-Press (DMP) TEP 8: Install Weight Stack Shrouds & Cover Top Assembly 5 ft-lbs (+/- 0.5 lbs) NOTE: When lowering down the Shroud Covers, confirm the back taps are behind the frame slots, Recommended Tool: locking in the Shroud Cover to the frame. Part # Assembly Parts &...
- Page 23 Product Assembly, Dual Multi-Press (DMP) TEP 9: Install Seat Pads & Tighten Bolts to the Recommended Torque Specs. 12.5 ft-lbs (+/- 1 lbs) 12.5 ft-lbs Tighten all 3/8”Bolts (for the Pads) (+/- 1 lbs) to the recommended torque specs of 12.5 ft-lbs (+/- 1 lbs).
- Page 24 Product Assembly, Final Assembly Clean up, Lube & Polish, (DMP) STEP 10a: Remove any & all Assembly Stickers, i.e. Part Numbers & Right / Left Circles ● Easy to remove with fingernail or plastic scraper ● If adhesive residue is on frame: ○...
-
Page 25: Routine Schedule
Product Assembly, Routine Schedule... - Page 26 Product Assembly, General & Cable Inspection...
-
Page 27: Lubrication Maintenance
Product Assembly, Lubrication Maintenance... -
Page 28: Strength Cable Wear Indicators
Strength Cable Wear Indicators... -
Page 29: Detailed Parts Exploded View
Detailed Parts, Exploded View, Dual Multi-Press (DMP) NOTE: Parts are not to scale... - Page 30 Detailed Parts List, Dual Multi-Press (DMP) 1 of 3 Part # Detailed Parts List DMP-001 Frame, Weight Stack DMP-002 Frame, Main DMP-003 Frame, Connector, Rear DMP-004 Frame, Connector, Bottom DMP-005 Frame, Front Stabilizer DMP-006 Frame, Selector Rail for Seat Adjustments DMP-007 Frame, Support for Back Pad DMP-008...
- Page 31 Detailed Parts List, Dual Multi-Press (DMP) 2 of 3 Part # Detailed Parts list DMP-038 Plug, Flat Oval, PT100 x 50mm, Aluminum - BLUE DMP-039 Plug, Round, Φ50 - BLUE w/ BC logo DMP-040 Bushing, Brass, Φ12.7 × Φ9.5 × 7.9 DMP-041 Pulley, 90mm (3-1/2") x δ26mm ID DMP-042...
- Page 32 Detailed Parts List, Dual Multi-Press (DMP) 3 of 3 Part # Detailed Parts list Weight Plate, 10 lbs (4.5kg), Standard 200 lb DMP-082 Weight Stack OPTION - Weight Plate, 15 lbs (6.8kg), Upgraded DMP-82B-OPT 250 lb Weight Stack w/ 9 each #82 Plates DMP-083 Shroud Lid Rubber Mat, Large DMP-084...
- Page 33 Service Request Required Information BEFORE Initiating a Service Case The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair: What product / model # do you have? Unit serial number? Installed by a dealer or direct sale? Date of installation? Date of service issue?
- Page 34 The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to BODYCRAFT within 30 days from the date of equipment installation.
-
Page 35: Product Warranty
If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts. Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic evidence of the damaged part(s) prior to replacement.) Serial number is required.
