7. Configuration
7.1 Network Configuration
The product adopts WEB configuration, it is recommended to use browser chrome version 100
or above, and the resolution of computer is recommended to be 1920*1080. If there is a firewall
on site, please let the firewall allow the following IP and port, so that the data collected can be
effectively uploaded.
IP: Allocation according to firewall policy, Logger for adaptation.
Solis cloud platform: port 1883.
IEC104 protocol: 2404-2405 ports.
Remote maintenance ports: 47, 1723, 1777 ports.
7.2 Software Configuration

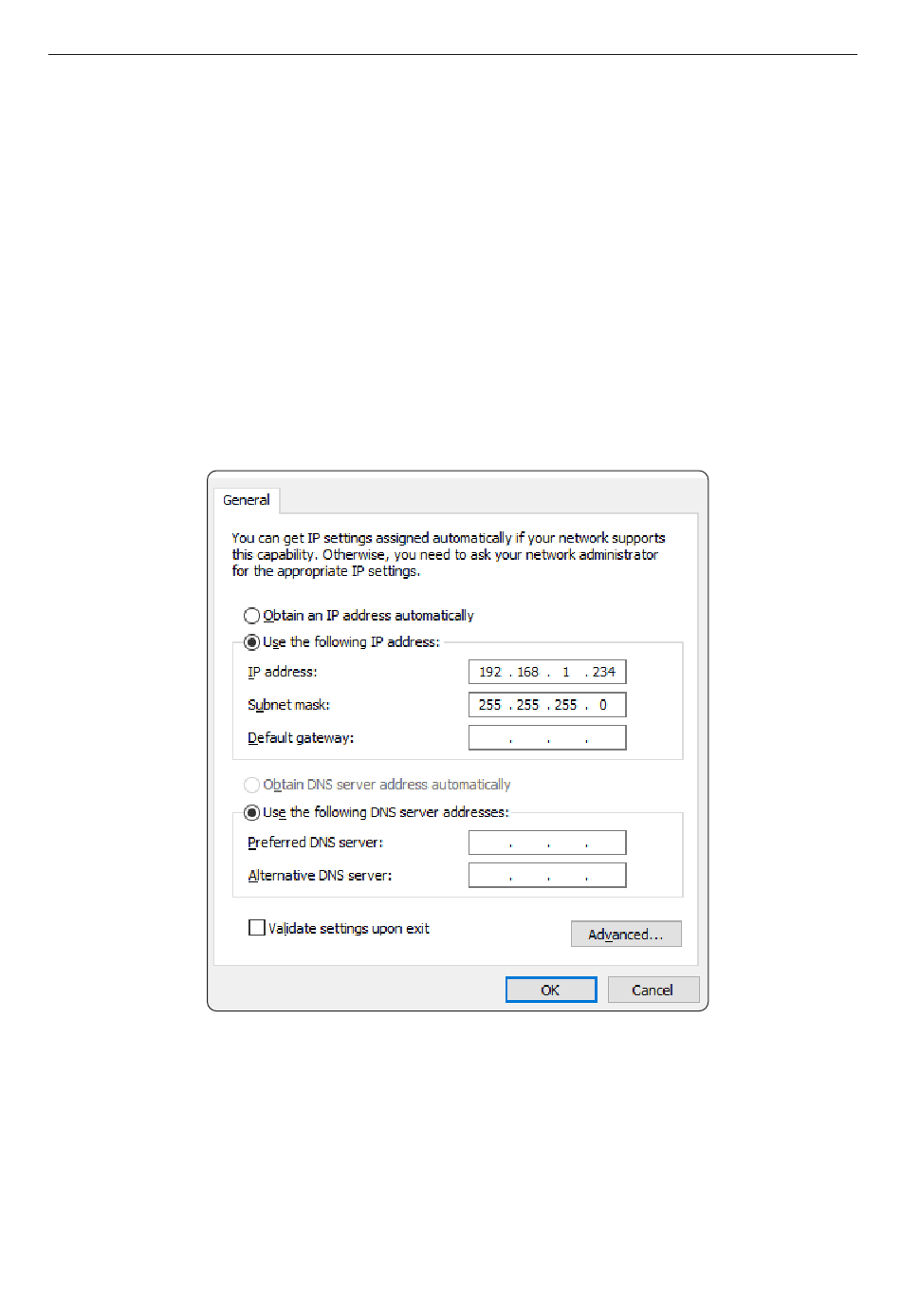

1.Modify the computer IP, and keep the computer and Logger datalogger IP in the same network
segment, and use the network cable to connect the computer and Logger device.
.12.
