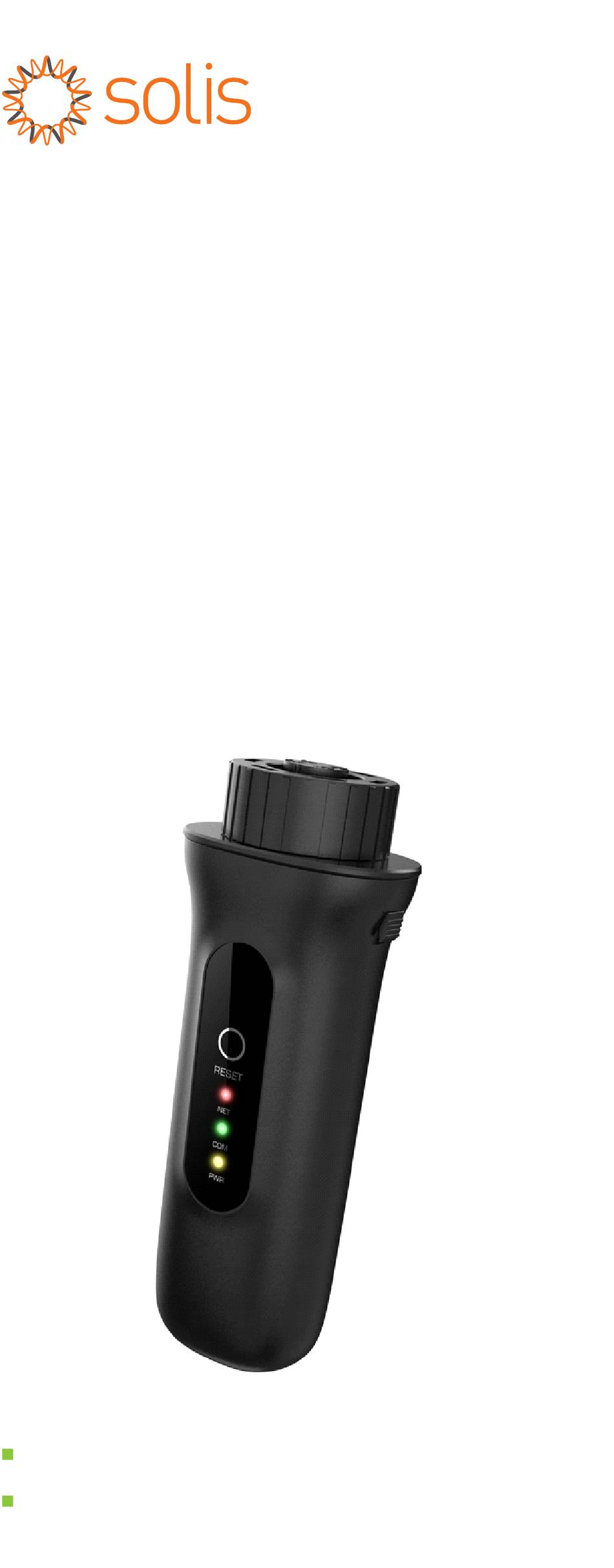

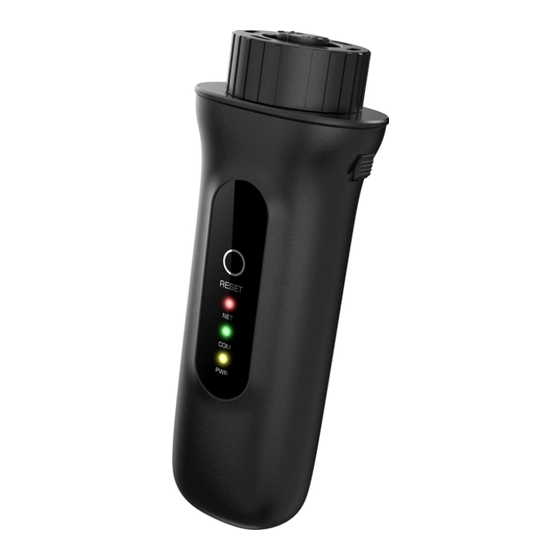

RF Stick Datalogger(4Pin)
Quick Installation Manual
Version: 1.0
Delivery Content
1 RF stick(4Pin)
1 Quick Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S2-RF-LINK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOLIS S2-RF-LINK

Summary of Contents for SOLIS S2-RF-LINK

  • Page 1 RF Stick Datalogger(4Pin) Quick Installation Manual Version: 1.0 Delivery Content 1 RF stick(4Pin) 1 Quick Installation Manual...

  • Page 2: Install The Datalogger

    Install 1.1 Install the datalogger Connect the datalogger to the corresponding 4-pin COM port of the inverter. A Solis 5K inverter is used here as an example. Please follow the instructions below: Match the joint Install the datalogger: Step 1: Remove the plastic protective cap from the inverter COM port.
  • Page 3 1.3 Install with multiple inverters If you need to collect data from multiple inverters, please follow the inverter user manual to establish a communication connection with the inverter using the RS485 communication cable in a "hand in hand" manner..Inverter 1 Inverter 2 Inverter n...

  • Page 4: Led And Button

    LED and Button 2.1 LED Lights Status Meanings Description indicators Status Trying to connect Flashing with server Shows the Internet connection Successfully Indicators status between connected (NET) the datalogger and the server. Abnormal connection Trying to connect Flashing with inverter Shows the Inverter COM Successfully...
  • Page 5 Create the SolisCloud Account Step 1: You can download the SolisCloud mobile app by scanning the QR code or searching "SolisCloud” from APP Store or Google Play Store. Step 2: Tap “ Register ”. Step 3: Select Owner or Organization for registration.
  • Page 6 Step 4: Enter your email address and input the verification code you received in your email, then set up user name and password to complete the registration.
  • Page 8 Step 5: Registration completed. Create Plant Step 1: Enter the home page of SolisCloud APP, click “ Add Plant ” in the middle of the page.
  • Page 9 Step 2: Enter the plant details and then tap “ Next ”.
  • Page 10 Step 3: Once the required information has been entered, tap “ Create Plant ”.
  • Page 11 Step 4: Plant creation completed. It will automatically enter the APP homepage.
  • Page 12 Bind the dataloggers Step 1: Click on the plant to enter the plant home page. You will be prompted to add a datalogger, tap “ ” to add the logger.
  • Page 13 Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click ” ”. NOTE Please make sure to input the logger serial number, not the inverter serial number. √ ×...
  • Page 14 Step 3: Bound successfully. If the plant has multiple dataloggers, please click “Continue to bind” to bind other dataloggers.
  • Page 15 Contact Please contact us if you have any technical problems in terms of the product. Please provide the following information as well: Inverter SN Datalogger SN Problem Description Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Email：info@ginlong.com...
