Solis RF Data logger
Quick Installation Guide
For S2-RF-LINK(4Pin) / S2-RF-LINK(USB)
Version: 1.0

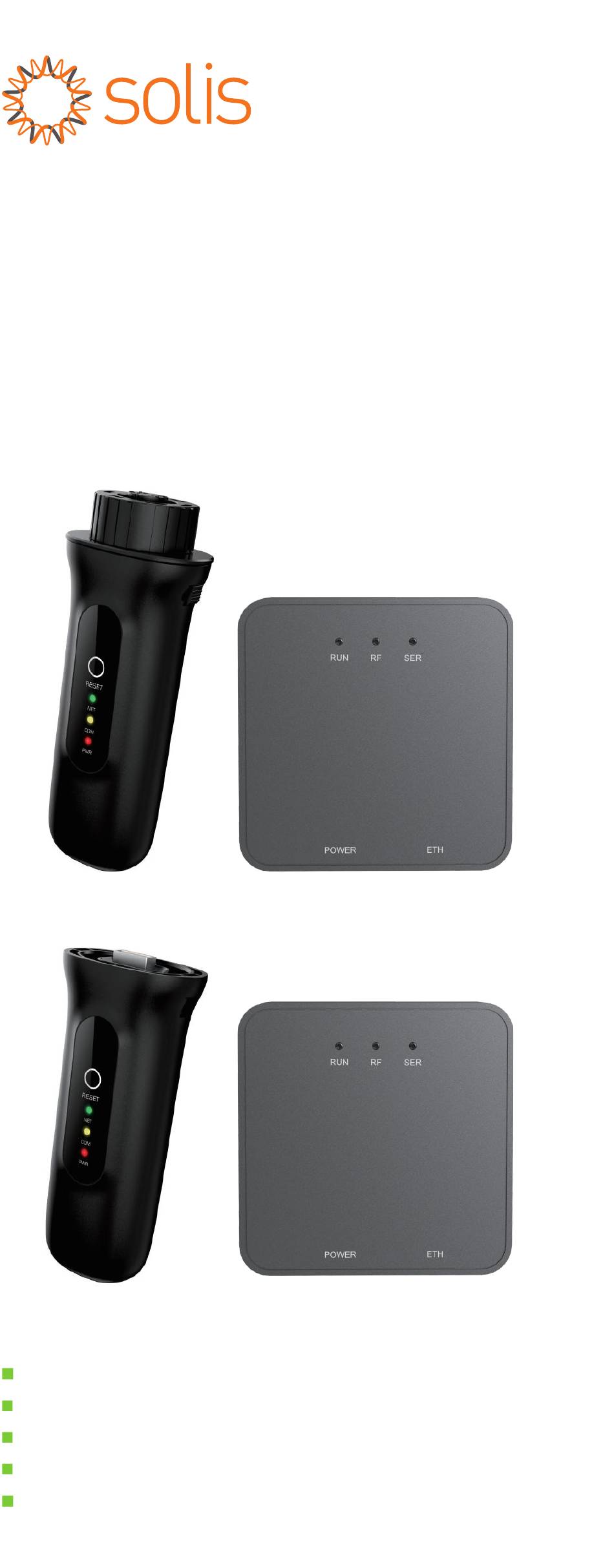

Delivery Content
PC S2-RF-ST x1
PC S2-RF-Gateway x1
PC RF Network Cable x1
PC RF Power Cable x1
PC Quick Installation Guide x1

Advertisement

loading
Need help?

Need help?

Do you have a question about the S2-RF-LINK 4Pin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOLIS S2-RF-LINK 4Pin

Summary of Contents for SOLIS S2-RF-LINK 4Pin

  • Page 1 Solis RF Data logger Quick Installation Guide For S2-RF-LINK(4Pin) / S2-RF-LINK(USB) Version: 1.0 Delivery Content PC S2-RF-ST x1 PC S2-RF-Gateway x1 PC RF Network Cable x1 PC RF Power Cable x1 PC Quick Installation Guide x1...
  • Page 2 S2-RF-ST 1.1 Install 1.1.1 Install S2-RF-ST-USB Connect the datalogger to the corresponding 4-pin COM port of the inverter. A Solis 50K inverter is used here as an example. Please follow the instructions below: Match the joint Install the datalogger: 1.

  • Page 3: Install The Data Logger

    1.1.2 Install S2-RF-ST-4Pin Connect the data logger to the corresponding 4-pin COM port of the inverter. A Solis 5K inverter is used here as an example. Please follow the instructions below: Match the joint Install the data logger: Step 1: Remove the plastic protective cap from the inverter COM port.
  • Page 4 1.1.3 Install with multiple inverters If you need to collect data from multiple inverters, please follow the inverter user manual to establish a communication connection with the inverter using the RS485 communication cable in a "hand-in-hand" manner..Inverter 1 Inverter 2 Inverter n RS485...
  • Page 5 1.2 LED and Button Meanings Description indicators Status Trying to connect Flashing Shows the with gateway connection Internet status between Successfully Indicators the datalogger connected (NET) and the Abnormal gateway. connection Trying to connect Flashing with inverter Shows the Inverter COM Successfully connection Indicators...
  • Page 6 S2-RF-Gateway 2.1 Install Using the network cable, one access to the gateway port, one access to the router. And confirm that the router turns on the function of automatically assigning IP. Connect the gateway to the power supply. NOTE Installation Requirements: Max. distance between RF gateway and RF sub-device without shelter is 200m.
  • Page 7 2.2 Reset Button Instruction Long press for 5 seconds, when the SER light and RF light go out ,the reset is successful. 2.3 LED Lights Status Lights Implication LED Status Status Description Powered up normally System Running Status Powered up abnormally Flashing Trying to connect with inverter Communication...
  • Page 8 Create the SolisCloud Account Step 1: You can download the SolisCloud mobile APP by scanning the QR code or searching "SolisCloud” from APP Store or Google Play Store. NOTE We strongly recommend that you download the latest version of the SolisCloud APP before proceeding to the next step to match more features.
  • Page 9 Step 4: Enter your email address and input the verification code you received, then set a username and password to complete the registration.
  • Page 10 Step 5: Registration is completed.
  • Page 11 Create Plant Step 1: Enter the home page of SolisCloud APP, tap “ Add Plant ” in the middle of the page.
  • Page 12 Step 2: Enter the plant details and then tap “ Next ”.
  • Page 13 Step 3: After entering the required information, tap “ Create Plant ”.
  • Page 14 Step 4: Plant creation is completed. It will automatically enter the APP homepage.
  • Page 15 Bind the Gateway Step 1: Click on the “Data logger ” to enter the plant home page, tap “ Add datalogger ” to add the logger.
  • Page 16 Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Step 3: Click “ Associate Existing Plant ”.
  • Page 17 Step 4: Select the plant. Step 5: Click “ ”,Bound successfully.
  • Page 18 Bind and unbind the Stick from Gateway By default, the stick is bound to the gateway. When you confirm that you need to replace the stick,Follow the following steps for the replacement: Step 1: Click “ Service ” page to enter “ Local Operation”...
  • Page 19 Step 2: Click “ Connect With Bluetooth ”. Step 3: Select the SN number of the gateway to connect.
  • Page 20 Step 4: Once the connection is successful, click “ Setting ”. Step5: Click “ Child nodle management ” (Default binding of a child node). Step 6: Unbind the original child node.
  • Page 22 Step 7: Click “ Add Child Nodes ”. Step 8: Enter the SN number of the new child node, click “ Confirm Add ”.
  • Page 23 Step 9: Complete the binding.
  • Page 24 The warranty period of this product is 2 years. You can feedback vuinerabilities through online customer service on the platform, and can also call the global after-sales service number to elaborate on relevant problems. Please provide the following information as well: Inverter SN Data logger SN...
