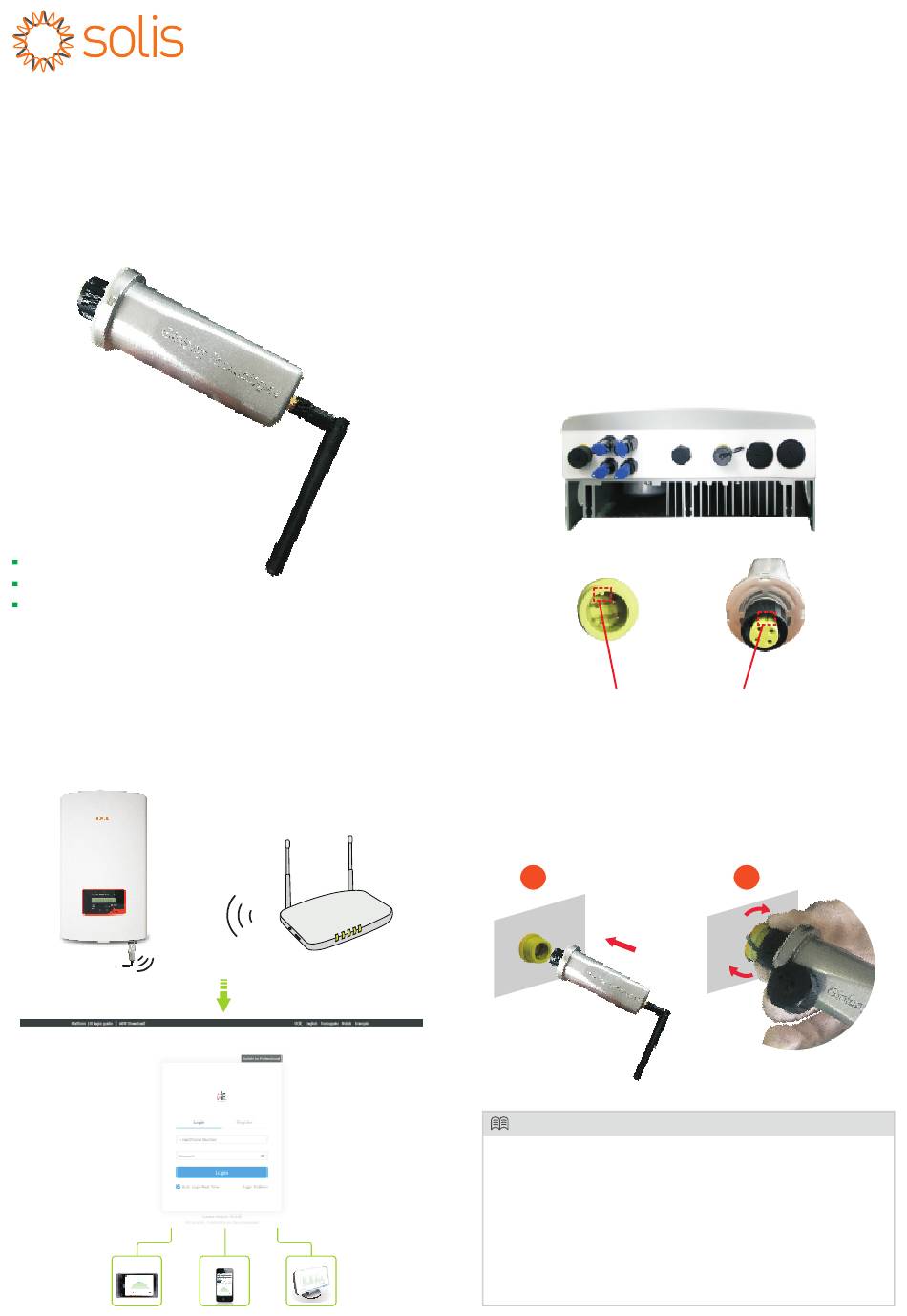

SOLIS DLS Quick User Manual

Data Logger Wifi Stick
Quick User Guide
DLS Version: 2.1

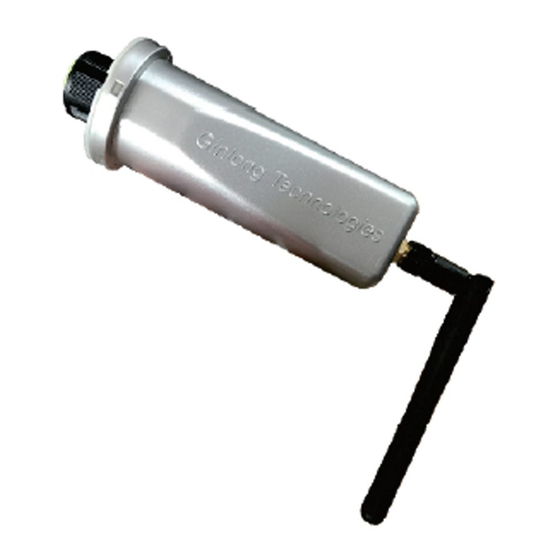

Delivery Content

1 pc WiFi
1 pc WiFi external antenna
1 pc Data Logger Wifi Stick Quick User Guide

Introduction

Data Logger Wifi Stick is mainly used in inverters to realize
simple and quick access to Internet. Users can easily check
device information by logging in the monitoring center. The
communication topology is as shown below:
Data Logger
Wifi Stick
Android
Wireless Router
iPhone PC

Description of Symbols

To ensure normal use of the datalogger, before using the
datalogger, be sure that:
a. The connected wireless router can normally access to
Internet;
b. The communication address of the inverter MUST BE
" 01 ", which is default value.
c. A WiFi-enabled mobile phone is connected to this device
for parameter setting.
1

Electrical Connection

Connect WiFi to the corresponding interface on the inverter.
Solis-1P5K-4G is used as an example in this manual.
Please perform relevant operations as indicated below:
Corresponding groove
Data Logger Wifi Stick Interface
Data Logger WiFi Stick Installation
1. Insert WiFi Stick to COM port.
2. Fasten the WiFi Stick.
1
NOTES
The datalogger must be kept away from large metal
objects and electrical devices with strong magnetic fields,
such as microwave oven, refrigerator, cordless phone,
concrete wall, PV panel and metal wall, to ensure the
communication quality. Communication quality may
be affected in lightning storms.
2
