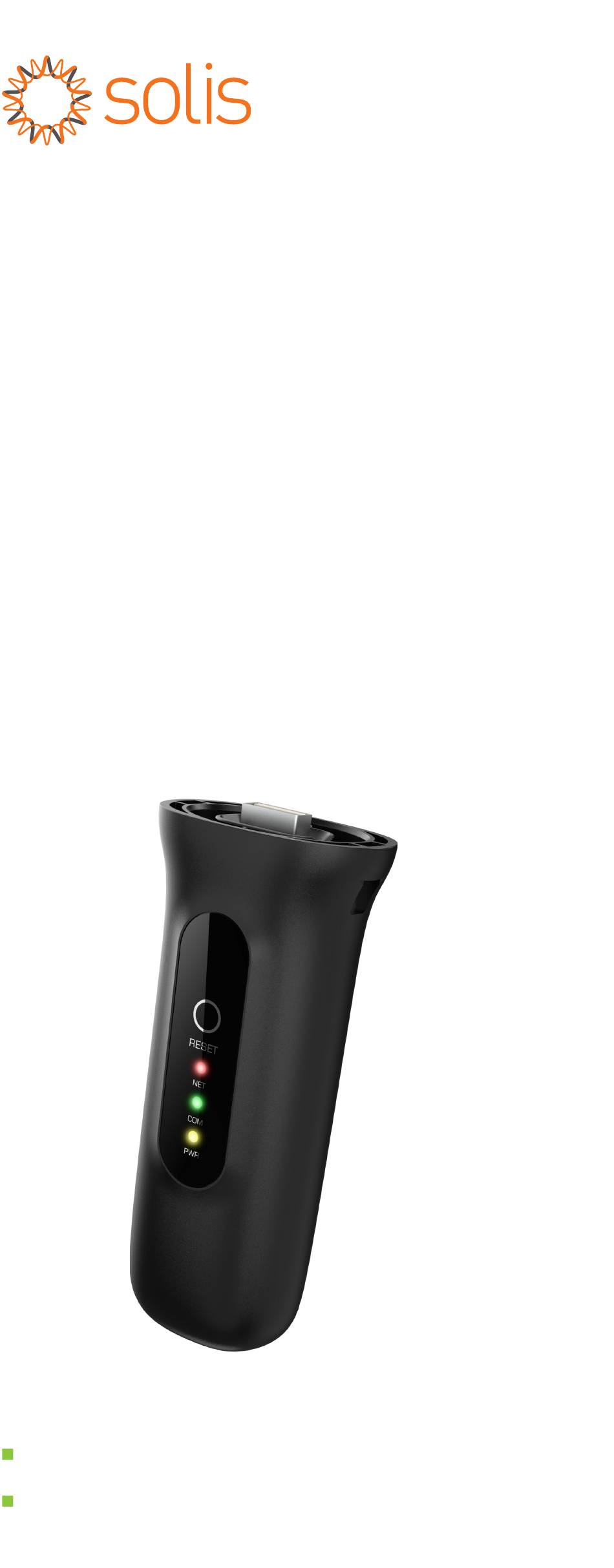

- Page 1 Solis Wi-Fi Stick Datalogger Quick Installation Guide For S5-WiFi-ST-4Pin Version: 1.0 Delivery Content 1 Wi-Fi stick(4Pin) 1 Quick Installation Manual...
-
Page 2: Install The Datalogger
Install 1.1 Install the datalogger Connect the datalogger to the corresponding USB port of the inverter. A Solis 50K inverter is used here as an example. Please follow the instructions below: Match the joint... - Page 3 1.2 Install with multiple inverters If you need to collect data from multiple inverters, please follow the inverter user manual to establish a communication connection with the inverter using the RS485 communication cable in a "hand in hand" manner..Inverter 1 Inverter 2 Inverter n...
-
Page 4: Led And Button
LED and Button 2.1 LED Lights Status Meanings Description indicators Status Trying to connect Flashing with server Shows the Internet connection Successfully Indicators status between connected (NET) the datalogger and the server. Abnormal connection Trying to connect Flashing with inverter Shows the Inverter COM Successfully... - Page 5 Create the SolisCloud Account Step 1: You can download the SolisCloud mobile app by scanning the QR code or searching "SolisCloud” from APP Store or Google Play Store. Step 2: Tap “ Register ”. Step 3: Select Owner or Organization for registration.
- Page 6 Step 4: Enter your email address and input the verification code you received in your email, then set up user name and password to complete the registration.
- Page 8 Step 5: Registration completed. Create Plant Step 1: Enter the home page of SolisCloud APP, click “ Add Plant ” in the middle of the page.
- Page 9 Step 2: Enter the plant details and then tap “ Next ”.
- Page 10 Step 3: Once the required information has been entered, tap “ Create Plant ”.
- Page 11 Step 4: Plant creation completed. It will automatically enter the APP homepage.
- Page 12 Bind the dataloggers Step 1: Click on the plant to enter the plant home page. You will be prompted to add a datalogger, tap “ ” to add the logger.
- Page 13 Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click ” ”. NOTE Please make sure to input the logger serial number, not the inverter serial number. √ ×...
- Page 14 Step 3: Bound successfully. If the plant has multiple dataloggers, please click “Continue to bind” to bind other dataloggers.
-
Page 15: Network Configuration
Network Configuration 6.1 WiFi Configuration by Bluetooth Step 1: Click “Service“ page to enter "WiFi Configuration” in the toolbar. Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click “ Next ”... - Page 16 Step 3: Choose the configuration method, click " Configuration by Bluetooth ". Step 4: Select the Device called “D_serial number of the inverter”.
- Page 17 Step 5: Click”>”to jump to the WLAN settings on your phone. Search for Local Area Network and then select the network you want to connect. Then switch back to the page to fill in the WiFi password, and move to next step. Step 6: Configuration Completed.
- Page 18 6.2 WiFi Configuration by Browser Step 1: Click “Service“ page to enter "WiFi Configuration” in the toolbar. Step 2: Scan the QR code on the logger or manually enter the SN of the logger. Then click “ Next ”...
- Page 19 Step 3: Choose the configuration method, click " Browser Configuration ".
- Page 20 Step 4: Make sure that the green light flashes at intervals, then click " I'm sure it is flashing ".
- Page 21 Step 5: Click " Go to connect "(For Android system) or anywhere on the page(For IOS system) to jump to the WLAN settings on your phone.
- Page 22 Step 6: Search for Local Area Network and select the network called “ D_serial number of the datalogger ”. Enter the default password “ 123456789 ”, then return to APP. Step 7: Click”>”, make sure the phone is connected to router WiFi and switch back to the page to fill in the WiFi password, then move to next step.
- Page 23 Step 8: Configuration Completed.
- Page 24 Contact Please contact us if you have any technical problems in terms of the product. Please provide the following information as well: Inverter SN Datalogger SN Problem Description Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Email：info@ginlong.com...
