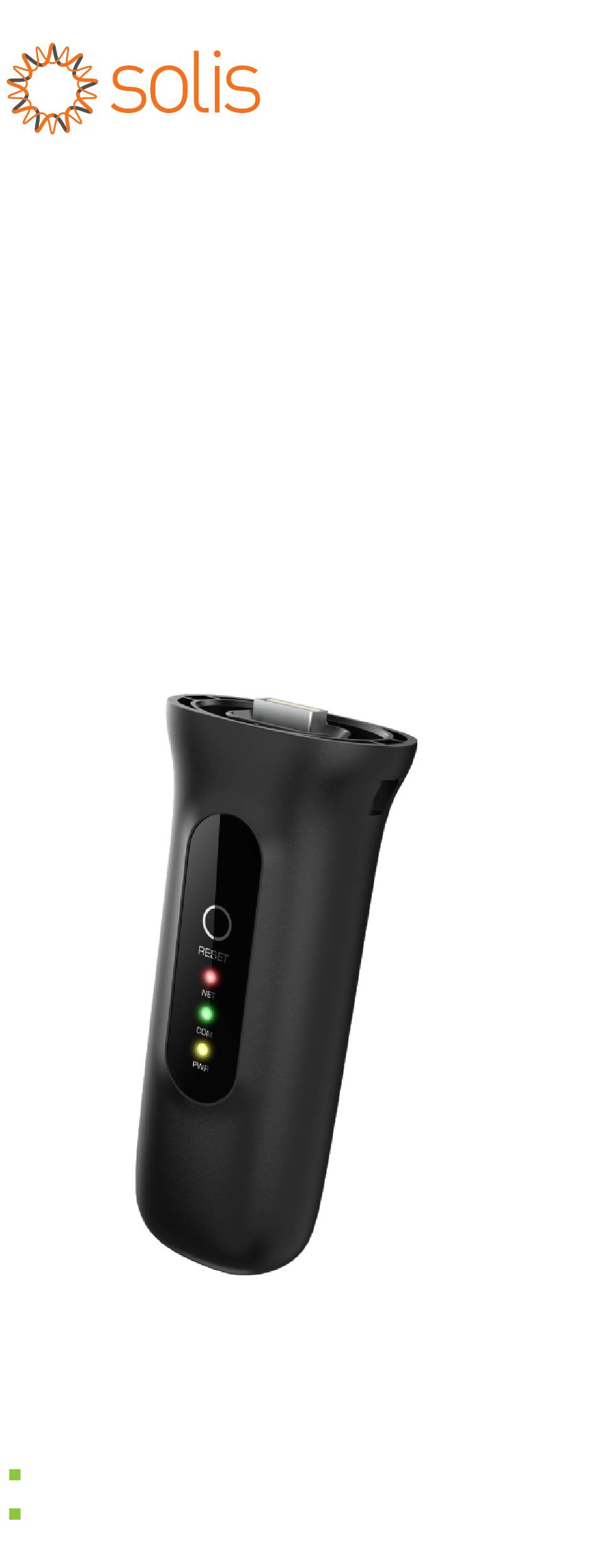

- Page 1 W4G Stick Datalogger Quick Installation Manual Version: 1.0 Delivery Content 1 W4G stick 1 Quick Installation Manual...
-
Page 2: Install The Datalogger
Install the datalogger 1.1 Install the datalogger Connect the datalogger to the corresponding USB port of the inverter. A Solis 50K inverter is used here as an example. Please follow the instructions below: Match the joint Install the datalogger: 1. Press both sides of the protective cover and open the inverter USB port protective cover. - Page 3 1.2 Install with multiple inverters If you need to collect data from multiple inverters, please follow the inverter user manual to establish a communication connection with the inverter using the RS485 communication cable in a "daisy chain" manner..Inverter 1 Inverter 2 Inverter n...
-
Page 4: Led And Button
LED and Button LED Lights Status: Meanings Description indicators Status Trying to connect Flashing with server Shows the Internet connection Successfully Indicators status between connected (NET) the datalogger and the server. Abnormal connection Trying to connect Flashing with inverter Shows the Inverter COM Successfully connection... - Page 5 Create the SolisCloud Account Step 1: Use you phone to scan the SolisCloud to download and register the APP. Or directly download from APP Store or Google Play Store by searching "SolisCloud”. SolisCloud Step 2: Click the “ Register ”. Register Step 3: Select Owner or Organization for email address registration.
- Page 6 Step 4: Enter the email to get the verification code, than enter your account and password, last click the " Register ". Owner Register...
- Page 7 Organization Register...
-
Page 8: Network Configuration
Network Configuration The default network mode of the device is to prioritize WiFi mode. When there is no WiFi or weak WiFi signal, the network mode will be automatically switched to 4G communication (if the 4G signal is weak, it will be reduced to 2G for communication). - Page 9 Step 2: Click the " Local Operation ”. Step 3: Click the “ Connect With Bluetooth ”.
- Page 10 Step 4: Select the Device and enter into the detail page.
- Page 11 Step 5: Click the “ View more-Setting ” at the bottom to enter the setting page. Setting...
- Page 12 Step 6: Click the “ APNSetting ”. Step 7: Enter the APN, User Name and Password(If APN is no User Name and Password, unnecessary to fill in). Then click the “ Save ”. Save Step 8: If the prompt is OK, Configuration Complete. NOTE Please check APN, User Name and Password carefully.
- Page 13 4.2 WiFi Configuration Step 1-5 are same with 4.1 4G Configuration. Please refer to it. Step 6: Click the “ WiFiSetting ”. Step 7: Enter the WiFi name and WiFi password. Then click the “ Save ”. Save Step 8: If the prompt is OK, Configuration Complete. NOTE Please check WiFi name and password carefully.
-
Page 14: Change The Password
Change the Password For security reasons, you are advised to change the password of the data logger access point, which is also the login password of the website 10.10.100.254 Step 1: The wireless device(mobile phone or laptop) connects to the datalogger hotspot(Solis_serial number). - Page 15 Step 4: Configurations will take effect after restart. Please click the “ Restart ” to make the setting effective.
- Page 16 Create Plant Step1: Enter the main page of Solis Cloud APP, click “ ”at the top right corner and select “ Add plant ” . Add plant...
- Page 17 Step 2: Input the information of the plant as required. Then click “ Next ”. Next...
- Page 18 Step 3: Add more information. “ Click the “Create Plant ”. Step 4: Click “ View plant ” to enter the plant homepage , then add the datalogger. View plant...
- Page 19 Step 5: Scan the SN number of the datalogger or manually input it. Note: Scan the datalogger SN , NOT the inverter SN √ ×...
- Page 20 Step 6: Plant creation succeeds. Click "Continue to bind" to check the monitoring data. If the plant has ". multiple dataloggers, please click " View Plant Continue to bind View Plant...
-
Page 21: Fcc Certification
FCC Certification This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 Contact Please contact us if you have any technical problems in terms of the product. Please provide the following information as well: Inverter SN Datalogger SN Problem Description Ginlong Technologies Co., Ltd. No. 188 Jinkai Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Email：info@ginlong.com...
