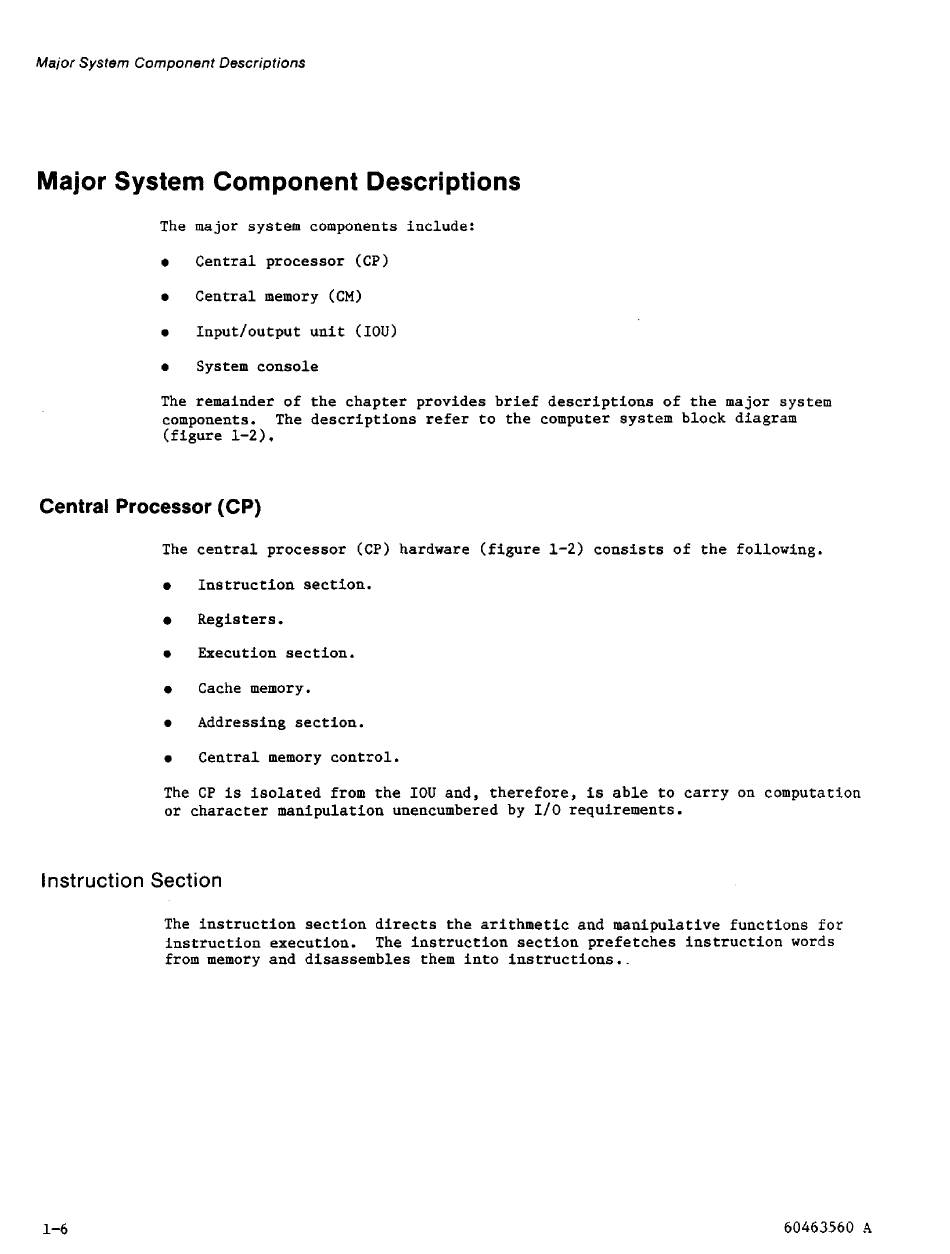

Control Data Cyber 170 State Hardware Reference Manual page 22

Major
System Component Descriptions
Major System Component Descriptions
The major system components include:
r
Central processor (CP)
0
Central memory (CM)
0
~nput/output unit (IOU)
r System console
The remainder of the chapter provides brief descriptions of the major system
components. The descriptions refer to the computer system block diagram
(figure 1 - 2 ) .
Central Processor (CP)
The central processor (CP) hardware (figure 1-2) consists of the following.
0
Instruction section.
Registers.
0
Execution section.
Cache memory.
0
Addressing section.
0
Central memory control.
The CP is isolated from the IOU and, therefore, is able to carry on computation
or character manipulation unencumbered by I/O requirements.
Instruction Section
The instruction section directs the arithmetic and manipulative functions for
instruction execution. The instruction section prefetches instruction words
from memory and disassembles them into instructions..
