Kramer EXT3-21-XR-TR Quick Start Manual page 3

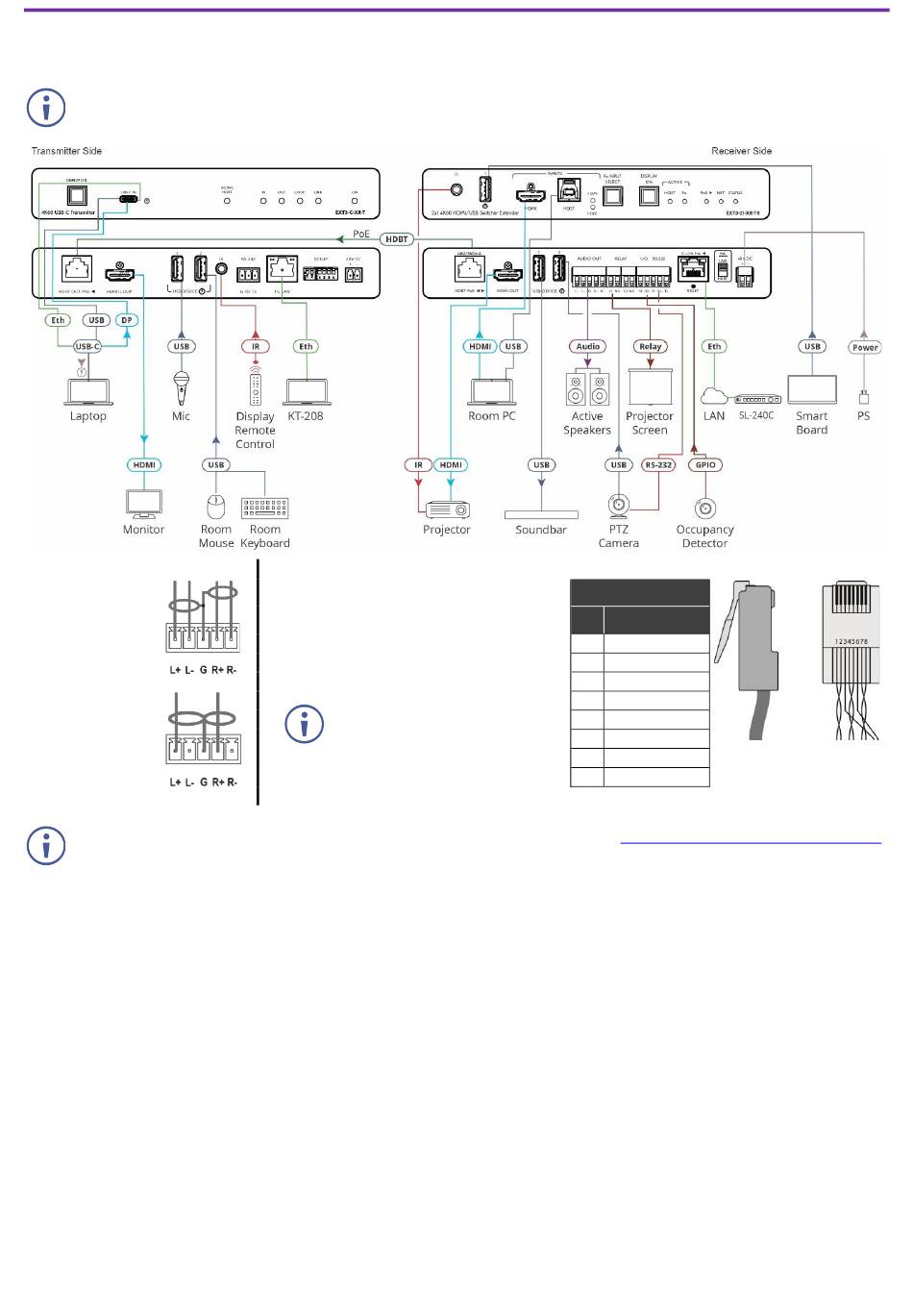

Step 4: Connect inputs and outputs
Always switch OFF the power on before connecting it to your EXT3-21-XR-TR.
The diagram displays the EXT3-21-XR-TR on the Receiver side. It is also relevant for the Transmitter side.
Connecting the audio output
To a balanced
stereo audio
acceptor:
To an unbalanced
stereo audio
acceptor:
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/EXT3-21-XR-TR.
Using third-party cables may cause damage!
Wiring the RJ-45 Connectors
This section defines the TP pinout, using
a straight pin-to-pin cable with RJ-45
connectors.
For HDBT cables, it is recommended
that the cable ground shielding be
connected/soldered to the connector
shield.
EIA /TIA 568B
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
