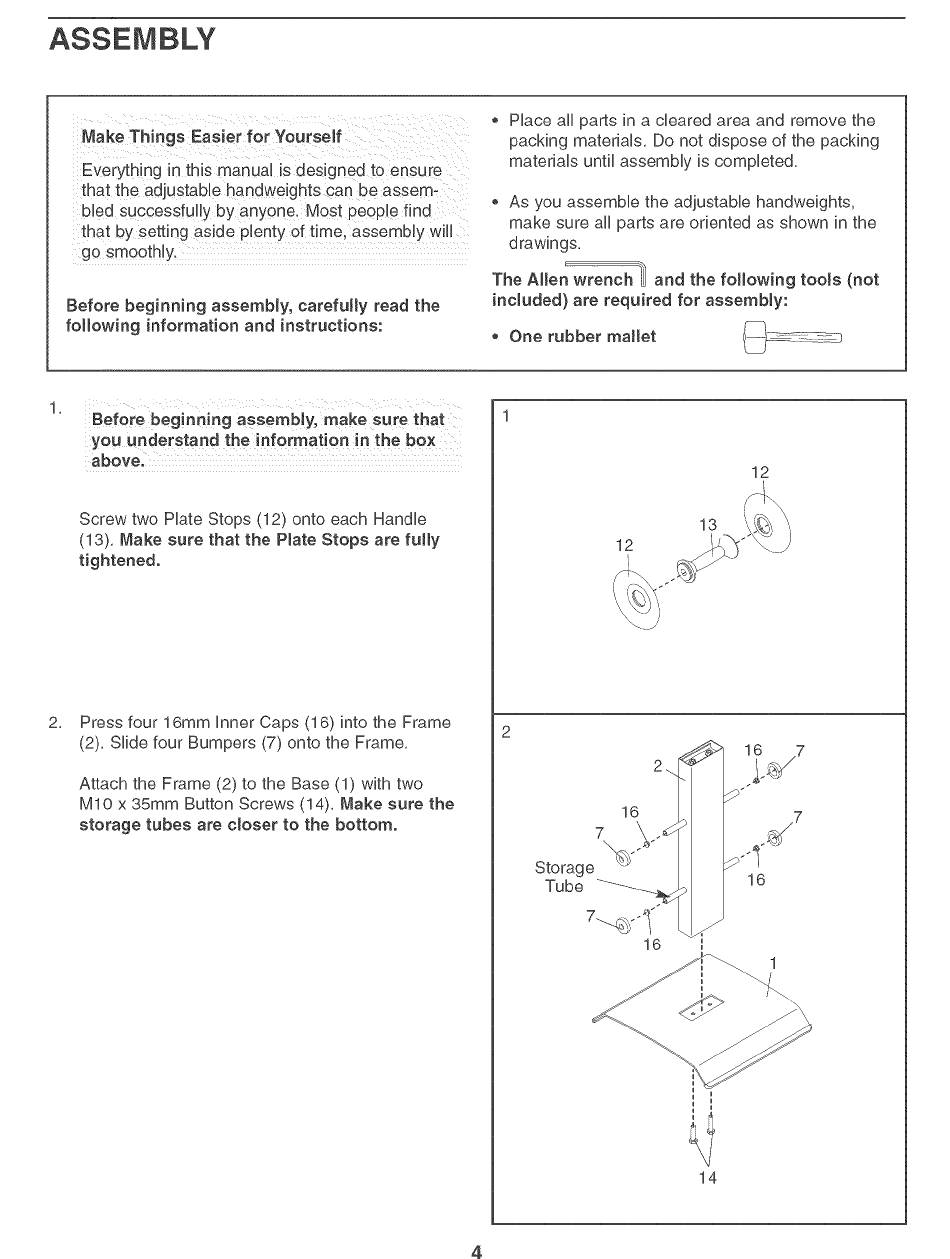

ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the adjustabb handweights can be assem-
bbd successfully by anyone, Most peopb find
that by setting aside pbnty of time. assembly wiiI
go smootMy.
Before beginning assembly, carefully read the
following information and instructions:
Hace aH parts in a cleared area and remove the
packing materiab, Do not dispose of the packing
materiaUs until assemMy is compbted,
o As you assemble the adjustable handweights,
make sure all parts are oriented as shown in the
drawings.
%
The AHen wrench H and the following tools (not
included} are required for assembly:
One rubber mallet
1,
2,
Before beg!nn!ng assembly, make sure that
you understand the informat!on in the box
above.
Screw two Hate Stops (12) onto each Handle
(13), Make sure that the Plate Stops are fully
tightened.
Press four 16mm inner Caps (16) into the Frame
(2), Slide four Bumpers (7) onto the Frame,
Attach the Frame (2) to the Base (1) with two
MIO x 35mm Button Screws (14), Make sure the
storage tubes are closer to the bottom.
12
13
12
\
\
7
Storage
Tube
16
16
16
1
14
4
