(illustrated in Figure 16). The brake simply clamps onto the axle. To release the brake,
unscrew the handle anticlockwise. To apply the brake, screw the handle clockwise.

Pushrod Instructions

When feeding the pushrod into the cage, align the pushrod neatly and try not to cross it over.
This will reduce the risk of damage and an imprecise meterage reading.

Locator Sonde

A sonde locator for the correct frequency will need to be purchased separately to use this
function. Contact Scanprobe Techniques for further details on all locator products or visit the
website www.scanprobe.com.
a. CANbus Sonde
On CANbus Maxprobe systems, the sonde is activated and disactivated using
the "Sonde On/Off" button on the CCU. The frequency of the sonde can be
changed between 512Hz and 33kHz using the CCU settings.
b. Non CANbus Sonde
On all other Maxprobe systems, the sonde is activated and disactivated using
the sonde button on the side of the coiler (see Figure 17). Pressing the button
will toggle the sonde on and off. The sonde button has a collar that will
illuminate either red or blue when the sonde is powered on.

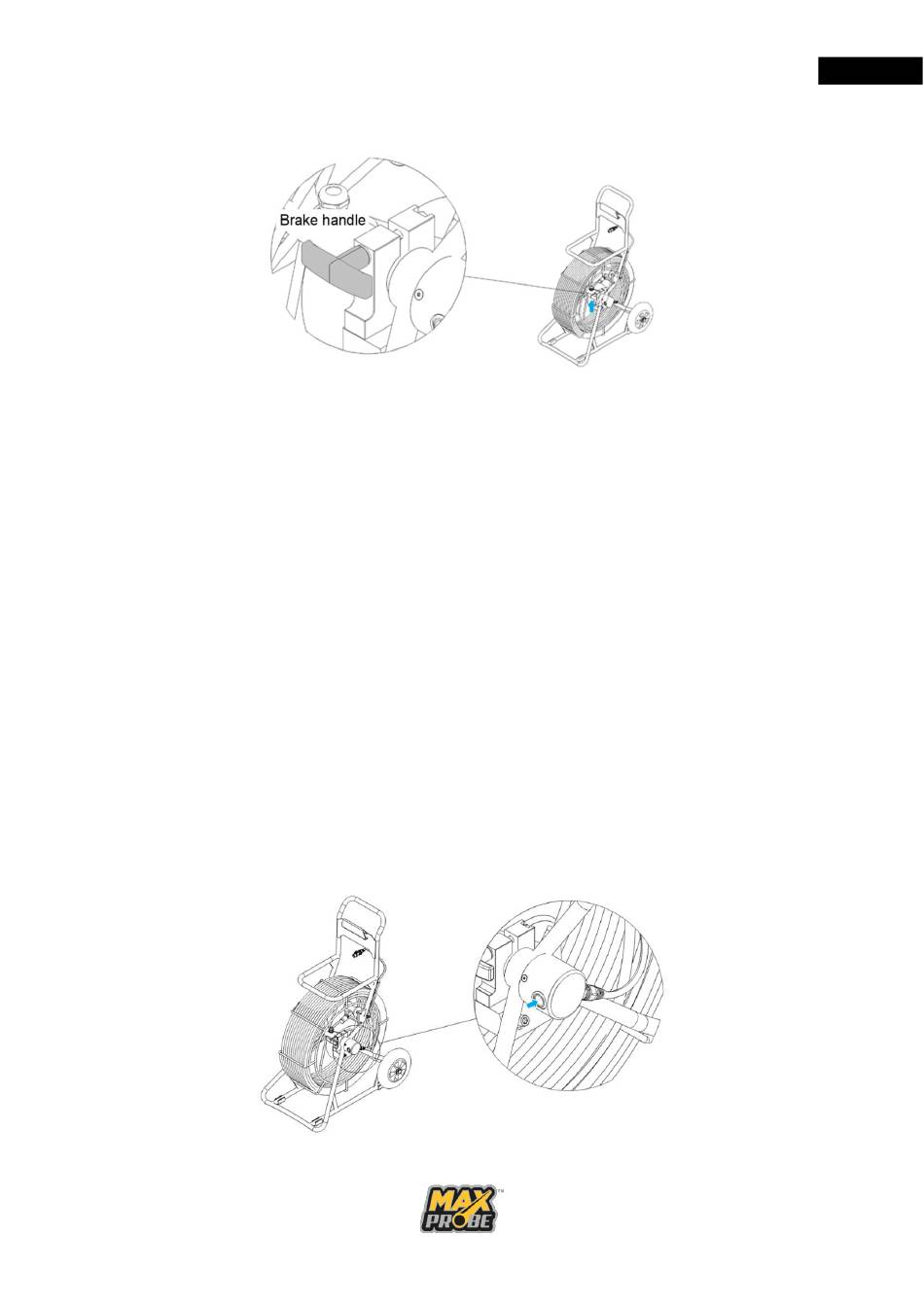

Figure 16: Coiler Brake Handle

Figure 17: Sonde Activation Button
