The black bar down the right-hand side of the screen is used to display a range of icons to
indicate the status of the system (see Table 1). The current date and time is shown towards
the top of this icon bar below the Survey Mode icon.

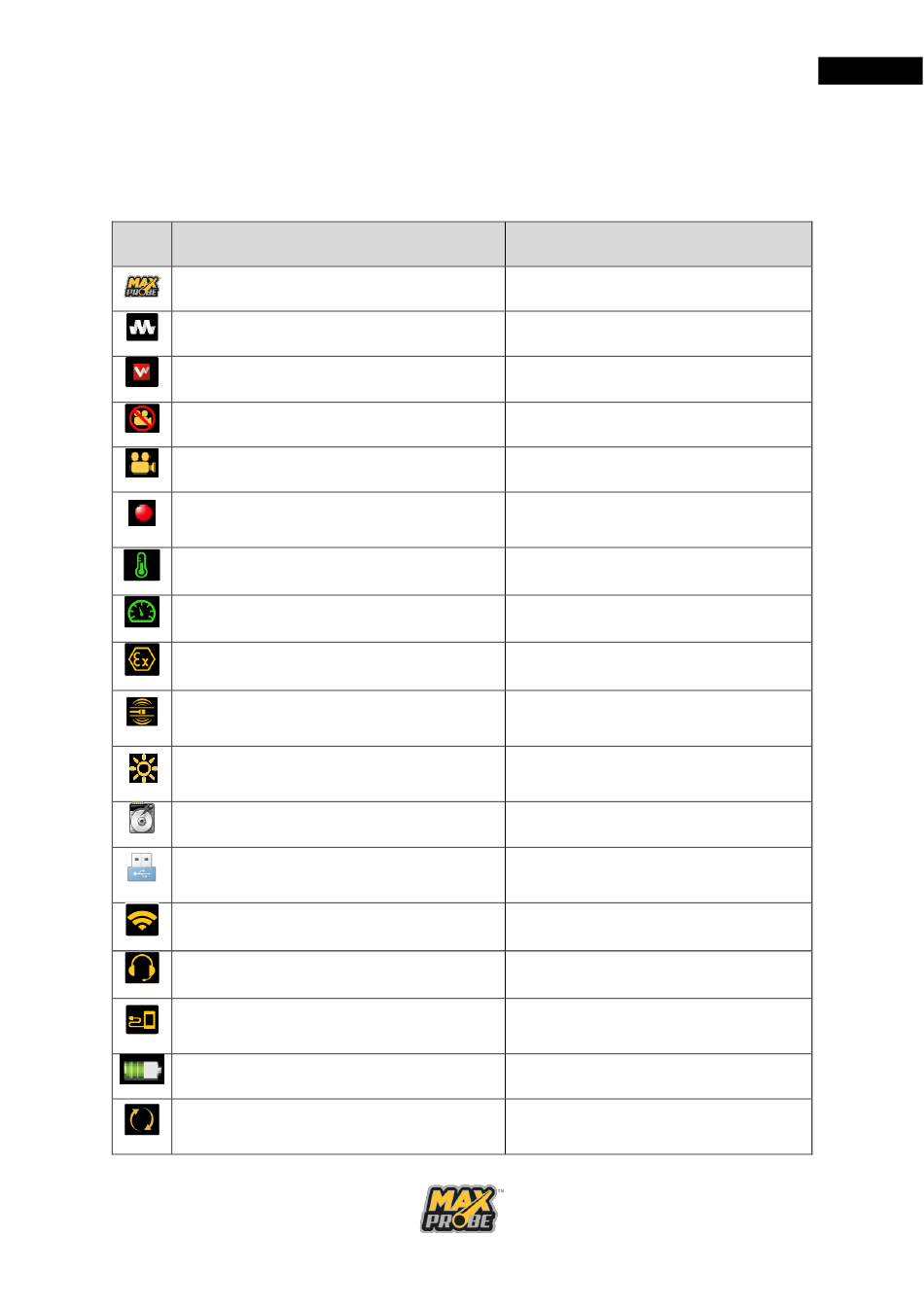

Icon
Basic Survey Mode
Mina software reporting active
WinCan software reporting active
No camera detected
Camera detected
Video recording in progress
Temperature status
Pressurisation status
ATEX monitoring active
Sonde On (frequency will appear beneath
the icon)
LED Status
Internal storage
USB storage
Wi-fi connectivity and signal strength
Headset present
Wired connection activated
Battery Status
Software loading
Table 1: Maxprobe CCU Icons
Meaning
Maxprobe User Manual
Notes
Default Survey Mode
mina Survey Mode
WinCan Survey Mode
Only appears when a recording is in
progress
CANbus Systems Only
CANbus Systems Only
CANbus Systems Only
CANbus Systems Only
Illustrates the level of brightness for
the camera lights.
Default storage
Only when USB storage has been
plugged in
Only when connected to a compatible
device through wired link (USB cable)
Current battery status.
Only appears on the WiFi menu while
checking for available networks
