Caution: Risk of Damage
Do not force the opened lid passed the 90° position. While the Maxprobe CCU is
a rugged construction, applying excessive force to the opened lid (for example,
by leaning on the opened lid or placing heavy objects on the keypad) may
damage the hinges and prevent the box from properly sealing when closed. This
may allow water to get into the Maxprobe CCU and reduce the service life of this
product.
The screen displays the feed from the camera and a series of status icons. To the right of
the screen is a silicone rubber flap covering two USB sockets, a 3.5mm headphone socket
and a 3.5mm microphone socket (see Figure 4). These four sockets are not weatherproof,
so avoid using these sockets in heavy rain. When these are not in use, ensure the silicone
flap is securely fitted to prevent water ingress.
The serial number and product details of the Maxprobe CCU can be found on the reverse of
the control box enclosure (see Figure 5). The connectors are found below the product label.
These connectors are weatherproofed and rated to IP56, but when not in use, the rubber
transit covers should be fitted to minimise the chance of dirt and water ingress.
Version 2.0
22 November 2023

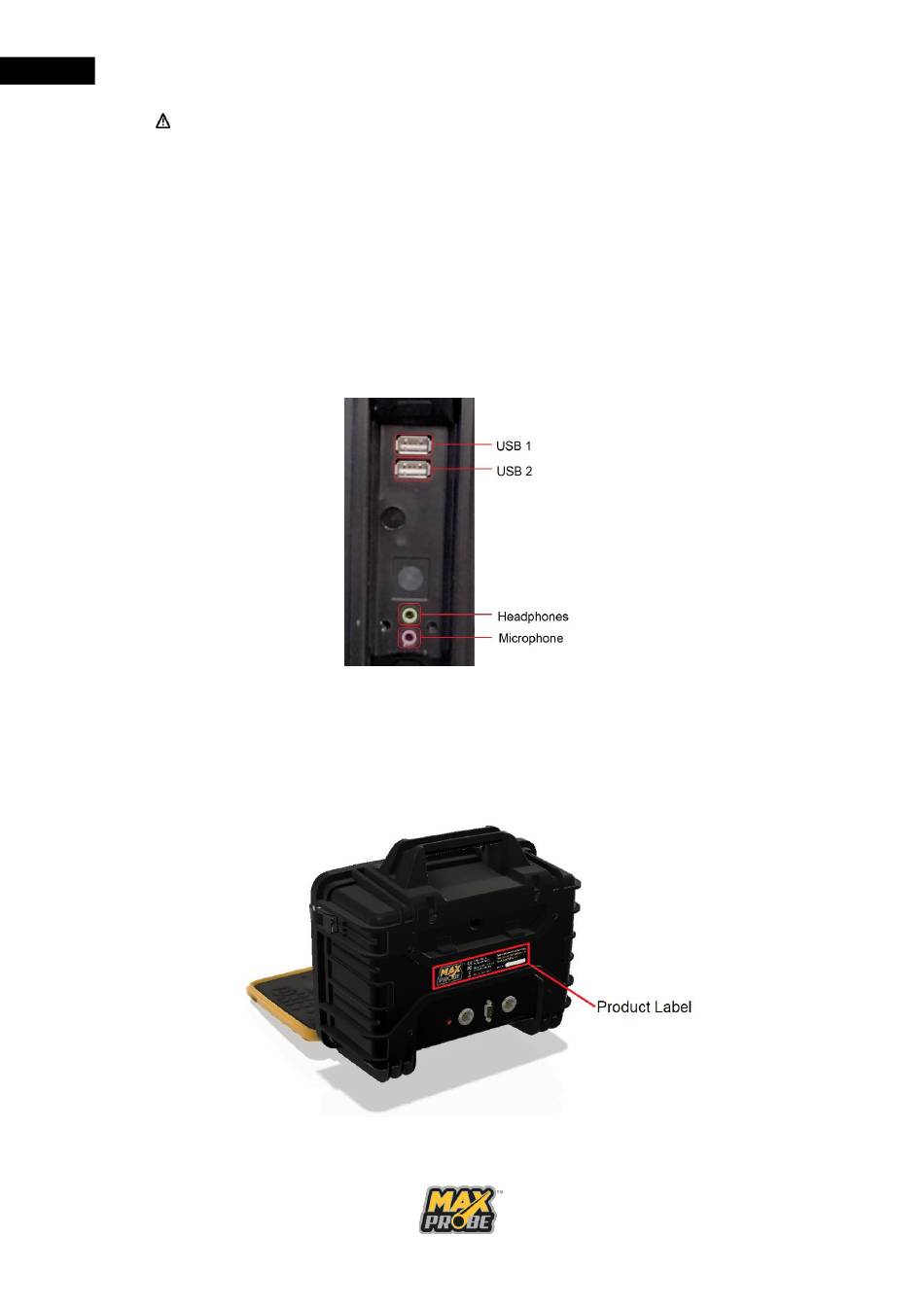

Figure 4: CCU Front Connectors

Figure 5: Maxprobe Camera Control Unit Rear
