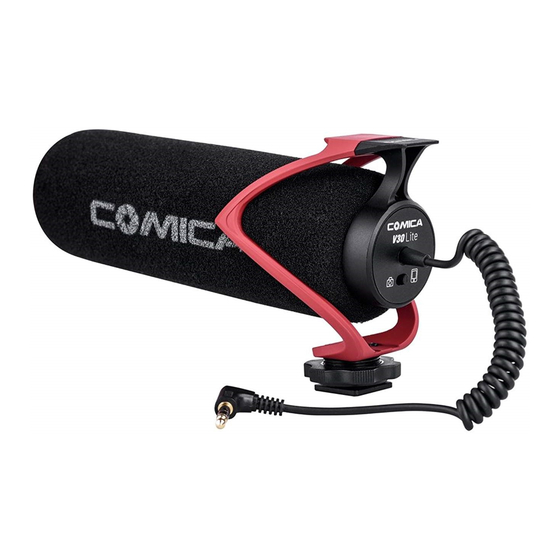

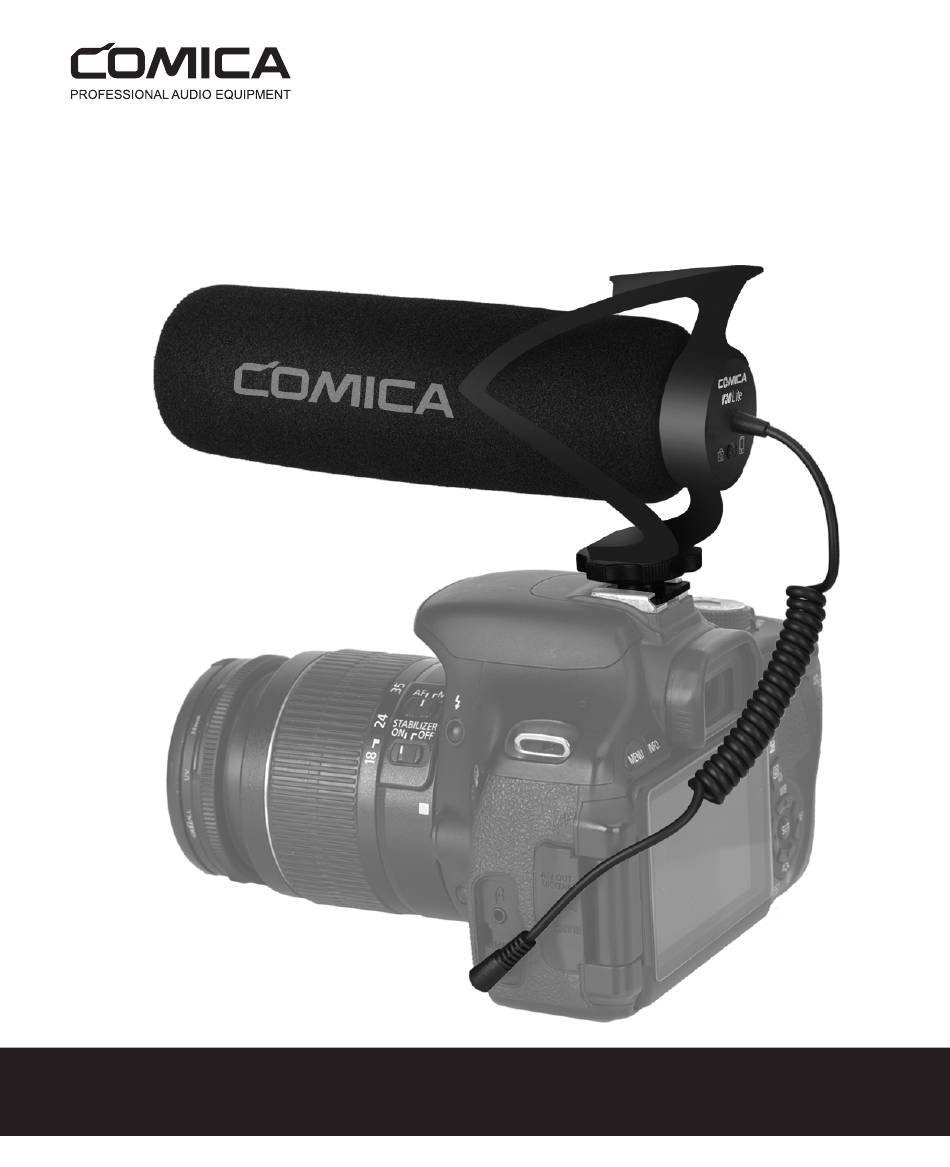

- Page 1 CVM-V30 LITE Super Cardioid Condenser Lite Microphone USER MANUAL...
- Page 2 Foreword Thanks for purchasing COMICA CVM-V30 LITE Super-cardioid condenser lite microphone. Comica CVM-V30 LITE Super-cardioid condenser lite microphone, suit for camera, smartphone. Meanwhile the Microphone is designed with excellent shock mount, no battery drive, super low noise electronics, super anti-interference, cold-shoe design with 1/4 thread at the bottom, compact and light.
- Page 3 Notice When used with smartphone, please purchase separate audio cable adapter with corresponding interface. For the Android system smartphone, the microphone works well in default audio mode, but default video mode will happen with incompatibility trouble while working with some smartphone; (Then we suggest you try the 3rd party’s video APP);...
-
Page 4: Main Features
.Super Anti-interference .Cold-shoe Design with 1/4 Thread at the Bottom .Compact and Light, Easy to Carry Support Low Self-noise Super Super-Cardioid Excellent Camera&Smartphone Anti-Interference Shock-absorbing Package Content CVM-V30 LITE Super Cardioid Condenser Lite Microphone USER MANUAL Microphone User Manual Warranty Card... -
Page 5: Components Introduction
Components Introduction Microphone Microphone Interference Tube Shock Mount Locking Screw Cold-shoe Bracket 1/4 Screw Hole Smartphone/Camera switch 3.5mm Audio Output Line... - Page 6 Installation and Operation 1.Use with Camera 1.1 Attach the microphone cold shoe bracket to the camera, fasten the Locking Screw .
- Page 7 1.2 Connect the microphone’s 3.5mm audio output line and Camera.
- Page 8 1.3 Set the smartphone/camera switch to the left camera mark. switch to the left camera mark...
- Page 9 2. Use with Smartphone 2.1 Mount microphone cold shoe bracket to accessories with cold shoe interface (recommended VF-H1 ), fasten the Locking Screw.
- Page 10 2.2 Connect the microphone’s 3.5mm audio output line and smartphone.
- Page 11 2.3 Set the smartphone/camera switch to the right smartphone mark. switch to the right smartphone mark...
- Page 12 Tech Parameters Polar Pattern Super Cardioid Frequency Range 40Hz~20KHz Output Impedance 2.2kΩ Max.SPL >100dB Sensitivity -34dB±3dB Signal to Noise Ratio >68dB Weight Dimension 160*50.8*86mm...
- Page 13 Email: support@comica-audio.com...
