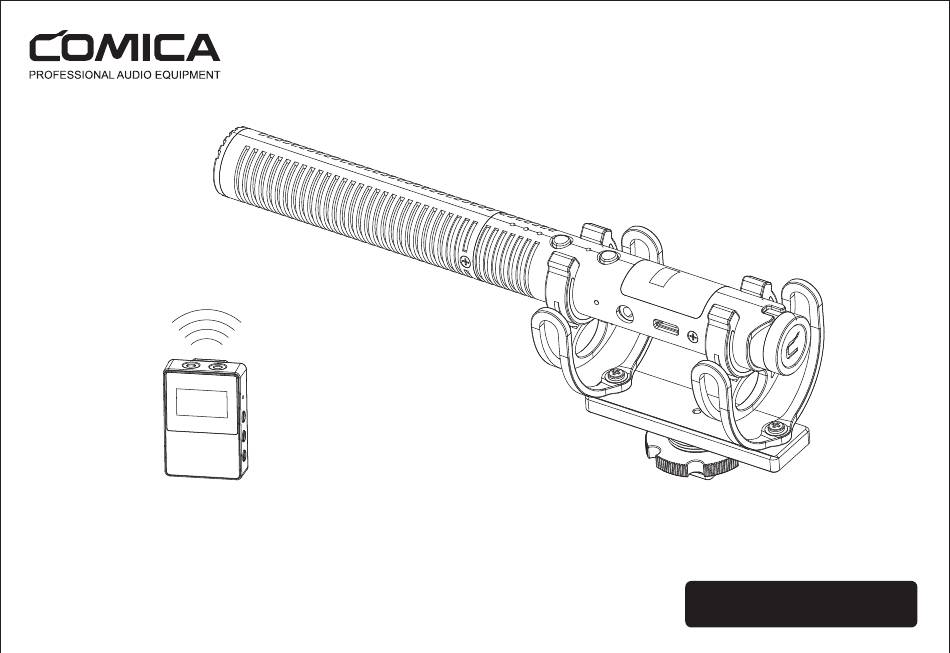

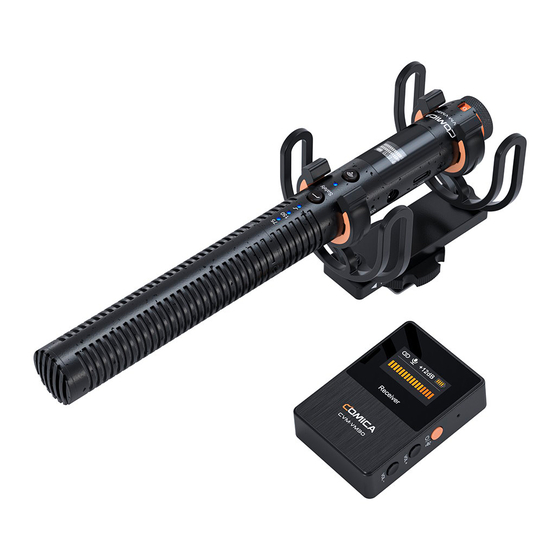

  • Page 1 CVM-VM30 2.4G Super Cardioid Condenser Wireless Shotgun Microphone User Manual...
  • Page 2 Foreword Thanks for purchasing COMICA CVM-VM30 2.4G Super Cardioid Condenser Wireless Shotgun Microphone. Main Features ·Groundbreaking Shotgun Microphone Integrated Wireless Module ·Support Gain Control, Safety Mode, Real-time Monitor and Muting ·Support Wired/Wireless Dual Modes for One-button Switch ·OLED Screen for Monitoring and Visual Operation ·48khz/24bit Super Cardioid Recording, Broadcasting-level Sound Quality...

  • Page 3: Main Parts

    Shotgun Microphone(Transmitter) Receiver Accessories： 2 in 1 3.5mm TRS-TRS 3.5mm TRRS-TRRS Microphone Clip Shock Mount Charging&Output Cable Audio Output Cable Audio Output Cable CVM-VM30 2.4G Super Cardioid Condenser Wireless Shotgun Microphone User Manual Windscreen Windmu Carry Case User Manual Warranty Card...
  • Page 4 Components and Instruction Microphone (Transmitter) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ 1. Mic Capsule 2. Low Cut Indicator: Corresponding indicator lights up blue when turned on 3. High-frequency Boost Indicator: Blue light on when turned on 4.
  • Page 5 Screen Display Instruction： Wireless Mode O Pairing... Paired Safety Mode Battery Power Normal Mode Normal Track Audio Audio Dynamic Bar Dynamic Bar Safety Track （Safety Mode） （Normal Mode）...
  • Page 6 Receiver ① ② ④ ⑤ ③ ⑦ ⑥ 1. 3.5mm Monitoring Port: Plug in 3.5mm TRS/TRRS headphones for monitoring 2. 3.5mm TRS Audio Output Port: Connect to camera/smartphone/computer via 3.5mm audio cable 3. USB-C Charging Port: Charging with the 2 in 1 charging&output cable 4.
  • Page 7 Screen Display Instruction： Unpaired Muting Paired Normal Working Output Gain Level Battery Power Audio Dynamic Bar...
  • Page 8 Installation and Usage Wired Mode 3.5mm Analog Output Connect the shotgun microphone to the camera/smartphone/computer through the 3.5mm audio cables TRRS-TRRS audio cable for cameras/smartphones/computers; TRS-TRS audio cable for some cameras not compatible with TRRS-TRRS audio cable; For XLR interface devices, please purchase the 3.5mm TRS-XLR audio cable yourself...
  • Page 9 USB Digital Output Connect the shotgun microphone to the smartphone or computer through the 2 in 1 charging&output cable and related OTG audio adapter cable Adapter Adapter Magnetic Ring It’s recommended to insert the USB end with the magnetic ring into the microphone and connect the other end to the smartphone/computer； When using with Lightning interface devices, please purchase a USB-Lightning adapter/cable that supports the OTG function...

  • Page 10: Wireless Mode

    Wireless Mode Connection Paired (The transmitter and receiver are paired by default at the factory) Turn on the receiver and switch the transmitter into wireless mode by long pressing its RF button, then they will automatically connect. RF Button Working Indicator Light...
  • Page 11 Unpaired (Re-pairing is required when the connection fails. Please follow the method below) 1. Keep the transmitter and receiver within 1m range, turn on the receiver and switch the transmitter into wireless mode by long-press its RF button; RF Button 2.
  • Page 12 Usage Transmitter Use with arm stands, boom poles, and tripods...
  • Page 13 Receiver Connect the receiver to the camera/smartphone/computer through the 3.5mm audio cable; Monitoring according to individual needs When using the microphone in wireless mode for mobile phones and laptops, please prepare a 3.5mm TRS-TRRS audio cable yourself...
  • Page 14 Specifications 2400~ 2483.5MHz Wireless Band Receiving Sensitivity -86dBm Antenna Transmitter:Ceramic Antenna; Receiver:PCB Antenna Sound Delay <20ms Polar Pattern Super Cardioid Frequency Response 20Hz~20kHz Low-cut 75Hz,150Hz High-frequency Boost 10kHz Output Impedance Sensitivity -38dB ~ -18dB re 1V/Pa(12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz 75dB SPL(A-weighted,as per IEC651) 19dB SPL(A-weighted,as per IEC651) Equivalent Noise...
  • Page 16 CVM-VM30 2.4G超心型多功能无线枪式麦克风 用户使用手册...
  • Page 17 前 言 感谢您购买科唛COMICA CVM-VM30 2.4G超心型多功能无线枪式麦克风 产品主要功能 ·首创枪麦集成无线射频模块，有线无线双模式 ·枪麦机身OLED显示屏，可视化操作 ·48kHz/24bit录音，超心型指向，广播级音质 ·内置可充电锂电池，支持边充边用 ·数字/模拟双输出模式，广泛兼容相机、手机、电脑 ·长续航，有线/无线模式分别高达50小时/7小时 ·3.5mm智能感测输出，支持自动识别开关机 ·低音频延迟< 20ms，无线传输距离高达100m（空旷环境） ·75/150Hz两档低切，一档高频提升 ·独特减震支架及高密度防风毛，有效滤除噪音 ·支持增益可调、安全音轨、实时监听等多功能 ·全金属结构，超强屏蔽，稳固耐用 注意事项 当需要长时间使用时，可连接外部移动电源实现边充边用；不支持AC/DC电源供电，否则会产生噪音 使用时避免任何物体遮挡天线位置，以免信号不良 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱 如拾音距离较近或于户外使用时，请套上麦克风防风毛，防止声音爆裂或降低风噪 不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险 天线位置 尽量保持面对面，避免背对的情况，否则容易产生断点 使用时避免任何物体遮挡天线位置，以免信号不良...
  • Page 18 包装清单 主体： 麦克风(发射器) 接收器 配件： 3.5mm TRS-TRS音频线 3.5mm TRRS-TRRS音频线 二合一充电&输出线 话筒夹 减震支架 防风棉 CVM-VM30 2.4G Super Cardioid Condenser Wireless Shotgun Microphone User Manual 防风毛 卡针 便携包 说明书 保修卡...
  • Page 19 部件介绍及说明 麦克风（发射器） ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ 1. 拾音头 2. 低切指示灯：开启时相应低切指示灯亮蓝色 3. 高频提升指示灯：开启时亮蓝灯 4. 模式切换按键：短按切换75/150Hz两档低切和高频提升功能；长按开启安全音轨（安全音轨模式仅适用于有线模式下） 5. 工作指示灯：有线模式下，绿灯常亮；无线模式下，未配对时蓝灯闪烁，配对成功时蓝灯常亮 6. RF按键：无线模式下，长按开启/关闭麦克风；有线模式下，长按开启/关闭无线模式 7. 增益调节旋钮：旋转调节麦克风增益 8. 配对孔：无线连接出现异常时，使用卡针插入配对孔即可重新配对 9. 3.5mm输出口：支持TRRS和TRS输出 10. USB-C充电/输出接口：插入二合一充电/输出线进行充电或数字输出音频...
  • Page 20 屏显说明： 无线未开启 配对中... 已配对 安全模式 电池电量 正常模式 正常音轨 音频动态条 音频动态条 安全音轨 （正常模式） （安全模式）...
  • Page 21 接收器 ① ② ④ ⑤ ③ ⑦ ⑥ 1. 3.5mm耳机监听插孔：插入3.5mm TRS/TRRS耳机进行监听 2. 3.5mm TRS音频输出插孔：通过3.5mm音频连接线连接相机/手机/电脑 3. USB-C充电插口：通过二合一充电/输出线进行充电 4. 复位孔：如出现死机或开不了机等异常现象，使用卡针插入复位孔即可复位 5. 电源/静音按键：长按开机/关机，短按开启/关闭静音功能 6. 增益调节/屏幕翻转按键：短按调节增益，长按屏幕翻转 7. 背夹...
  • Page 22 屏显说明： 未配对 静音 已配对 麦克风正常工作 输出增益等级 电池电量 音频动态条...
  • Page 23 安装与使用方法 有线模式 3.5mm模拟输出 通过3.5mm音频连接线连接枪麦和相机/手机/电脑 TRRS-TRRS音频线通用于相机/手机/电脑，TRS-TRS音频线适用于部分无法兼容TRRS-TRRS音频线的相机；用于XLR接口的设备时，请单独购买 3.5mm TRS-XLR音频线...
  • Page 24 USB数字输出 通过二合一充电&输出线和相关OTG音频转接线/转接头连接枪麦和手机/电脑 转接头 转接头 磁环 为了更好的使用体验，建议带磁环的一端插入麦克风，另一端口连接手机/电脑； 搭配Lightning接口设备使用时，请自行购买支持OTG功能的USB-Lightning转接线/转接头...
  • Page 25 无线模式 连接 已配对（出厂时发射器与接收器默认配对） 将接收器开机并长按发射器RF按键开机并进入无线模式，即可自动连接。 RF按键 工作指示灯...
  • Page 26 未配对（连接不上时需重新配对，方法如下） 1. 保持发射器和接收器在一米范围内，将接收器开机并长按发射器RF按键使其开机并进入无线模式； RF按键 2. 使用卡针短按发射器配对孔使其进入无线配对状态，此时工作指示灯闪烁蓝灯； 配对孔 工作指示灯闪烁蓝灯 3. 配对时屏幕无线图标变成已配对图标；配对成功后发射器工作指示灯蓝灯常亮。 已配对 工作指示灯蓝灯常亮...
  • Page 27 使用 麦克风（发射器） 可搭配悬臂支架，挑杆，三脚架使用...
  • Page 28 接收器 通过3.5mm音频连接线连接接收器和相机/手机/电脑；根据个人需求选择是否进行监听 无线模式下接收器用于手机和笔记本电脑时，请单独购买3.5mm TRS-TRRS音频线...
  • Page 29 技术规格 2400 ~ 2483.5MHz 无线频段 -86dBm 接收灵敏度 枪麦:陶瓷天线; 接收器:PCB天线 天线类型 <20ms 无线延迟 超心型 麦克风指向性 20Hz ~ 20kHz 频率范围 75Hz, 150Hz 低切 高频提升 10kHz 输出阻抗 灵敏度范围 -38dB ~ -18dB re 1V/Pa(12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz 信噪比 75dB SPL(A-weighted,as per IEC651) 19dB SPL(A-weighted,as per IEC651) 等效噪声...
