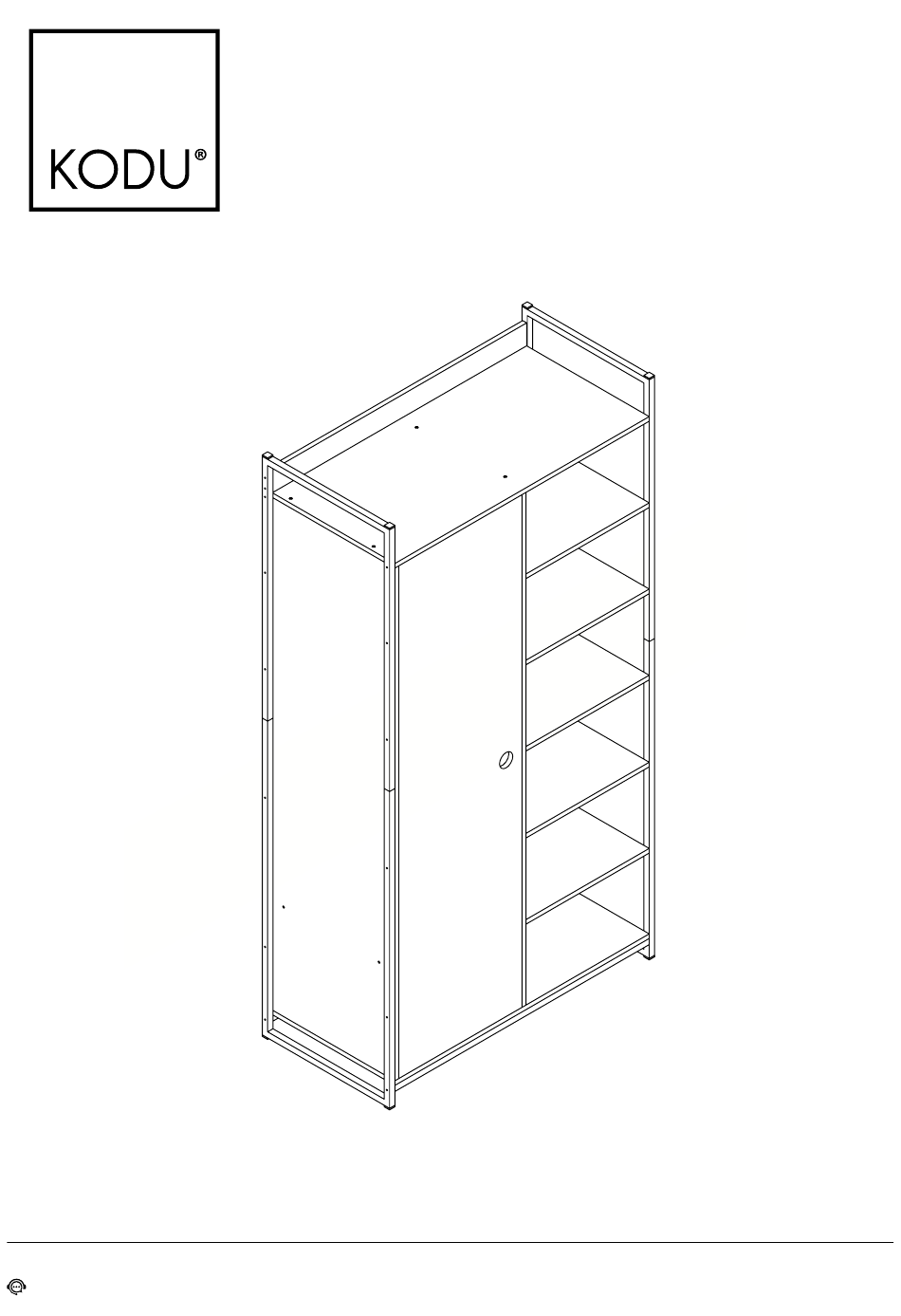

- Page 1 WARDROBE 6 SHELVES 1 DOOR ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 2 Please do not drag and pull your furniture. ASSEMBLY REQUIREMENTS Equipment: phillips head screwdriver, flat head screwdriver 2 x adults required 2m x 2m assembly space required 1.5 hour assembly time approx. 2 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 3 Quickfit head should be in the centre of the cam lock when the two panels are joined. Turn cam lock clockwise to tighten. Cam lock should be inserted before quickfit. 3 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
-
Page 4: Hardware List
2 x J 2 x K 2 x L Bolt Screw Wall Bracket Wall Plug 1 x M 3 x N 2 x O Allen Key Hinge Shelf Support 4 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362... -
Page 5: Parts List
PARTS LIST 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 6 PCS 5 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362... - Page 6 PARTS LIST 5 PCS 1 PC 1 PC 2 PCS 2 PCS 1 PC 1 PC 1 PC 1 PC 6 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 7 Fix shelf supports (O) to parts 6 and 7 using screws (D). D x 6 Attach magnetic catch (E) to part 7 using screws (D), as shown. E x 1 O x 2 7 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 2 Fix parts 11 and 13 to parts 6 and 7 using screws (C), as shown. C x 12 8 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 3 Fix part 9 to part 10 using screws (C), as shown. C x 10 9 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 4 Fix parts 9 to part 10 to part 7 using screws (C), as shown. C x 22 10 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 11 ASSEMBLY INSTRUCTIONS STEP 5 Fix part 18 to part 12 using bolt (H) and allen key (M), as shown. H x 1 M x 1 11 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 6 Fix parts 5 and 12 to parts 6, 7 and 9 using screws (C), as shown. C x 10 12 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 13 STEP 7 Fix part 8 to part 5 using screws (C). A x 4 Fix parts 14 to part 12 using screws (A), as shown. C x 2 13 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 8 Attach part 16 to assembled unit using nails (G), as shown. G x 24 14 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 15 Fix part 1 to part 2 using bolts (I) and allen key (M). I x 4 Fix part 3 to part 4 using bolts (I) and allen key (M), as shown. M x 1 15 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 16 Fix parts 3 and 4 to parts 9, 10 and 14 using screws (C), bolts (H) and allen key (M), C x 26 as shown. H x 2 M x 1 16 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 17 Fix parts 1 and 2 to parts 5, 6 and 14 using screws (A) screws (C), bolts (H) A x 8 and allen key (M) as shown. C x 4 H x 2 M x 1 17 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 18 Attach hinges (N) to part 15 using screws (B). B x 6 Attach magnetic catch (F) to part 15 using screw (D), as shown. D x 1 F x 1 N x 3 18 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 19 Attach part 17 to shelf supports (O). B x 12 Attach hinge (N) to part 6 using screws (B), as shown. B B B B B B B B B B B B 19 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 20 Should you choose not to affix the product to the wall, serious injury may be K x 2 caused if the product tips over. L x 2 20 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 21 ASSEMBLY INSTRUCTIONS STEP 15 Maximum recommended weight is 5kg per shelf | 10kg hanging rack. Your wardbrobe is ready for use. 21 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
- Page 22 TV & HiFi than the plasterboard. Always check the speakers and satellite dishes, etc. fixing is secure to the retaining wall. 22 of 22 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2331 UB2362...
