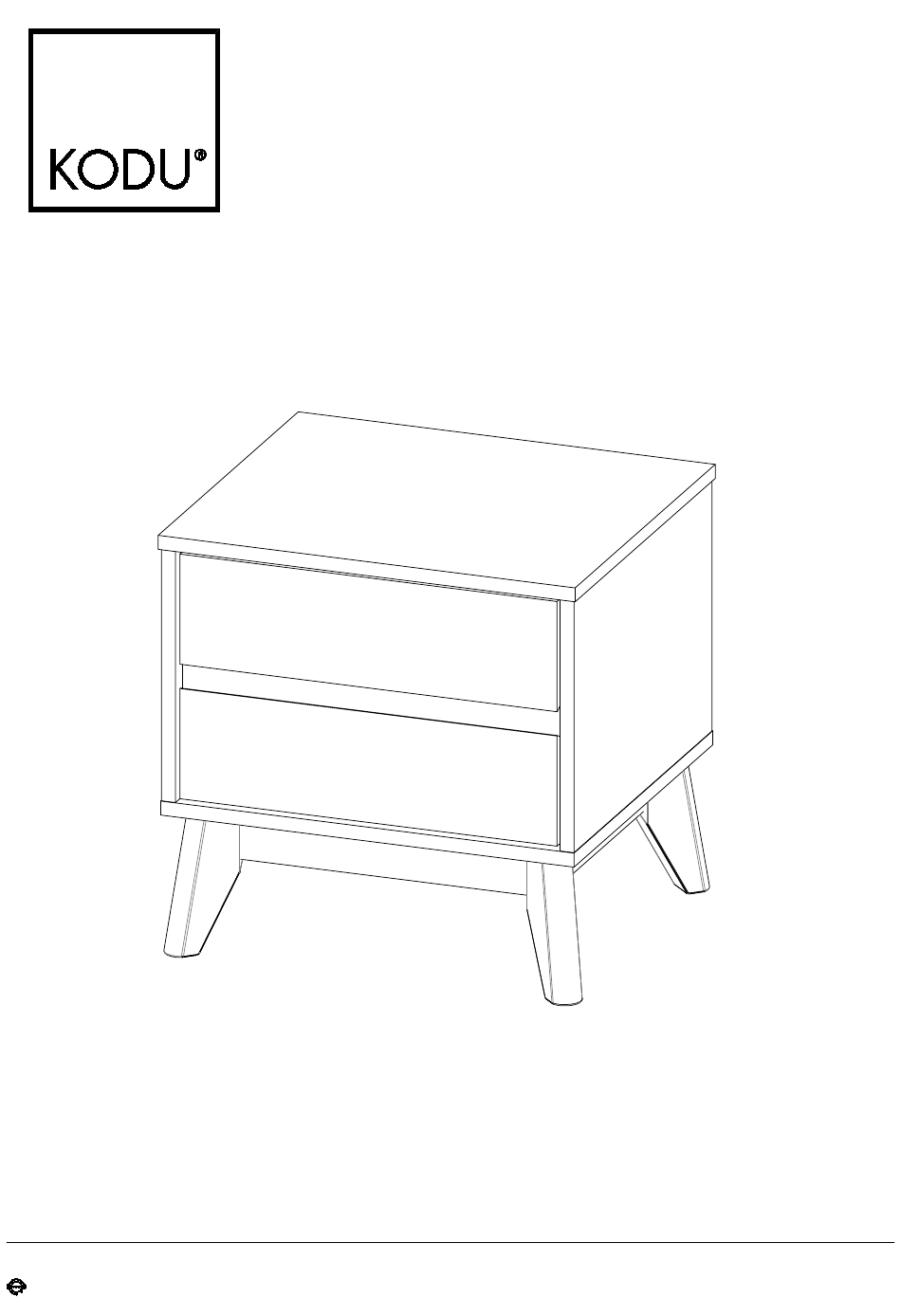

- Page 1 BEDSIDE 2 DRAWER ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 2 Please do not drag and pull your furniture. ASSEMBLY REQUIREMENTS 2 x adults required 2m x 2m assembly space required 1 hour assembly time approx. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 3 WRONG Quickfit head should be in the centre of the cam lock when the two panels are joined. Cam lock should be inserted before quickfit. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 4 DRAWER SLIDE GUIDE of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
-
Page 5: Hardware List
8 x K 12 x M 2 x N 2 x O 2 x L Flat Nail Outer Drawer Runner Inner Drawer Runner L Bracket Washer of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982... -
Page 6: Parts List
PARTS LIST 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 4 PCS 2 PCS 2 PCS 4 PCS of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982... - Page 7 Insert wooden dowels (D) to part 3, 4, 5 and 6. B x 6 L x 2 Fix L bracket (L) to part 6 using screws (G) as shown. D x 16 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 8 The most common cause of drawers being misaligned is at the drawer assembly and runner installation stage. Please ensure all instructions and screw hole positions are followed as indicated to avoid misaligned drawers. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 9 Attach parts (3) and (4) to parts (5) and (6), as shown. G x 2 Fix L bracket (L) to parts 3, 4 and 6 using screws (G), as shown. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 10 Attach part 1 to parts 3, 4 and 5. C x 6 Turn cam locks clockwise to tighten. Attach cam lock covers (C), as shown. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 11 STEP 5 Fix part 2 to parts 3, 4 and 5 using screws (E) and allen key (F), as shown. E x 6 F x 1 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 12 Fix legs 12 to part 2 using bolts (I), spring washers (J) and washers (K), F x 1 tighten with allen key (F), as shown. I x 8 J x 8 K x 8 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 7 Fix parts 9 to parts 7, 8 and 10 using screws (H), as shown. H x 16 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 8 Fix parts 11 to parts 7, 8 and 10 using nails (M), as shown. M x 12 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 15 The most common cause of drawers being misaligned is at the drawer assembly and runner installation stage. Please ensure all instructions and screw hole positions are followed as indicated to avoid misaligned drawers. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 16 ASSEMBLY INSTRUCTIONS STEP 10 Fit drawer to assembled unit, as shown. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
- Page 17 ASSEMBLY INSTRUCTIONS STEP 11 Maximum recommended weight is 10 kg on top, 5 kg on each shelf. Your product is ready for use. of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB1410 UB1605 UH6002 UH7154 UH7982...
