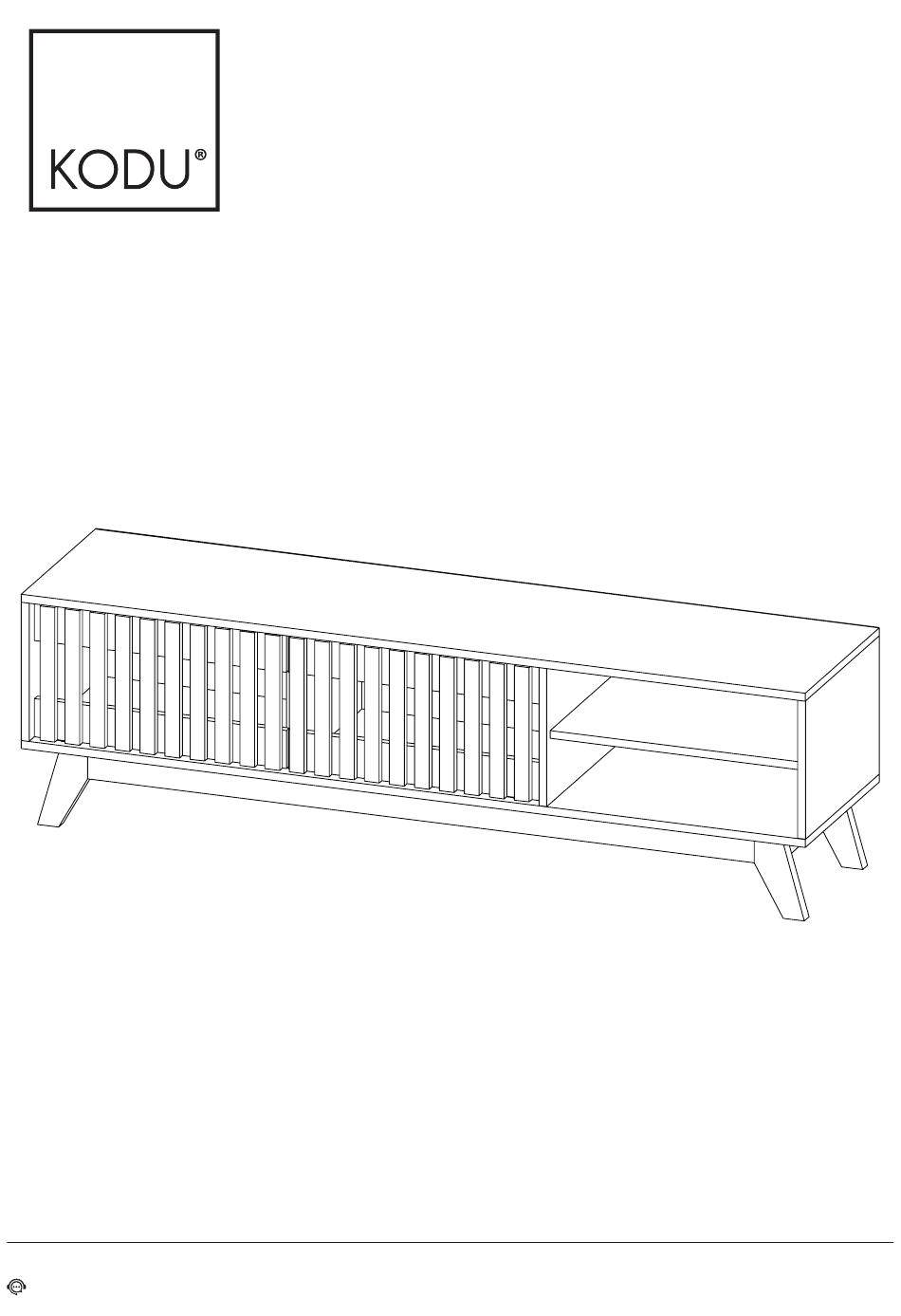

- Page 1 TV UNIT ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 2 Please do not drag and pull your furniture. ASSEMBLY REQUIREMENTS Equipment: phillips head screwdriver, flat head screwdriver 1 x adult required 1m x 1m assembly space required 1 hour assembly time approx. 2 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 3 Quickfit head should be in the centre of the cam lock when the two panels are joined. Turn cam lock clockwise to tighten. Cam lock should be inserted before quickfit. 3 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
-
Page 4: Hardware List
30 x J 5 x K 4 x L Screw Nail Nail leg Shelf Support 4 x M 2 x N 2 x O Door Stopper Magnet Magnet 4 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163... -
Page 5: Parts List
PARTS LIST 5 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163... - Page 6 Insert cam locks (A) to parts 12 Insert quickfit screws (B) into part 1. B x 8 Attach magnet lock (N) using a hammer, as shown. D x 16 N x 2 6 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 7 ASSEMBLY INSTRUCTIONS STEP 2 Insert quickfit screws (B) and wooden dowels (D) into parts 10 and 11. B x 4 D x 4 7 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 8 Attach parts 3,4,5 and 6 to part 1. C x 8 Turn cam locks clockwise to tighten. Insert covers (C) into cam locks of parts 3, 4, 5 and 6. 8 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Fix part 2 to parts 3, 4, 5 and 6 using screw (E) and allen key (F) E x 8 F x 1 9 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 10 Connect parts 10 and 11 together using parts 12. C x 4 Turn cam locks clockwise to tighten, Insert covers (C) into cam locks of part 12. 10 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 11 ASSEMBLY INSTRUCTIONS STEP 6 Fix part 13 to part 11 using screws (H), as shown. H x 2 11 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 7 Fix assembled parts 10, 11 and 12 to part 2 using screws (I), as shown. I x 14 12 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 8 Fix nail legs (K) to parts 10, 11 and 13, as shown, K x 5 13 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 9 Fix parts 7 to assembly using nails (J), as shown. J x 30 14 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 15 ASSEMBLY INSTRUCTIONS STEP 10 Insert shelf supports (L) to parts 4 and 6, as shown. L x 4 15 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 16 ASSEMBLY INSTRUCTIONS STEP 11 Place parts 8 on top of shelf supports, as shown. 16 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 17 ASSEMBLY INSTRUCTIONS STEP 12 Fix door magnet (O) to parts 9 using screws (G), as shown. G x 4 0 x 2 17 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 18 ASSEMBLY INSTRUCTIONS STEP 13 Fix parts 9 to the assembled unit using door stopper (M) and screws (G), as shown. G x 4 M x 4 18 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
- Page 19 ASSEMBLY INSTRUCTIONS STEP 14 Please note: the maximum recommended weight is 10kg for top and 5kg for shelves. Your TV Unit is ready for use. 19 of 19 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9162 UH9163...
