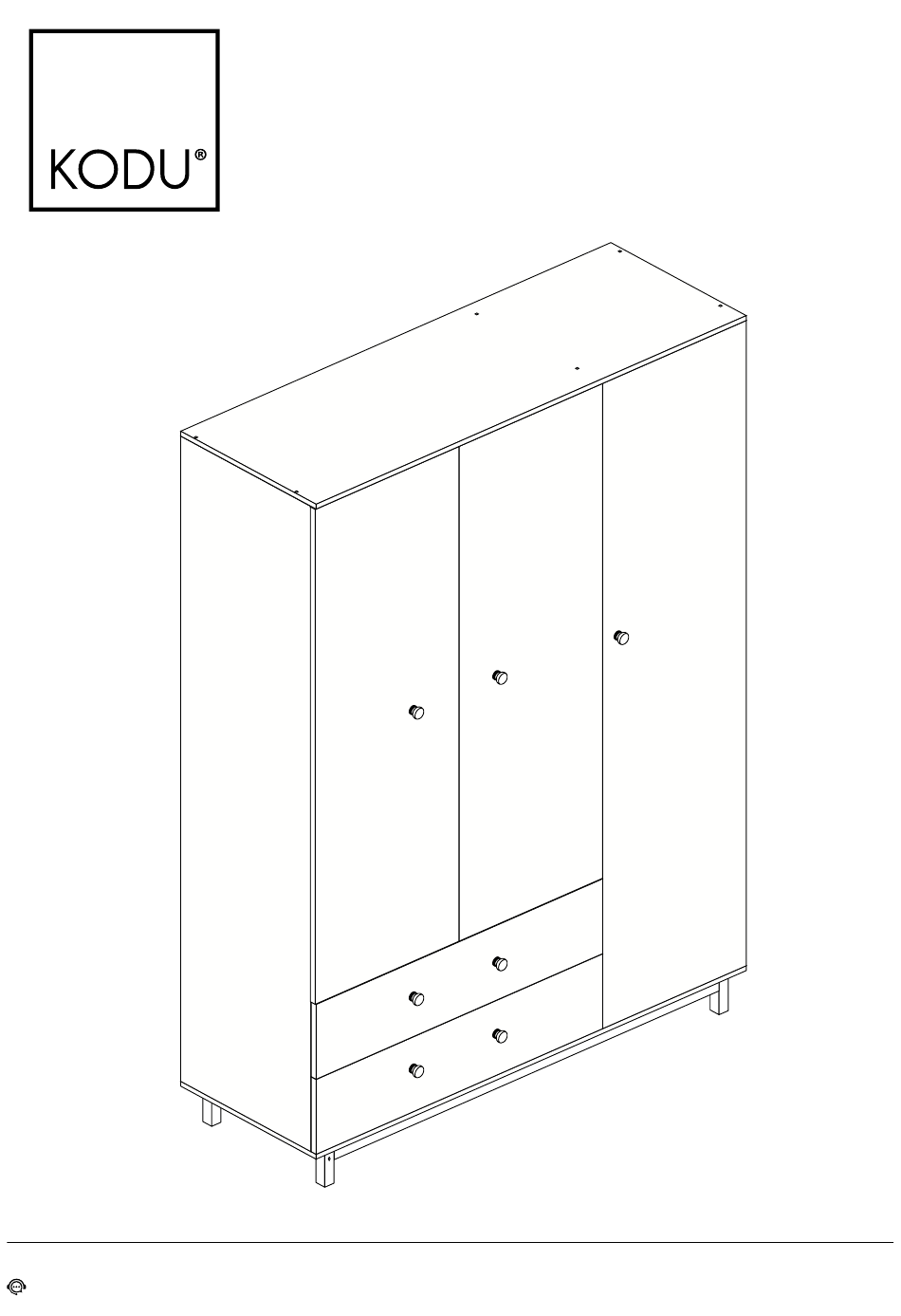

- Page 1 WARDROBE 3 DOORS 2 DRAWERS ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 2 Please do not drag and pull your furniture. ASSEMBLY REQUIREMENTS Equipment: phillips head screwdriver, flat head screwdriver and hammer. 2 x adults required 2m x 2m assembly space required 1.5 hour assembly time approx. 2 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 3 Quickfit head should be in the centre of the cam lock when the two panels are joined. Turn cam lock clockwise to tighten. Cam lock should be inserted before quickfit. 3 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
-
Page 4: Hardware List
16 x L Rod Support Screw Nail Screw 2 x O 2 x P 8 x M 2 x N Shelf Pin Long Wooden Dowel Screw Wall Bracket 4 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282... - Page 5 Allen Key Adjustable Feet Handle 2 x DL 2 x DR 2 x CL 2 x CR Inner Drawer Runner Outer Drawer Runner Outer Drawer Runner Inner Drawer Runner 5 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
-
Page 6: Parts List
1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 2 PCS 2 PCS 1 PC 2 PCS 2 PCS 4 PC 6 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282... - Page 7 PARTS LIST 2 PC 2 PC 2 PC 4 PC 2 PC 2 PC 1 PC 1 PC 1 PC 1 PC 1 PC 3 PCS 2 PCS 7 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 8 Fix rod support (I) to part 1 using screws (F). F x 2 Fix outer drawer runners (CL) using screws (G) to part 1, as shown. G x 6 I x 1 CL x 2 8 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 9 Fix rod support (I) to part 2 using screws (F). F x 2 Fix outer drawer runners (CR) using screws (G) to part 2, as shown. G x 6 I x 1 CR x 2 9 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 10 Attach parts 6, 7, 8 and 9 to part 2, as shown. Please note: long wooden dowels protrude the other side of part 2. N x 2 Turn cam locks clockwise to tighten. 10 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 11 Insert cam locks (B) to parts 6 and 8. B x 4 Attach parts 6 and 8 to part 1, as shown. Turn cam locks clockwise to tighten. C x 2 11 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 12 Insert cam locks (B) to parts 7 and 9. B x 4 Attach parts 7 and 9 to part 3, as shown. Turn cam locks clockwise to tighten. C x 2 12 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 6 Fix parts 14 and 28 to parts 12 and 13 using screws (J), as shown. J x 8 U x 1 13 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 14 STEP 7 Fix parts 15 to parts 12, 13 using screws (L). L x 16 Secure part 15 to part 14 using screws (D), as shown. D x 4 14 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 15 ASSEMBLY INSTRUCTIONS STEP 8 Insert wooden dowels (C) to part 5, as shown. C x 8 15 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 16 Fix parts 12 and 13 to part 5 using screws (D). D x 12 Screw part 27 into part 5. Screw adjustable feet (V) to part 27, as shown. V x 1 V V V 16 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 17 STEP 10 Insert wooden dowels (C) to part 5. C x 6 Fix part 5 to parts 1, 2 and 3 using screws (T), as shown. T x 6 17 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 18 Insert wooden dowels (C) to part 1, 2 and 3. C x 6 Fix part 4 to parts 1, 2 and 3 using screws (T), as shown. T x 6 18 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 19 ASSEMBLY INSTRUCTIONS STEP 12 Insert parts 25 into the grooves of part 26, as shown. 19 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 20 ASSEMBLY INSTRUCTIONS STEP 13 Attach parts 25 to assembled unit using nails (K) and screws (R), as shown. K x 46 R x 14 20 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 21 ASSEMBLY INSTRUCTIONS STEP 14 Fix parts 16, 17 and 19 to part 18 using screws (T), as shown. T x 12 21 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 22 ASSEMBLY INSTRUCTIONS STEP 15 Insert part 21 into grooves of parts 16, 17 and 18, as shown. 22 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 23 STEP 16 Insert quickfit screws (A) on part 20. A x 12 Fix handle (W) to part 20 using screws (E), as shown. E x 4 W x 4 23 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 24 Insert cam locks (B) on parts 16, 17 and 19. B x 12 Attach part 20 to parts 16, 17, 19 and 21, as shown. Turn cam locks clockwise to tighten. 24 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 25 Fix inner drawer runners (DR) to part 17 using screws (G). G x 12 Fix inner drawer runners (DL) to part 16 using screws (G), as shown. DL x 2 DR x 2 25 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 26 Fix handle (W) to part 22 using screws (E). E x 1 Fix hinges (H) to parts 22 using screws (F), as shown. F x 6 H x 3 W x 1 26 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 27 Fix handle (W) to part 24 using screws (E). E x 1 Fix hinges (H) to parts 24 using screws (F), as shown. F x 6 H x 3 W x 1 27 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 28 Fix handle (W) to part 23 using screws (E). E x 1 Fix hinges (S) to parts 23 using screws (F), as shown. F x 6 S x 3 W x 1 28 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 29 To adjust the door vertically loosen the screw as shown and move up and down as needed. To adjust the gap from the door to the main frame turn the screw clockwise or anti-clockwise as needed. 29 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 30 ASSEMBLY INSTRUCTIONS STEP 23 Insert shelf pins (M) to parts 2 and 3. M x 8 Put parts 11 on shelf pins (M), as shown. 30 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 31 To adjust the door vertically loosen the screw as shown and move up and down as needed. To adjust the gap from the door to the main frame turn the screw clockwise or anti-clockwise as needed. 31 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 32 ASSEMBLY INSTRUCTIONS STEP 25 Fix wall brackets (P) to part 4 using screws (O) and metal washers (X), as shown. O x 2 P x 2 X x 2 32 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 33 Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over. X x 2 Please consider the wall mounting & fixing guide when securing your wardrobe. WALL 33 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 34 ASSEMBLY INSTRUCTIONS STEP 27 Maximum recommended weight is 5kg per shelf and 5kg per drawer. Your Wardbrobe 3 doors 2 drawers is ready for use 34 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
- Page 35 TV & HiFi than the plasterboard. Always check the speakers and satellite dishes, etc. fixing is secure to the retaining wall. 35 of 35 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UB2282...
