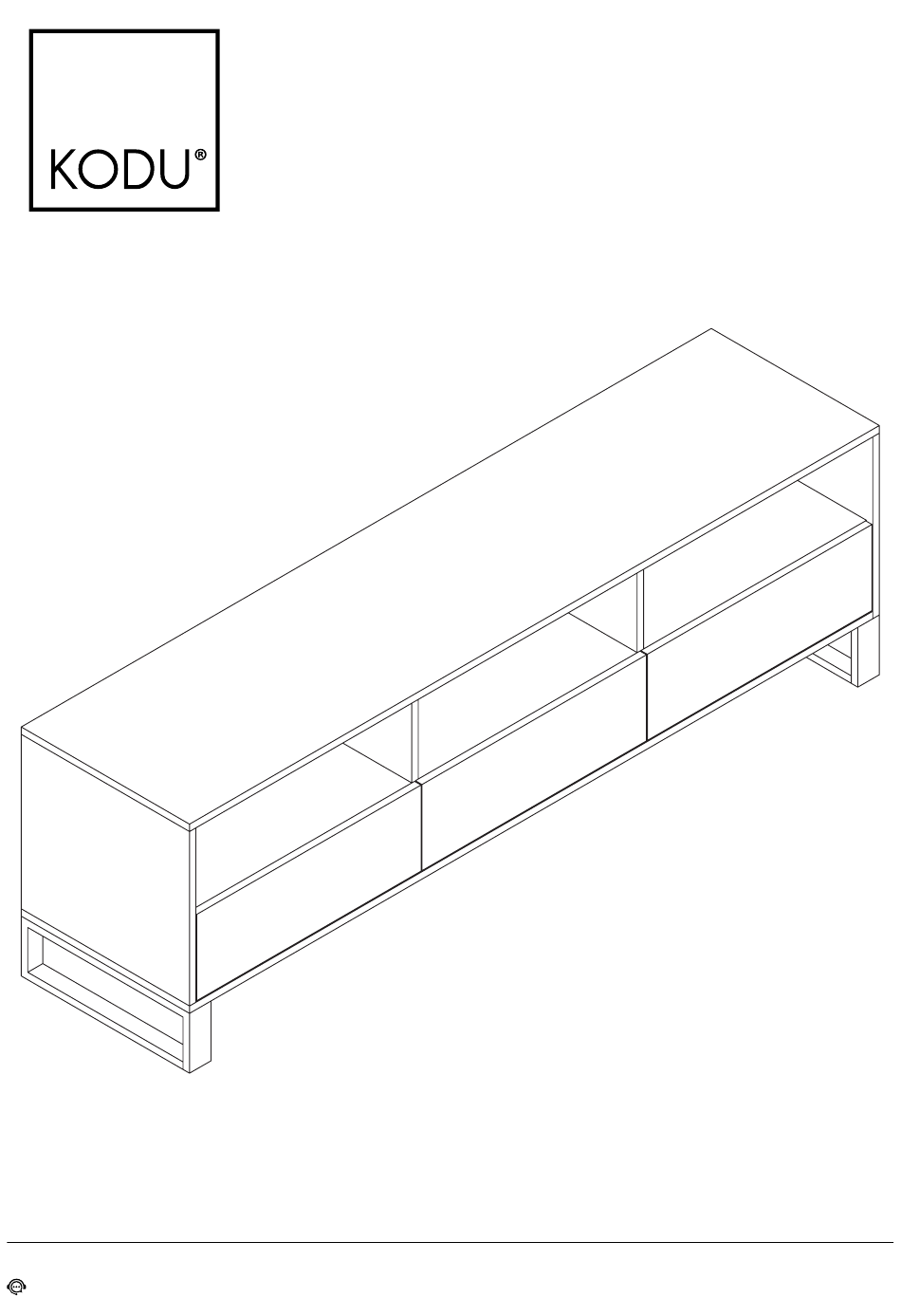

- Page 1 TV UNIT 3 DRAWERS ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 2 Please do not drag and pull your furniture. ASSEMBLY REQUIREMENTS Equipment: phillips head screwdriver, flat head screwdriver 1 x adult required 1m x 1m assembly space required 1 hour assembly time approx. 2 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 3 Quickfit head should be in the centre of the cam lock when the two panels are joined. Turn cam lock clockwise to tighten. Cam lock should be inserted before quickfit. 3 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
-
Page 4: Hardware List
16 x J 10 x K 12 x L Short Wooden Nail Bolt Screw Dowel 4 x M 4 x N 1 x O Long Wooden Allen Key Dowel 4 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876... -
Page 5: Parts List
PARTS LIST 5 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876... - Page 6 Insert quickfit screws (B) into part 1, as shown. B x 8 Fix parts 8 to part 3 using bolts (K) and allen key (O), as shown. K x 2 O x 1 6 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 7 Fix outside drawer runner (E) to part 4 using screws (D), as shown. D x 6 Fix outside drawer runner (H) to part 5 using screws (D), as shown. E x 1 H x 1 7 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 3 Fix outside drawer runners (E) and (H) to part 7 using screws (D), as shown. D x 6 E x 1 H x 1 8 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Insert long wooden dowels (N) through part 2 and attach parts 6 and 7, as shown. N x 4 9 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 10 Insert quickfit screws (B) into parts 4 and 5, as shown. B x 4 Insert cam locks (C) into part 2. Fix parts 4 and 5 to part 2. C x 4 Turn cam locks clockwise to tighten. 10 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 11 Fix part 3 to parts 4, 5 and 7 using screws (A). C x 8 Fix part 1 to parts 4, 5 and 6. Turn cam locks clockwise to tighten. I x 16 11 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 12 M x 4 O x 1 K K K K K K K K K K K K K K K K K K K K K K K K 12 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 13 Insert cam locks (C) into parts 14 and 15. Fix parts 14 and 15 to parts 11,12 and 13. C x 12 Turn cam locks clockwise to tighten. 13 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 9 Insert part 16 into grooves of parts 11, 12, 13, 14 and 15, as shown. 14 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 15 ASSEMBLY INSTRUCTIONS STEP 10 Fix part 17 to parts 14 and 15 using screws (L), as shown. L x 12 15 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 16 STEP 11 Fix inner drawer runenrs (F) and (G) to parts 14 and 15 using screws (D), as shown. D x 18 F x 3 G x 3 16 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
- Page 17 Insert drawers into assembled unit, as shown. Please note: the maximum recommended weight is 10kg for top and 5kg for shelves. Your TV Unit is ready for use. 17 of 17 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8876...
