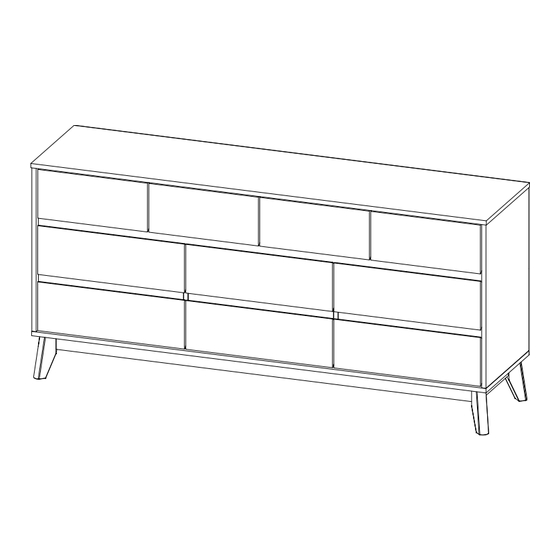

- Page 1 CHEST OF 10 DRAWERS ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
-
Page 2: Assembly Requirements
Please do not place hot items (eg. hot drinks) directly on to the surface. Please do not drag and pull your furniture. ASSEMBLY REQUIREMENTS 2 x adults required 2m x 2m assembly space required 1 hour assembly time approx. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700... - Page 3 ANTI-TOPPLING WARNING CHILDREN HAVE DIED FORM FURNITURE TIPOVER. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 4 PANEL CORRECT WRONG Quickfit head should be in the centre of the cam lock when the two panels are joined. Cam lock should be inserted before quickfit. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 5 DRAWER SLIDE GUIDE and 18. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
-
Page 6: Hardware List
2 x R Spring Flat Outer Drawer Inner Drawer Wall Bracket Screw Washer Washer Runner Runner 2 x S 2 x T Screw Cable Tie Wall Plug (Not Provided) of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700... -
Page 7: Parts List
1 PC 1 PC 1 PC 1 PC 1 PC 2 PCS 2 PCS 2 PCS 4 PCS 6 PCS 20 PCS 4 PCS 6 PCS 4 PCS of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700... - Page 8 Insert cam locks (A) and wooden dowels (D) to 3, 4, 5, 6 and 7 as shown. A x 18 Insert quickfit screws (B) to parts 1, 3, 4 and 7, as shown. B x 18 D x 32 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 9 Fix L bracket (K) to parts 8 and 9 using screws (G) as shown. D x 16 Insert wooden dowels (D) to parts 8 and 9, as shown. G x 9 K x 9 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 10 The most common cause of drawers being misaligned is at the drawer assembly and runner O x 14 installation stage. Please ensure all instructions and screw hole positions are followed as indicated to avoid misaligned drawers. O(R) O(L) of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 11 The most common cause of drawers being misaligned is at the drawer assembly and runner O x 6 installation stage. Please ensure all instructions and screw hole positions are followed as indicated to avoid misaligned drawers. O(L&R) of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 5 Connect part 9 to parts 6 using screw (G) as shown. G x 2 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 6 Attach parts 7 to parts 6. C x 4 Turn cam locks clockwise to tighten. Attach cam lock covers (C), as shown. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 7 Fix parts 5 to parts 7 using screws (E) and allen key (F), as shown. E x 6 F x 1 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 15 Connect parts 9 to parts 3, 4 and 6, as shown. Attach part 7 to parts 3 and 4. Turn cam locks clockwise to tighten. Attach cam lock covers (C), as shown. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 16 C x 10 Attach part 1 to parts 3, 4 and 5. Turn cam locks clockwise to tighten. G x 7 Attach cam lock covers (C), as shown. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 17 ASSEMBLY INSTRUCTIONS STEP 10 Fix part 2 to parts 3, 4 and 6 using screws (E) and allen key (F), as shown. E x 8 F x 1 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 18 ASSEMBLY INSTRUCTIONS STEP 11 Fix part 10 to the assembled unit using nails (J), as shown. J x 38 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 19 Fix legs 23 to part 2 using bolts (L), spring washers (M) and washers (N), F x 1 tighten with allen key (F), as shown. L x 8 M x 8 N x 8 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 20 ASSEMBLY INSTRUCTIONS STEP 13 Fix parts 20 to parts 11, 12, 13, 14 and 18 using screw (I) as shown. I x 32 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 21 ASSEMBLY INSTRUCTIONS STEP 14 Fix parts 20 to parts 15, 16, 17 and 19 using screw (I) as shown. I x 48 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 22 ASSEMBLY INSTRUCTIONS STEP 15 Fix parts 21 onto assembled unit using nail (J), as shown. J x 32 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 23 ASSEMBLY INSTRUCTIONS STEP 16 Fix parts 22 onto assembled unit using nail (J), as shown. J x 48 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 24 The most common cause of drawers being misaligned is at the drawer assembly and runner P x 8 installation stage. Please ensure all instructions and screw hole positions are followed as indicated to avoid misaligned drawers. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 25 The most common cause of drawers being misaligned is at the drawer assembly and runner P x 12 installation stage. Please ensure all instructions and screw hole positions are followed as indicated to avoid misaligned drawers. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 26 ASSEMBLY INSTRUCTIONS STEP 19 Fit drawer to assembled unit, as shown. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 27 ASSEMBLY INSTRUCTIONS STEP 20 Fix wall bracket (Q) to part 10 using screws (R), as shown. Q x 2 R x 2 of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 28 Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over. Please consider the wall mounting & fixing guide when securing your product. U x 2 (Not Provided) WALL of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 29 Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over. Please consider the wall mounting & fixing guide when securing your product. WALL of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 30 ASSEMBLY INSTRUCTIONS STEP 23 Maximum recommended weight is 10 kg for top, 5 kg for drawers. Your product is ready for use. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
- Page 31 TV & HiFi speakers to be fixed to the wall rather than the plasterboard. and satellite dishes, etc. Always check the fixing is secure to the retaining wall. of 31 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH9698 UH9699 UH9700...
