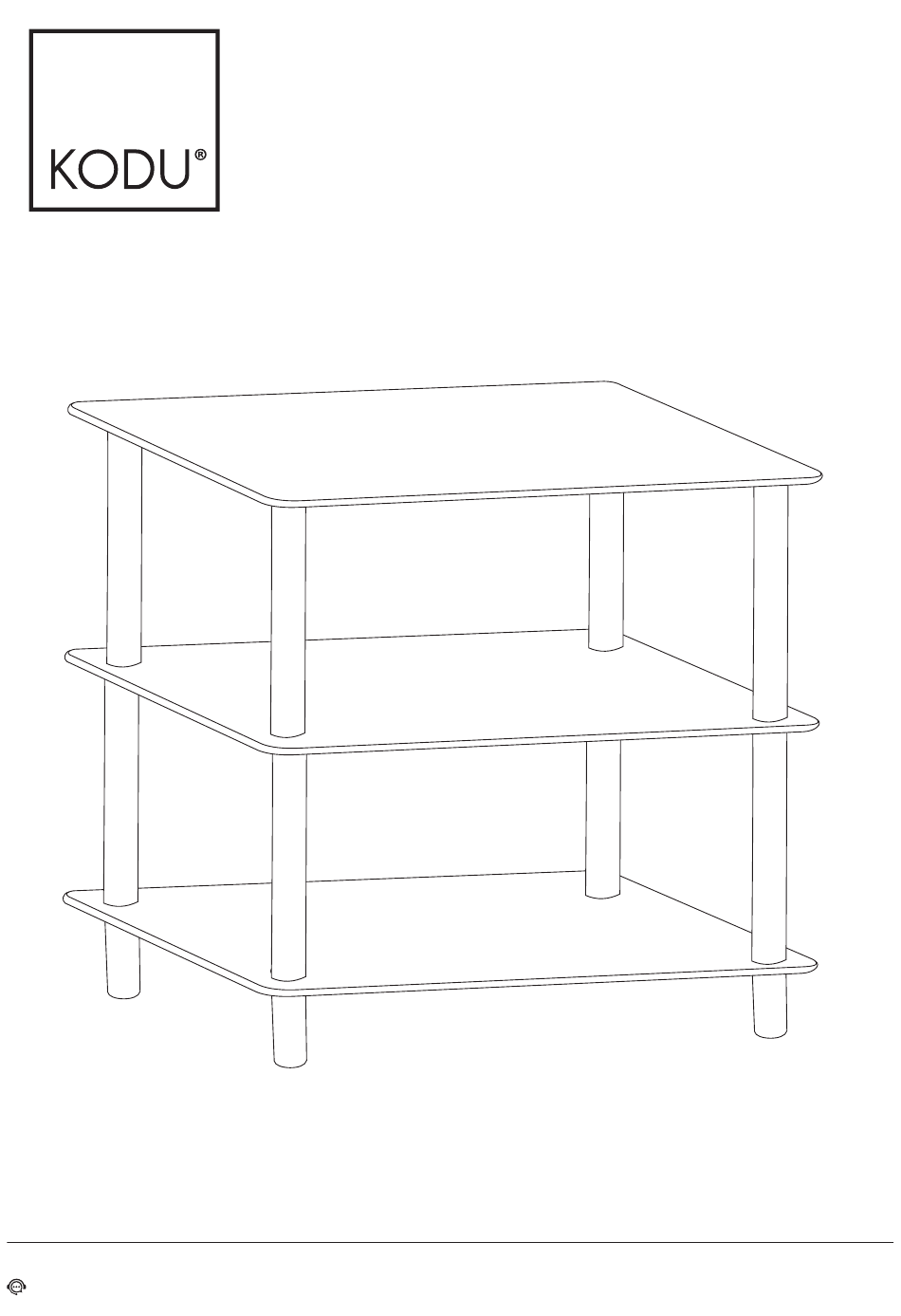

- Page 1 3-TIER RECTANGULAR SHELF ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
-
Page 2: Assembly Requirements
This product is intended for indoor, household use only as it is a non-industrial product. Please use caution and care when lifting the product to avoid personal injury and/or product damage. CARE AND MAINTENANCE OF YOUR FURNITURE ASSEMBLY REQUIREMENTS 2 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425... - Page 3 NEVER allow children to stand, climb or hang on drawers, doors, or shelves. NEVER open more than one drawer at a time. Place heavy items down low. NEVER put a TV on this furniture 3 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
-
Page 4: Hardware List
HARDWARE LIST 2 x B 2 x C 2 x A 2 x D Wall Plug Wall Bracket Screw Screw 4 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425... -
Page 5: Parts List
PARTS LIST 5 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425... - Page 6 STEP 1 Fix legs 2 to part 1 by turning clockwise. C x 2 Fix wall brackets (C) to part 1 using screws (D), as shown. D x 2 6 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
- Page 7 STEP 2 Fix part 3 to legs 2 using legs 4 by turning clockwise. Fix part 3 to legs 4 using legs 5 by turning clockwise, as shown. 7 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
- Page 8 Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over. Screw (A) is fixed through wall bracket (C) and into the wall plug (B). WALL WALL 8 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Please note: the maximum recommended weight for each shelf is 5kg. Your 3 Tier Rectangular Shelf is ready for use. 9 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
- Page 10 TV & HiFi than the plasterboard. Always check the speakers and satellite dishes, etc. fixing is secure to the retaining wall. 10 of 10 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH8425...
