Atdec Fortis Installation Manual page 3

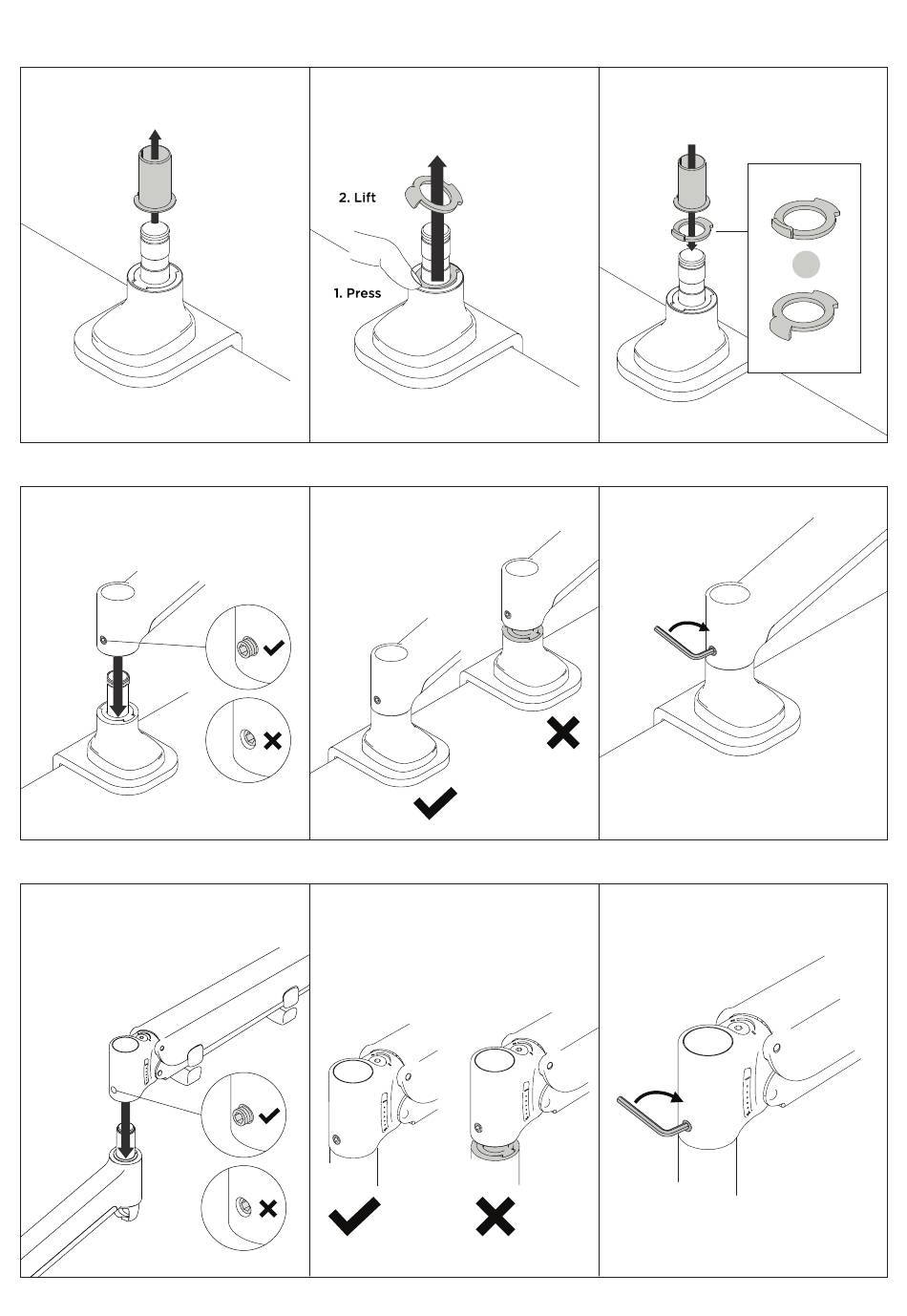

2. (OPTIONAL) Set arm rotation to 360°
NOTE: Rotation is set to 180° by default.
2.1 Remove plastic sleeve.
3. Fit Arm onto Base
3.1 Push arm onto base.
4. Assemble Arm Links
4.1 Push two arm links together.
Do not remove the plastic sleeve.
2.2 To remove rotation ring press
down on front edge and lift.
3.2 Ensure arm is fully pushed
onto base.
4.2 Ensure links are fully
pushed together.
2.3 Replace rotation ring in the
desired orientation and replace
plastic sleeve.
Default Position
Flipped Position
3.3 Tighten set screw.
NOTE: Check the arm rotation is
smooth after tightening.
4.3 Tighten set screw with 4mm
Hex Key.
NOTE: Check that arm rotation is
smooth after tightening
AWMS-HXB-H--V Page 3 of 6
180°
OR
360°
