Alternative desk fixing options
Follow the installation guide
provided with the preferred
fixing to attach the Base and fit
it to the worksurface.

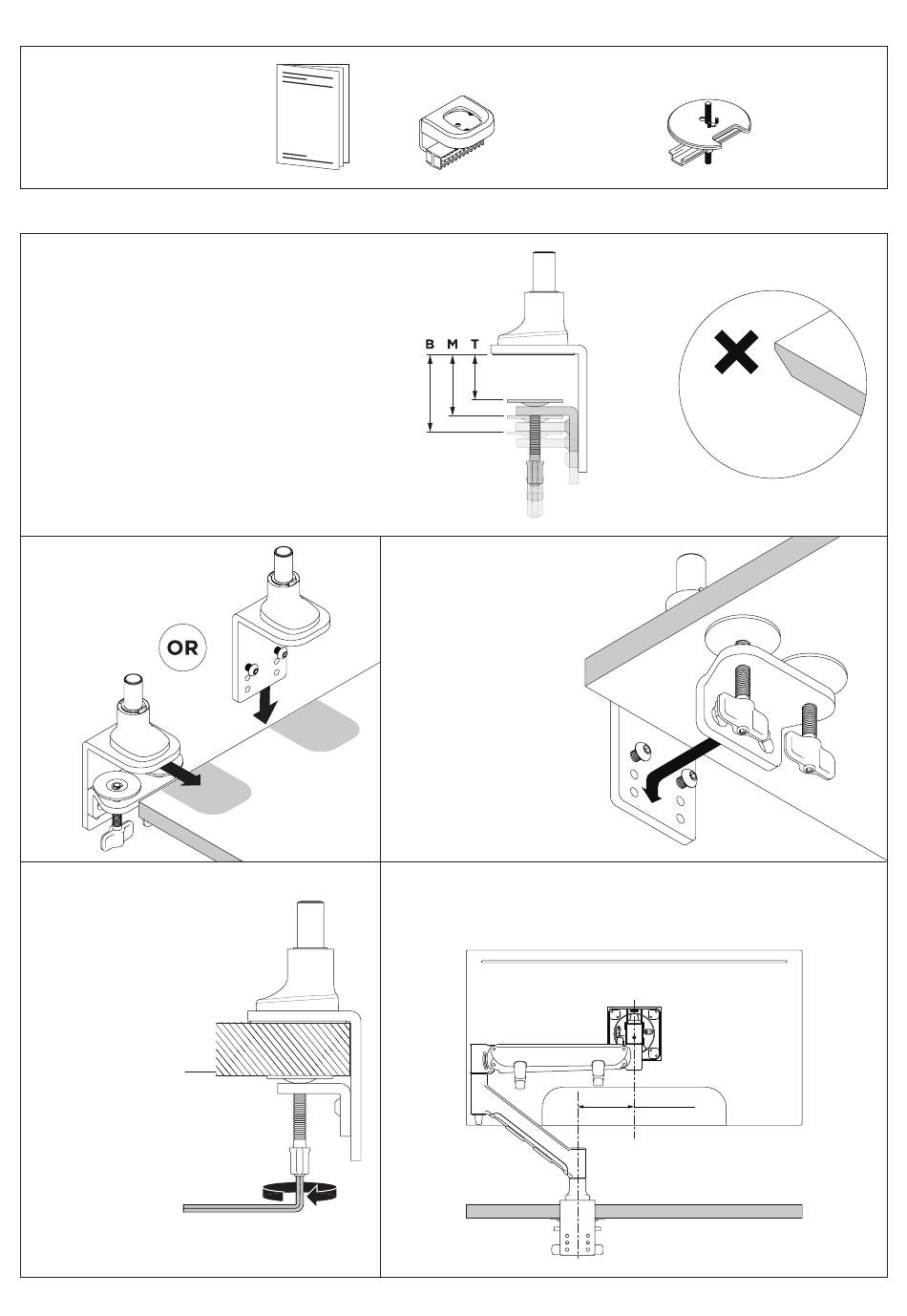

1. Attach Clamp to Desk
1.1 Measure the worksurface thickness and
choose the suitable lower clamp position.
Default position is in the Top height.
Top (T)
Middle (M)
Bottom (B)
1.2 Position clamp on
edge of work surface.
1.3 Screw in both pressure
plates and tighten evenly
and firmly. Alternatively,
use the 4mm hex key.
Mounting
surface
4mm
Hex key
IMPORTANT
Ensure clamp is pushed up against desk edge.
4 - 42mm (4/25" - 1 13/20")
19 - 57mm (3/4" - 2 6/25")
34 - 72mm (1 17/50" - 2 21/25")
Alternative AWM Fixing options Sold separately
C Clamp
AWM-FC
HINT
If the gap behind the
work surface is less
than 70mm (23/4"),
unhook the lower
bracket and reattach it
from under the desk.
TIP
When positioning the desk clamp, offset the
TIP
clamp to the left or right of the seating position.
When positioning the desk clamp, offset the clamp to the left or right
The monitor will then be centred for the user.
of the seating position. The display will then be centred for the user.
Grommet
Clamp
AC-GC
NOTE
Bevelled edges
not compatible
100mm
(3.94")
AWMS-HXB-H--V Page 2 of 6
