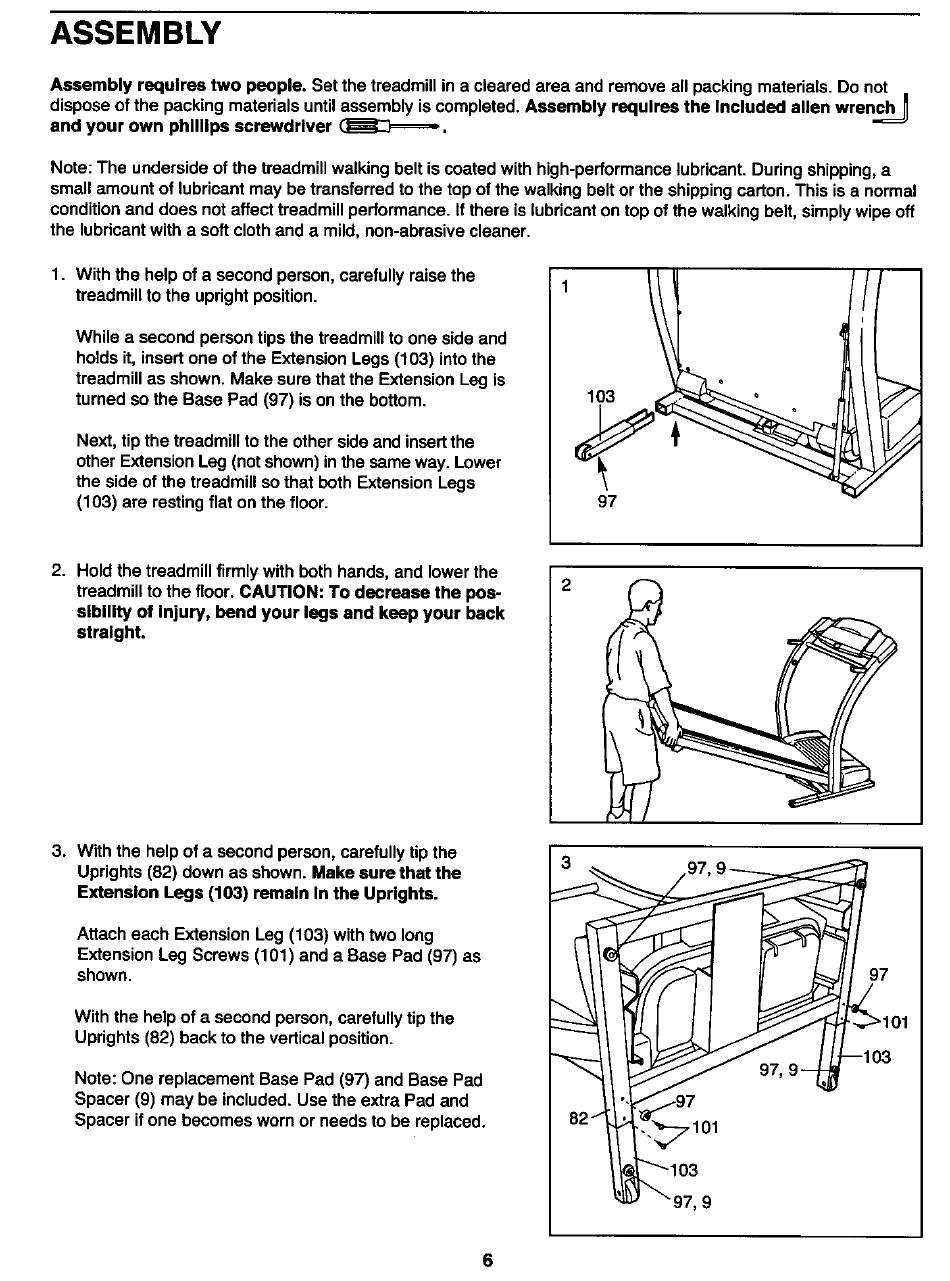

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials untilassembly is completed. Assembly requires the Included allen wrenc_
and your own phillips screwdriver (E6::3===,,,.
Note: The underside of the treadmill walking belt is coated with high-performancalubricant. During shipping,a
small amount of lubricant may be transferred to the top of the walking belt or the shippingcarton. This is a normal
conditionand does not affect treadmill performance. If there is lubricanton top of the walking belt, simplywipe off
the lubricantwith a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
treadmillto the upright position.
While a second person tips the treadmillto one side and
holds it, insertone of the Extension Legs (103) intothe
treadmill as shown. Make sure that the Extension Leg is
turned so the Base Pad (97) is on the bottom.
Next, tip the treadmill to the other side and insertthe
other ExtensionLeg (not shown)in the same way. Lower
the side of the treadmill so that both Extension Legs
(103) are restingflat on the floor.
97
2. Hold the treadmillfirmly with both hands, and lowerthe
treadmill to the floor. CAUTION: To decease the pos-
sibility of Injury, bend your legs and keep your back
straight.
3. With the help of a second person, carefully tip the
Uprights (82) down as shown. Make sure that the
Extension Legs (103) remain In the Uprights.
Attach each Extension Leg (103) with two long
Extension Leg Screws (101) and a Base Pad (97) as
shown.
With the help of a second person, carefully tip the
Uprights (82) back to the verticalposition.
Note: One replacement Base Pad (97) and Base Pad
Spacer (9) may be included. Use the extra Pad and
Spacer if one becomes worn or needs to be replaced.
2
3 97, 9_
97, 9--
_" "97, 9
101
--103
6
