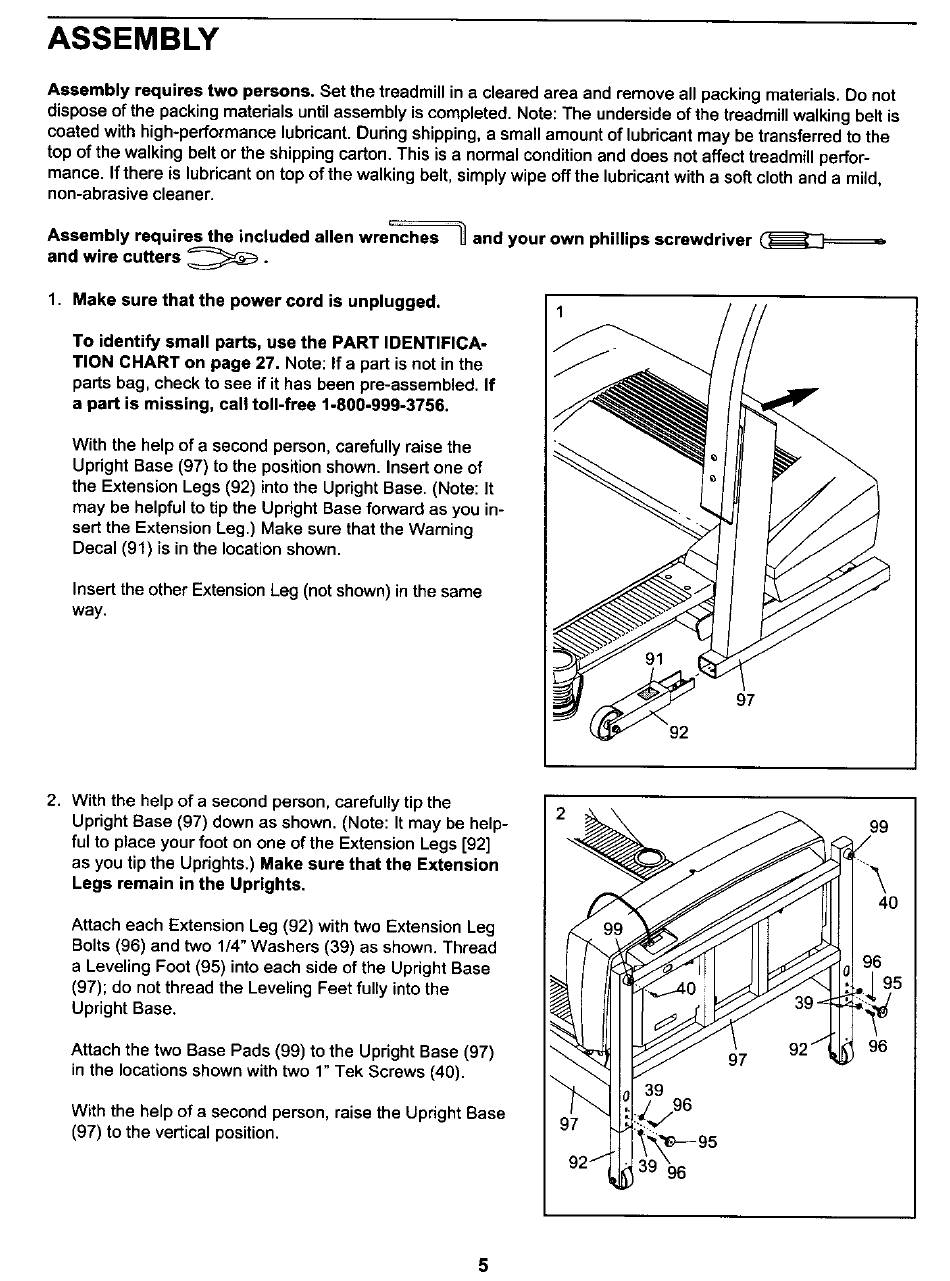

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materialsuntil assembly is completed. Note: The undersideof the treadmillwalking belt is
coated with high-performancelubricant.During shipping,a small amount of lubricant may be transferredto the
top of the walking belt or the shippingcarton. This is a normal conditionand does not affect treadmill perfor-
mance. If there is lubricanton top of the walking belt, simplywipe off the lubricantwith a sot_cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wre_ and your own phillips screwdriver
and wire cutters _.
1. Make sure that the power cord is unplugged.
To identify small parts, use the PART IDENTIFICA-
TION CHART on page 27. Note: If a part is not in the
parts bag, check to see if it has been pre-assembled. If
a part is missing, call toll-free 1-800-999-3756.
With the help of a second person, carefully raise the
Upright Base (97) to the positionshown. Insert one of
the Extension Legs (92) into the Upright Base. (Note: It
may be helpfulto tip the Upright Base forward as you in-
sert the Extension Leg.) Make sure that the Warning
Decal (91) is in the locationshown.
Insert the otherExtension Leg (not shown) in the same
way.
97
92
2. With the help of a second person, carefully tip the
Upright Base (97) down as shown. (Note: It may be help-
ful to place your foot on one of the Extension Legs [92]
as you tip the Uprights.) Make sure that the Extension
Legs remain in the Uprights.
Attach each Extension Leg (92) with two Extension Leg
Bolts (96) and two 114"Washers (39) as shown. Thread
a Leveling Foot (95) into each side of the Upright Base
(97); do not thread the Leveling Feet fully into the
Upright Base.
Attach the two Base Pads (99) to the Upright Base (97)
in the locations shown with two 1" Tek Screws (40).
With the help of a second person, raise the Upright Base
(97) to the vertical position.
96
95
92"_ _
