- Page 1 Automatic barrier FA01260-EN I1PB0500026 I1PB0500027 I1PB0500028 INSTALLATION MANUAL FOR THE EN English...
- Page 3 GENERAL PRECAUTIONS FOR INSTALLERS ⚠ CAUTION! Important safety instructions. Follow all of these instructions. Improper installation can cause serious bodily harm. Before continuing, also read the general precautions for users. S.P.A. HIS PRODUCT MUST ONLY BE USED FOR ITS SPECIFICALLY INTENDED PURPOSE NY OTHER USE IS DANGEROUS IS NOT LIABLE FOR ANY DAMAGE CAUSED .
-
Page 4: Description Of Parts

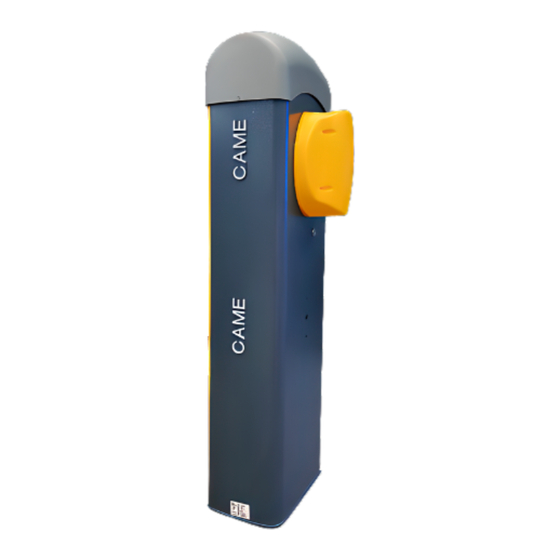

PRODUCT DATA AND INFORMATION Legend This symbol shows which parts to read carefully. ⚠ This symbol shows which parts describe safety issues. ☞ This symbol shows which parts to tell users about. The measurements, unless otherwise stated, are in millimeters. Description Barrier with encoder made of galvanized painted steel ready to fit accessories. -
Page 5: Dimensions (Mm)
Control panel 1. Transformer 13. Connector for the R700 or R800 card 2. Line fuse 14. RSE card slot 3. Terminals for powering the control board 15. AF snap in connector for radio frequency board 4. Transformer terminals 16. Terminal board for connecting the antenna 5. -
Page 6: Technical Data
Limits to use Type I1PB0500026 - I1PB0500027 - I1PB0500028 Maximum clearance width of the passage (m) 4 series Technical data Type I1PB0500026 - I1PB0500027 - I1PB0500028 Protection rating (IP) 54 series Power supply (V - 50/60 Hz) 230 AC Motor power supply (V) -
Page 7: Preliminary Operations
INSTALLING ⚠ The following illustrations are mere examples. Consider that the space available where to fit the barrier and accessories will vary depending on the area where it is installed. It is up to the installer to find the most suitable solution. ⚠ ... - Page 8 Fill the hole with earth around the concrete block. Remove the nut and washer from the bolts Fit the electric cables into the tubes so that they come out about 600 mm. Preparing the barrier Remove the cover screws, fit the key into the lock and turn it clockwise . Lift the dome and remove the inspection hatch .
-
Page 9: Boom Installation
Change of the boom opening direction ⚠ Caution! The barrier is set up for installing on the left. When installing on the right, invert the boom's opening direction, as follows: - remove the spring connection from the transmission arm; - release the gearmotor by using the key; - - rotate the transmission arm ;... - Page 10 MAGNETIC SENSOR FOR DETECTING BOOM DETACHMENT (OPTIONAL) When applying the magnetic sensor, proceed as follows: - run the micro-switch cable through the motor shaft hole and fasten the micro-switch to the boom attachment ; - fasten the boom to the attachment ; - drill a hole in the boom following the measurements shown for fastening the magnet ;...
- Page 11 Cut the groove covering frame to the right length and fit it into the boom's groove. Fit the protective cover onto the support braces and fasten it using the screws.
- Page 12 Choice of balancing spring Before proceeding, check that the spring you have chosen is suitable for the accessories and the clearance. I9RT0109013 Ø 40 mm spring I9RT0109012 Ø 50 mm spring BOOM COMPOSITION 1.5 to 3 3 to 4 Boom with shock-proof profile Boon with impact-proof frame and luminous cord Jointed boom ...
- Page 13 Balancing the boom Hook the eyelet rod to the anchoring rod . Release the gearmotor and manually turn the spring to increase or reduce traction . The boom should stabilize at 45°. Secure the counter-nut and relock the gearmotor. Check the proper working state of the spring. With the boom raised vertically the spring is not taut.
-
Page 14: Electrical Connections
ELECTRICAL CONNECTIONS ⚠ Before working on the control panel, cut off the mains power supply and remove any batteries. Electric cables passage Connect all wires and cables in compliance with the law while using suitable cable glands, as shown in the drawing. ⚠... -
Page 15: Signalling Devices
Input voltage 1- Output delivers normally 24 V AC The output delivers 24 V DC when the batteries start operating. The sum of the connected accessories input must not exceed 40 W. 2 - Line voltage input at 230 V AC (1P+N+PE) - 50/60 Hz. Signalling devices 1 = Flashing light. - Page 16 Command and control devices 1 - Antenna with TOP-RG58 cable. 2 - Button - Total stop - NC contact – Boom stop that excludes any automatic closing; to resume movement, use the control device. If the contact is not used, it must be deactivated during the programming. 3 - Control device - OPEN ONLY function- NO contact - Allows only opening.
-
Page 17: Safety Devices
Safety devices Connect the safety devices to the CX and/or CY inputs. During programming, configure the type of action that must be performed by the device connected to the input. If contacts CX and CY are not used they must be deactivated during programming. Standard connection Standard connection DELTA photocells... - Page 18 Entry and exit command 1 - NO contact, function with C10 mode or NC contact in C5 or C9 2 - NO contact input, close only function 3 - NO contact input, open only function 4 - NO contact output indicating closed boom 5 - NO contact output indicating open boom Each output is a clean contact with maximum capacity 1A –...
- Page 19 Determination of travel end points Activate the barrier to check whether the boom is parallel to the road surface when closed and at about 89° when open. ⚠ The boom's opening and closing maneuvers must be performed with the inspection hatch closed. To correct the boom's vertical position: - lower the boom;...
-
Page 20: Description Of The Commands
PROGRAMMING Description of the commands The ENTER key is for: - accessing menus; - confirming or memorizing set values. S1 GND The ESC button is for: - exiting menus; - cancelling changes. The < > keys are for: - moving from one item to another; - increasing or decreasing values. - Page 21 With the function active, the operator movement (opening or closing) is interrupted when the control device is released. Activation of the function excludes all other control devices. Maintained action 0 =Deactivated (Default) 1 = Activated With the function active, the boom remains stopped if the safety devices detect an obstacle. The function activates with: closed rod, open rod or after a total stop.
- Page 22 Sets the slowing down speed during opening (percentage of maximum speed). Caution! The speed parameter fi elds vary depending on the type of boom: - for jointed booms of 2 m, set the slow-down speed percentage to between 20 and 40; Opening slow-down - for booms of 4 m, set the slow-down speed percentage to between 20 and 35.
- Page 23 Sets the remote connection system communication speed on the RSE port. 0 = 1200 bps 1 = 2400 bps 2 = 4800 bps 3 = 9600 bps RSE speed 4 = 14400 bps 5 = 19200 bps 6 = 38400 bps (Default) 7 = 57600 bps 8 = 115200 bps With the function active, it is possible to send a series of opening commands corresponding to the number...
-
Page 24: Travel Calibration
Getting started Once the connections are all set, have skilled, qualified staff commission the barrier into service. Before continuing, make sure that the way is clear from any obstruction. Power up and begin configuring the system. Important! Start programming by first doing the following functions: - boom length (see function A1);... -
Page 25: Managing Users
< > ENTER Download the LIST OF REGISTERED USERS form from the portal docs.came.com Enter L20180423. Deleting a single user ❶ Select U2 and press ENTER to confirm. ❷ Use the arrow keys select the number of the user you wish to delete. Press ENTER to confirm.. -
Page 26: Final Operations
Saving and uploading all data (users and configuration) with the memory roll Procedure for memorizing all of the system's user and configuration data by using the Memory Roll, so they can be used with another control board, even on another system. Caution! Fitting and extracting the Memory Roll must be done with the mains power disconnected. -
Page 27: Error Message
ERROR MESSAGE The error messages appear on the display or are notified by LEDs. The boom travel calibration was interrupted by the activation of the STOP button. Encoder is broken. Safety test error. Insufficient working time. Maximum number of obstructions detected. Transformer overheating. -
Page 28: Dismantling And Disposal
☞ CAME CANCELLI AUTOMATICI S.p.A. employs a certified Environmental Management System at its premises, compliant with the UNI EN ISO 14001 standard to ensure the environment is safeguarded. Please continue safeguarding the environment. At CAME we consider it one of the fundamentals of our operating and market strategies. Simply follow these brief disposal guidelines:...
