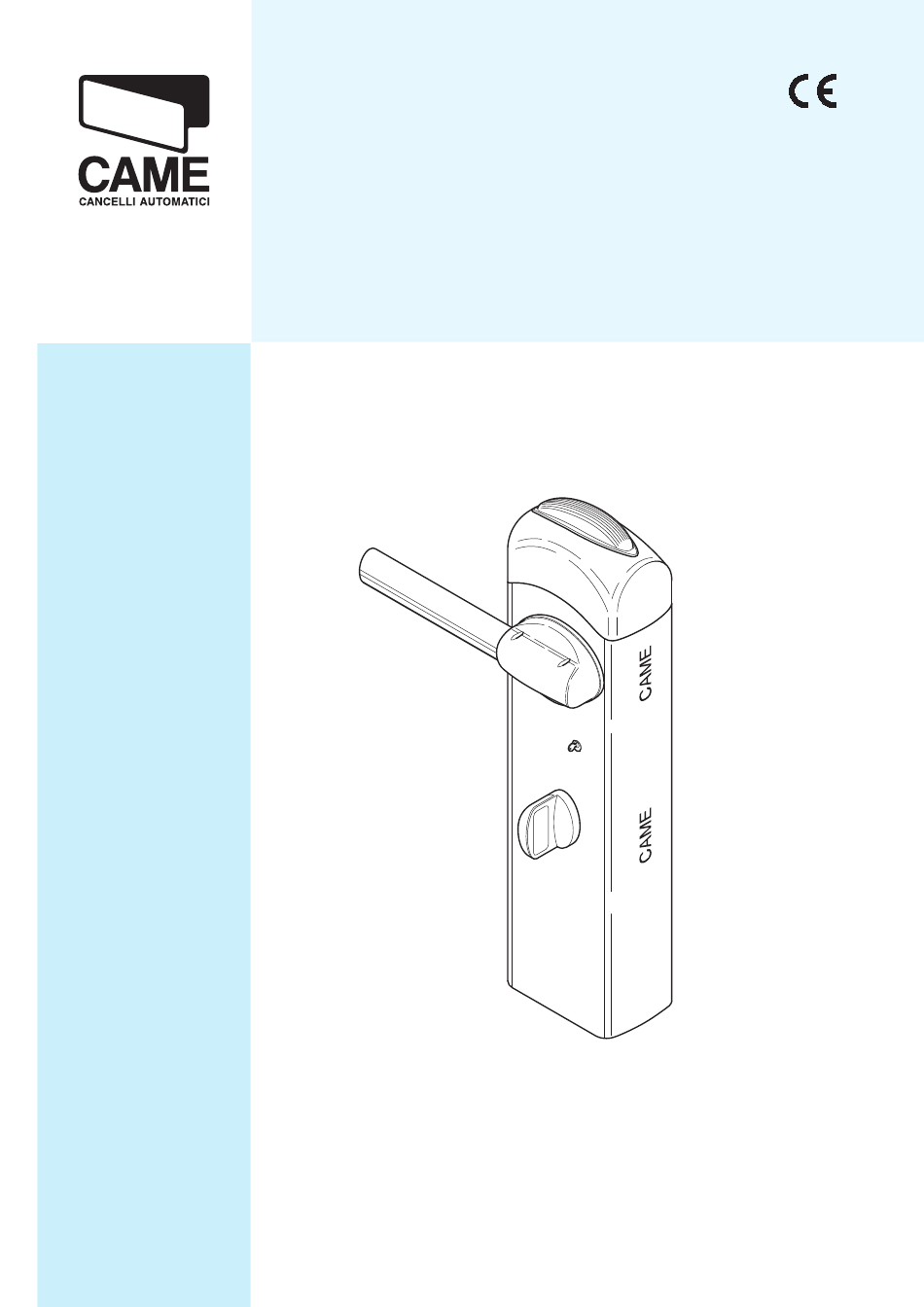

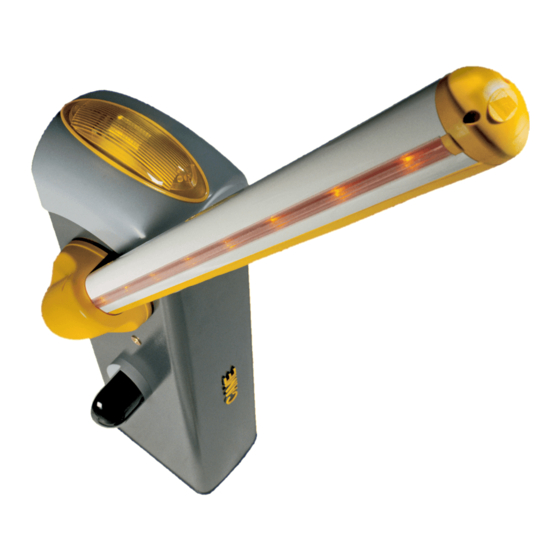

- Page 1 AUTOMATION FOR STREET BARRIERS GARD 4 SERIES INSTALLATION MANUAL G4040 - G4040I...
- Page 2 001 G02809 – Red reflector strips (package of 20); 001 G0465 - Painted aluminium rack in 2m modules; Important! Check that the safety equipment and accessories are CAME originals; this is a guarantee that also makes the system easy to set up and upkeep.
- Page 3 G04060 - Ø50 (green) balancing spring G06080 - Ø55 (red) balancing spring G0465 - Rack G02802 - Support for DIR photoelectric cells G02803 - Luminous cord G02807 - Fixed barrier support CAME G02808 - Mobile barrier support CAME CAME G02809 - Adhesive reflector strips CAME...
-
Page 4: Installation
4.4 Size measurements Measurements in mm 5 Installation Installation must be carried out by expert qualified personnel and in full observance of regulations in force. 5.1 Preliminary checks Before proceeding with the installation, it is necessary to: • Make sure the area selected for the mounting of the base and for the unit itself presents no hazards; •... - Page 5 5.3 Cable list and minimun thickness Connections Type of cable Length of cable 1 < 10 m Length of cable 10 < 20 m Length of cable 20 < 30 m 230V 2F power supply 3G x 1,5 mm 3G x 2,5 mm 3G x 4 mm 24V motor power supply 2 x 1 mm...
- Page 6 5.4 Fitting for unit base The following applications are only examples, as the space required for unit installation and the accessories vary depending on dimensions and therefore it is up to the installer to select the best solution. 1) Prepare a hole to house the fixing base and prepare sheath tubes from the branch pit for the connections.
-
Page 7: Installation Of The Unit
5.5 Installation of the Unit 1) Remove the two screws at the upper dome’s side and lift it. Insert the customised key in the lock, turn it counter-clockwise and remove the hatch from the cabinet. 2) The barrier is designed to be installed on the left of the gateway as seen from inside. - Page 8 Bar beam plate 4) Position the middle plate between the fitting plate and the bar-fitting cover, and put in one UNI 5931 M8x20 screw without Bar fi tting intermediate plate tightening it to facilitate bar assembly. Bar fi tting cover UNI5931 M8x12 5) Insert the bar in the fitting cover and secure it with UNI 5931 M8x20 and M8x12 screws.
- Page 9 7) Tighten the anti-shearing protection cover to the bar fitting with UNI6954 Ø3.9x19 screws. 5.6 Bar balancing 1) Prior to bar balancing, select a suitable spring depending on the situation at hand. See table below. G02040 spring Ø = 40 mm G04060 spring Ø...
- Page 10 2) Release the gearmotor and position the bar vertically, and then refasten the gearmotor. WARNING! The release procedure may constitute a hazard for the user when, for whatever reason – the bar is fixed improperly to the housing during assembly, or the bar is cracked or broken in an accident, and so on –...
- Page 11 5) Tighten the blocking nut and refasten the gearmotor. Note: make sure the spring functions properly: - the spring is loose when the bar is in the vertical position (at rest) - the spring is tight when the bar is in the horizontal position (tense). 5.7 ZL38 Electric board installation 1) Loosen the three screws in the container cover located in the upper part of the unit.
- Page 12 5.8 End stop adjustment Power up the electric board, carry out a series of steps to make sure of the bar’s correct opening and closing positions, and then, if necessary, proceed to the adjustment of the dampers. Warning! For greater safety and better unit performance, the bar’s opening and closing operations should be carried out with the inspection hatch closed! 1) Execute the closing operation, adjust the open bar’s position by turning the free damper clockwise (to increase the bar’s...
- Page 13 3) After bar opening and closing adjustment, tighten the locking nuts under the dampers. 4) After making adjustments and settings from the control panel, put the container lid in place and secure with screws. 5) Insert the inspection hatch and close it. 6) Insert the protection dome on the upper part of the unit and secure with the two UNI6954 Ø3.9x13 screws provided.
-
Page 14: Maintenance
UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the development of its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING –... -
Page 15: Manufacturer's Warranty
31030 Dosson di Casier - Treviso - ITALY In full compliance with the Machinery Directive 98/37/EC tel (+39) 0422 4940 - fax (+39) 0422 4941 internet: www.came.it - e-mail: info@came.it Declares under its own responsibility that the equipments for automatic garage doors and gates listed below:... - Page 16 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. Tel 0044 115 9210430 Fax 0044 115 9210431...
