Installation Instructions
P700 NE & P700 WE Series
Lever Handle with Exit Trim

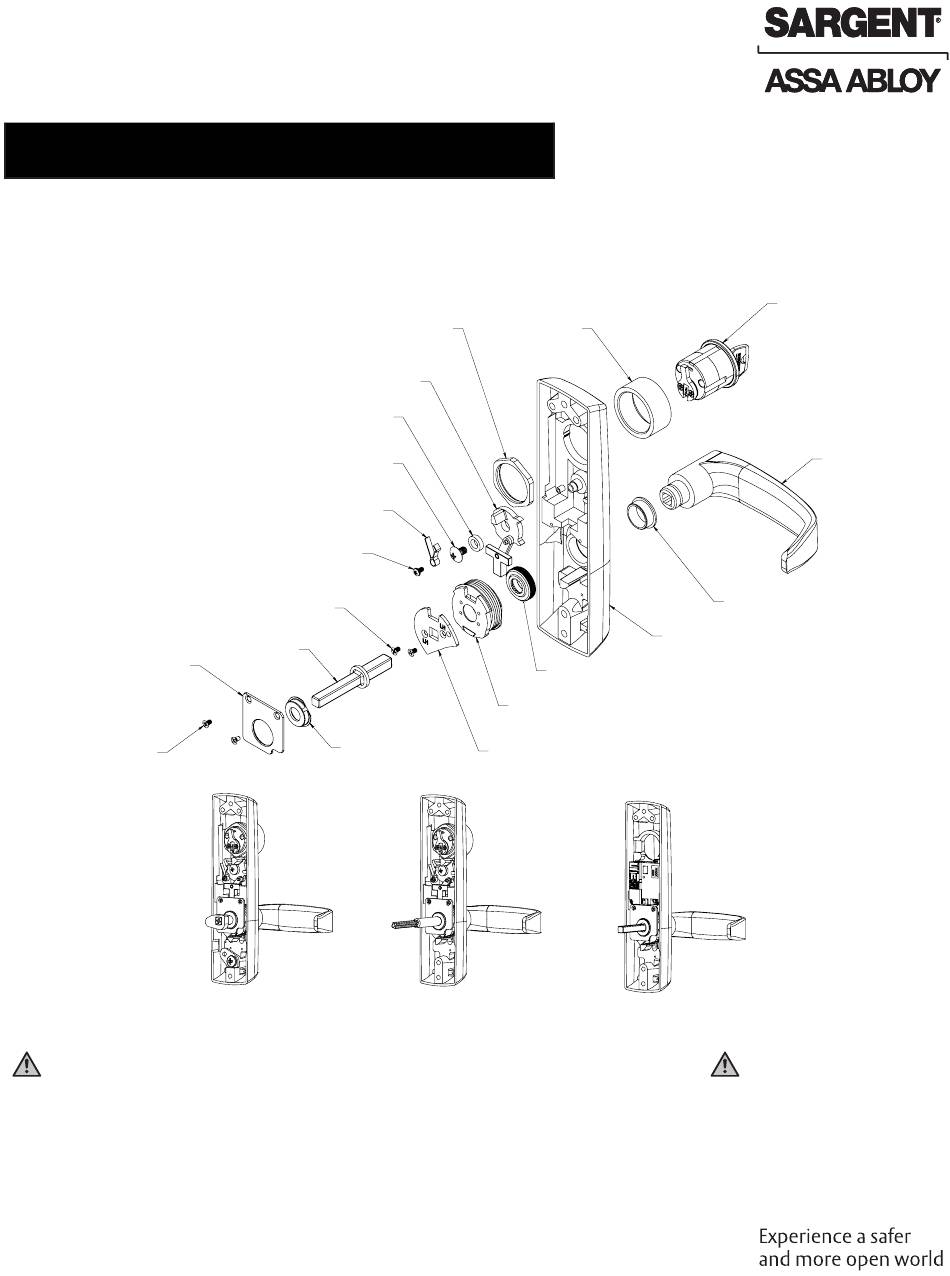

Spindle Interaction
SPRING PLATE
FLAT HEAD
MACHINE SCREW
P700-4 NE Trim
WARNING
This product can expose you to
lead which is known to the state of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65warnings.ca.gov.
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
(CYLINDER)
LOCKING
MECHANISM
SPACER
TRUSS HEAD
MACHINE SCREW
CAM DETENT
SPRING
PAN HEAD
MACHINE SCREW
FLAT HEAD
MACHINE SCREW
SPINDLE
BUSHING
shown
NUT
BLOCKING
RING
CAP NUT
SPRING
CARTRIDGE
HUB PLATE
P700-8 NE Trim
shown
BUSHING INSERT
CASE
P700 NE Ecoflex
Electrical Trim shown
WARNING
Attention Installer: Improper
installation may result in damage
to the product and void the factory
warranty.
A8312-1 5/23
MORTISE
CYLINDER
LEVER
HANDLE
Advertisement
Related Manuals for Assa Abloy Sargent P700 NE Series
Summary of Contents for Assa Abloy Sargent P700 NE Series
- Page 1 Installation Instructions P700 NE & P700 WE Series Lever Handle with Exit Trim Spindle Interaction MORTISE BLOCKING CYLINDER (CYLINDER) RING LOCKING MECHANISM SPACER TRUSS HEAD LEVER MACHINE SCREW HANDLE CAM DETENT SPRING PAN HEAD MACHINE SCREW FLAT HEAD BUSHING INSERT MACHINE SCREW CASE SPINDLE...
- Page 2 P700 NE & P700 WE Series Lever Handle with Exit Trim Installation Instructions P700 series control used with P700 series control used with PE8700 and P700 series control used with PE8900 Mortise lock exit devices. NB PE8700 surface mounted vertical rod PE8816 rim exit devices.
- Page 3 P700 NE & P700 WE Series Lever Handle with Exit Trim Installation Instructions Trim Lever Handing Loosen #4 - 40 x 3/16” flat head screws with a Remove flat head screws and cover plate. screwdriver. Remove bushing. Remove spindle. A8312-1 5/23 1-800-727-5477 •...
- Page 4 P700 NE & P700 WE Series Lever Handle with Exit Trim Installation Instructions Left Hand Right Hand Remove #4 - 40 x 3/16” flat head screws. Flip hub plate. Reinstall flat head screws. Remove cartridge. A8312-1 5/23 1-800-727-5477 • www.sargentlock.com Copyright ©...
- Page 5 P700 NE & P700 WE Series Lever Handle with Exit Trim Installation Instructions Move lever to opposite side. Loosen nut to allow rehanding. Adjust nut so lever rotates freely, but has minimal Confirm the lever has full rotation after tightening play.
- Page 6 P700 NE & P700 WE Series Lever Handle with Exit Trim Installation Instructions Put cartridge back into trim. Insert spindle. Insert bushing and then insert cover plate. Reinstall #4 - 40 x 3/16” flat head screws. A8312-1 5/23 1-800-727-5477 • www.sargentlock.com Copyright ©...
-
Page 7: Installation Instructions
P700 NE & P700 WE Series Lever Handle with Exit Trim Installation Instructions A8312-1 5/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents. - Page 8 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written A8312-1 5/23 permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
