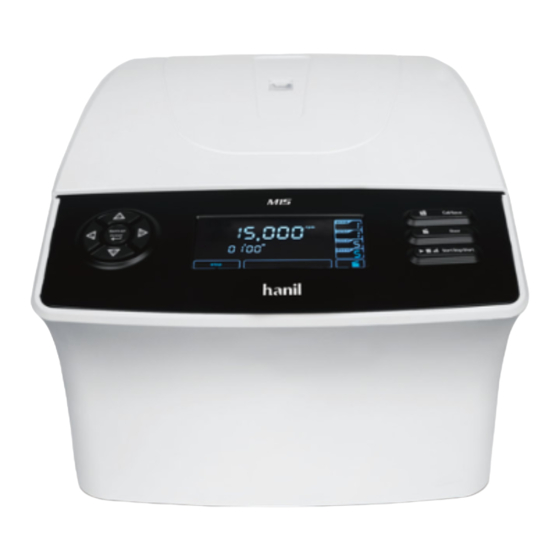

Hanil M15S Quick Manual

Quick Guide
Display & Control
Setting
Button
Setting RPM / RCF, Time, ACC / DEC
Press Select a parameter to be
the Setup / changed (Press the ◀or▶ but
Enter ton) → Up or down the values
button (Press the ▲or▼ button)
Setting RPM setting mode : RPM flashes
mode RCF setting mode : RCF flashes
Time setting mode : 00' 00'' flashes
Temperature setting mode : 00℃ flashes
ACC/DEC setting mode : Accel / Decel flashes
M15S
Cat. No. : M15S
Display Window
RPM / RCF / Time/ Temp / Program / Rotor ID / ACC / DEC
Program SAVE / CALL
Press Press the Call /
the Enter save button
SAVE Select the program number → Press the Enter button →
Set the parameters → Press the Setup / Enter button
CALL Select the program number → Press Setup / Enter button
Serial No.
Lid Open
Start / Stop / Short spin
Select the program Press the Enter
number (Press the
▲ or ▼ button)
Installation Date.
Program SAVE/CALL
Saving/Calling up a program (Up to 10)
M15S
Max. RPM 15,000 rpm
Max. RCF 21,206 xg
< 100 min, pulse,
Timer
continuous
ACC / DEC Ramps 9/10
Short Spin
Set the desired
Speed
(see 'Setting Run
Parameters')
Press the short
button more than
2 sec
