LEDs
VBOX Touch has 4 LEDs above the display. These can flash in different colours and different frequency patterns
depending on the process being performed. You can learn more about the behaviour of the LEDs on VBOX Touch here.

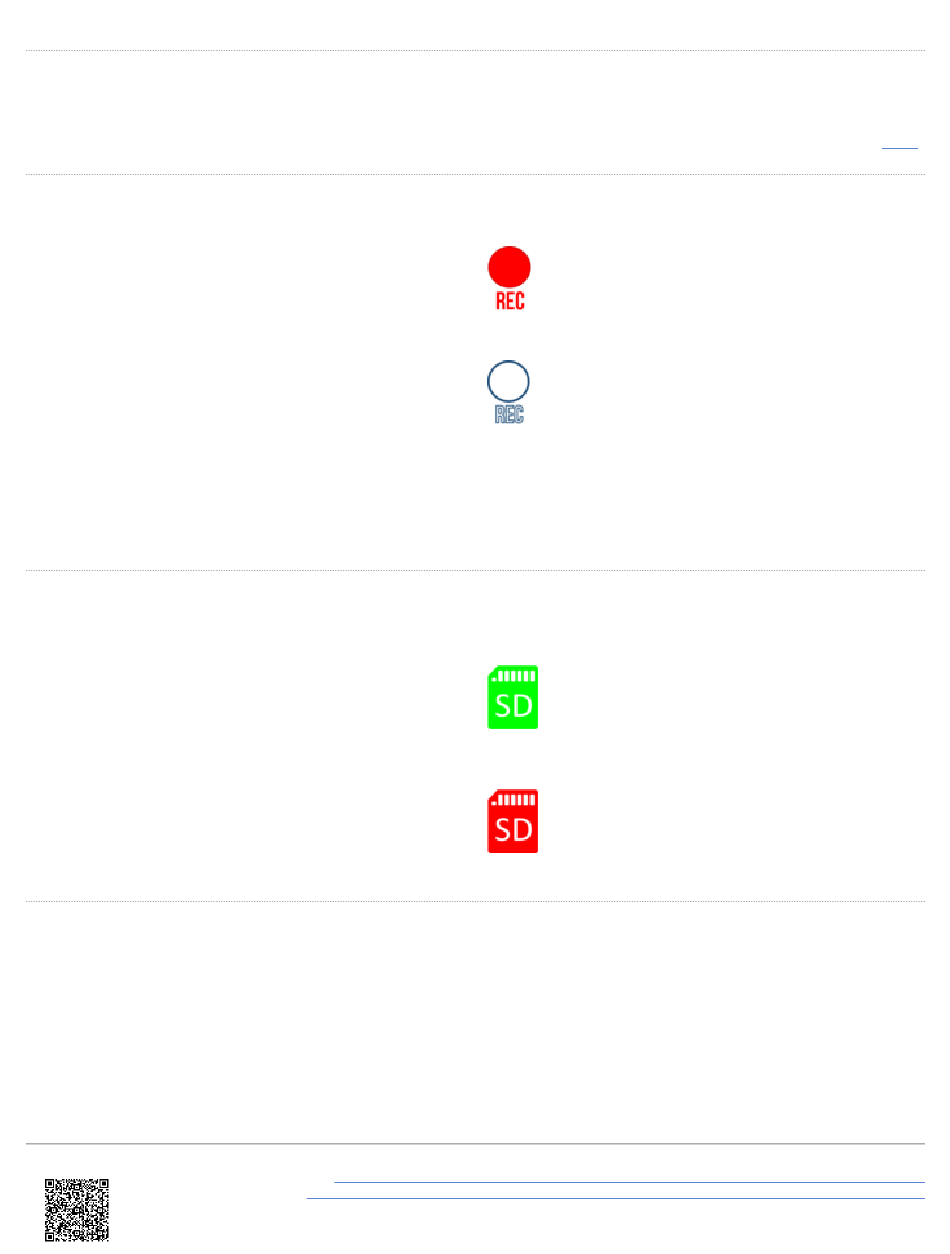

Logging Status
The
red
Record Icon will show when the unit is logging
data to the SD card.
If the icon appears white after you have initiated
logging, it means that the unit is primed for logging and
is in the process of synchronising the internal real-time
clock (RTC) to GPS time. The logging will not start until
this synchronisation process is complete.
IMPORTANT
Do not remove the SD card when the Record Icon is red. You may lose data or damage the SD card if you
remove it while the unit is logging.
SD Status
The SD Card Icon displays the status of the recording
media. When an SD card has been inserted and has
free space, the icon will be green. By tapping on the
icon when it is green, you can manually start or stop the
data logging and override the Configured Logging
Strategy.
If the unit cannot detect an SD card or the media is full
or corrupted, the icon will be red.
Satellite Status
The Satellite Icon illustrates whether the unit has a valid
satellite lock.
