Gage Bilt GB752SHVT Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORIGINAL INSTRUCTIONS
S/N: 1002 AND ABOVE
PLEASE CONTACT GAGE BILT FOR
ALL OTHER SERIAL NUMBERS.

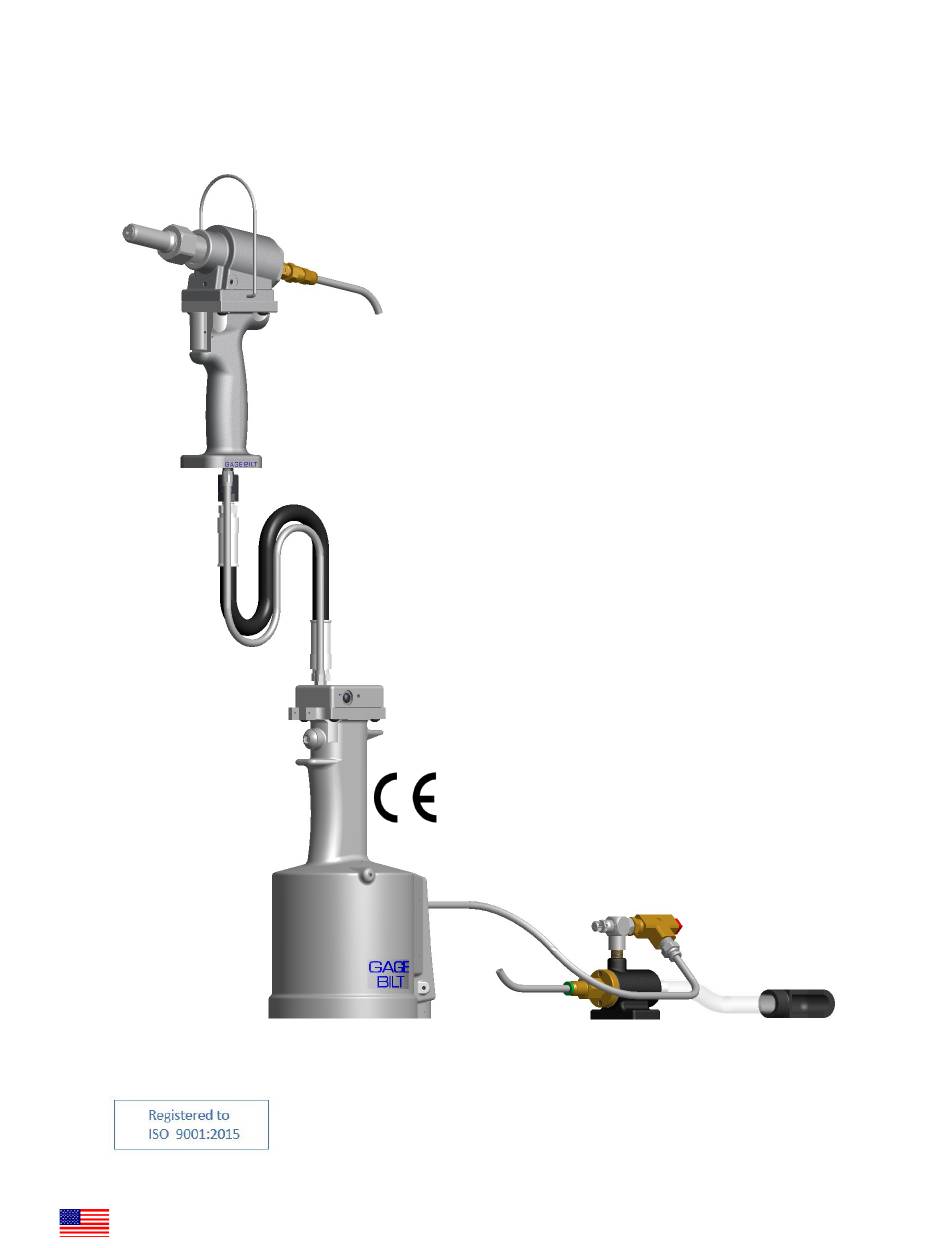

GB752SHVT
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
E-MAIL US FOR A DISTRIBUTOR NEAR YOU.
GAGE BILT
44766 Centre Court, Clinton Twp., MI. 48038 USA
Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505
MADE in USA
solutions1@gagebilt.com / www.gagebilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB752SHVT and is the answer not in the manual?

Questions and answers

Related Manuals for Gage Bilt GB752SHVT

Summary of Contents for Gage Bilt GB752SHVT

  • Page 1 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS. GB752SHVT INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT 44766 Centre Court, Clinton Twp., MI. 48038 USA Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505 MADE in USA solutions1@gagebilt.com / www.gagebilt.com...

  • Page 2: Table Of Contents

    Overhaul ....................................14-16 Parts Lists .................................... 17-18 DEXRON® III Oil Safety Data (SDS) ............................19 Nose Assembly Selection Chart and Accessories ......................20-24 GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 3: Eu Conformity And Warranty

    GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct., Clinton Twp., Michigan U.S.A. +1(586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & 12100-2:2010 EN ISO 11148-1:2011...

  • Page 4: Description And Technical Specifications

    At 90 psi. (6.2 bar) of air pressure, the GB752SHVT does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle). The GB752SHVT comes with 8 feet (2.4 m) of hose and a vacuum system for fod control. The air inlet is provided with 1/4 - 18 female pipe thread to accept the users air hose fitting.

  • Page 5: Description Of Functions

    Hydraulic “PULL” Hose Bleed Screw Air Line “RETURN” Handle Assembly Flow_Speed Air Inlet Control Valve Vacuum Image may not reflect actual tool GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 6: Warnings

    4. Support the weight of the tool in a stand, tensioner or balancer, because a lighter grip can then be used to support the tool. GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 7: Principle Of Operation

    Air Piston moves down Air exhaust Air exhaust Pressurized Oil Pressurized Air Unpressurized Oil Unpressurized Air Images may not reflect actual tool GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 8: How To Set-Up The Gb752Shvt

    HEAD CYLINDER FASTENER WORK LEVER RED SHIPPING PLUG USER QUICK DISCONNECT FITTING AIR INLET AIR HOSE DEFLECTOR Image may not reflect actual tool GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 9: How To Use The Gb752Shvt

    6. Repeat steps 1 - 5. Release lever as soon as fastener breaks. Repeat steps 1 - 4. Images may not reflect actual tool or fastener GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 10: Maintenance And Hydraulic Thread Preparation

    WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair must be done by qualified personnel trained on Gage Bilt procedures. WARNING: Excessive contact with hydraulic oil and lubricants must be avoided.

  • Page 11: Filling

    (S832) Bleeder Hole on Head Cylinder assembly (752120) facing upward. ***Keep air hole free from oil*** Images may not reflect actual tool. GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 12: Bleeding

    Subtract dimension (A) from dimension (B). If stroke is not consistent within 1/64" (.396 mm) repeat bleeding procedure until stroke met. For your consideration, Gage Bilt offers a depth gage (Pt.# A-1935) to help simplify and more accurately check your tool stroke.

  • Page 13: Troubleshooting

    21 to select Stroke Limiter). Tighten End Cap onto tool. (See pg. 10 for torque setting). Images may not reflect actual tool GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 14: Overhaul

    Perform overhaul in a clean, well lit area using care not to scratch or nick any smooth surface that comes in contact with an o'ring. Use of Lubriplate® (Gage Bilt part no. 402723) or other lubricant is recommended during reassembly to prevent tearing or distorting of o'rings.
  • Page 15 Reinsert pin (703543) into hole on handle assembly (700343). Re-attach the lever (704345) and tighten set screw (401771). Note: View above shows proper orientation of lever. GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 16 Valve spring installation tool (744251) will facilitate the proper installation of the spring (744144). Valve sleeve (743144) can be pulled out using valve sleeve removal tool (744152). GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 17: Parts Lists

    PARTS LIST GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 18 PARTS LIST GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 19: Dexron® Iii Oil Safety Data (Sds)

    Use material for its intended purpose or recycle if possible. Oil collection services are available for used oil recycling or disposal. Place contaminated materials in containers and dispose of in a manner consistent with applicable regulations. GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 20: Nose Assembly Selection Chart And Accessories

    GB752SHVT ACCESSORIES Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) NOSE ASSEMBLY SELECTION CHART STRAIGHT RIGHT ANGLE OFFSET (Sold Separately) (Sold Separately) (Sold Separately) FASTENER DIA. STRAIGHT *RIGHT ANGLE...
  • Page 21 Accessories Cont. Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) Adapter Assembly Adapter Assembly 730715 751204 Adapts GB715 Series Nose Assemblies to: Adapts 204 offset series nose assemblies to GB752 installation tool.
  • Page 22 Hand held weight - 2.00 lbs (.9 kg) Entire tool weight - 7.00 lbs (3.2 kg) Pull load - 3,800 lbs.(16.9 kN) GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 23 This page intentionally left blank GB752SHVT INSTALLATION TOOL SN# 1002 AND ABOVE REV 4/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 24 Riveter Kits Available (Sold Separately) Gage Bilt offers a wide selection of standard and custom kits tailored to your needs. Contact us for more information. Approved Approved Split Riveter Tool Backpacks For 5ft hose Split System Tools. (Sold Separately) DEXRON® IS A REGISTERED TRADEMARK OF GENERAL MOTORS CORPORATION. LOCTITE® IS A REGISTERED TRADEMARK OF HENKEL CORPORATION. LUBRIPLATE® IS A REGISTERED TRADE- MARK OF FISKE BROTHERS REFINING CO.
