Gage Bilt GB751SH Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORIGINAL INSTRUCTIONS
S/N: 1364 AND ABOVE
PLEASE CONTACT GAGE BILT FOR
ALL OTHER SERIAL NUMBERS.

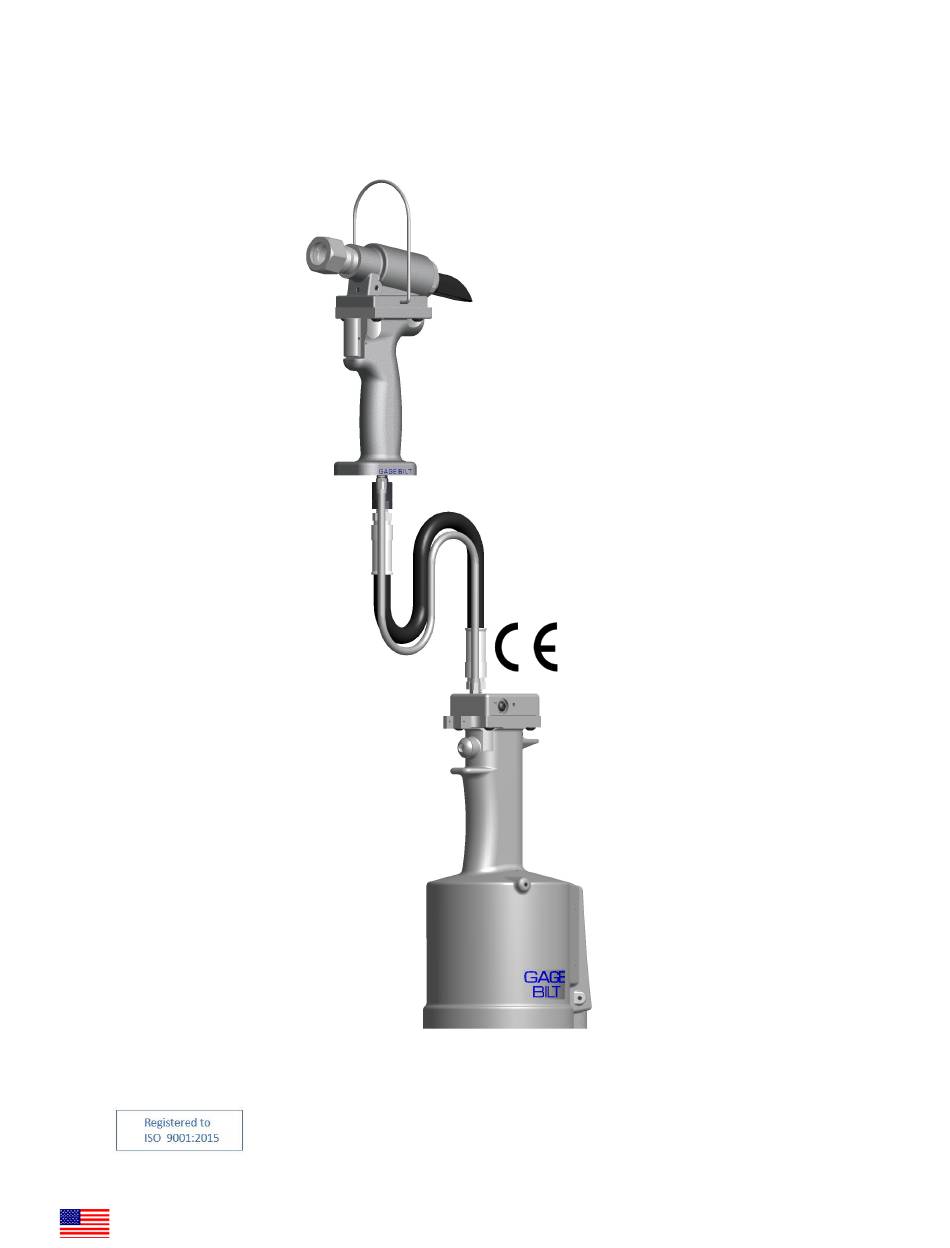

GB751SH
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
E-MAIL US FOR A DISTRIBUTOR NEAR YOU.
GAGE BILT
44766 Centre Court, Clinton Twp., MI. 48038 USA
Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505
MADE in USA
solutions1@gagebilt.com / www.gagebilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB751SH and is the answer not in the manual?

Questions and answers

Related Manuals for Gage Bilt GB751SH

Summary of Contents for Gage Bilt GB751SH

  • Page 1 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS. GB751SH INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT 44766 Centre Court, Clinton Twp., MI. 48038 USA Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505 MADE in USA solutions1@gagebilt.com / www.gagebilt.com...

  • Page 2: Table Of Contents

    Overhaul ....................................14-16 Parts Lists .................................... 17-18 DEXRON® III Oil Safety Data (SDS) ............................19 Nose Assembly Selection Chart ............................. 20 Accessories ..................................21-24 GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 3: Eu Conformity And Warranty

    GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct., Clinton Twp., Michigan U.S.A. +1(586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & EN12100-2 EN792-1:2000+A1 The Supply of Machinery (Safety) Regulations 2008 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str.

  • Page 4: Description And Technical Specifications

    2.50 lbs. (1.13 kg). The entire split handle installation tool weighs 7.50 lbs. (3.40 kg). It has a .780” (19.8 mm) fastener setting stroke. The GB751SH split handle riveter operates on 90 to 100 psi. (6.2-6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency.

  • Page 5: Description Of Functions

    Pintail Deflector Bleed Screw Handle Assembly Lever Hydraulic “PULL” Bleed Screw Air “RETURN” Handle Assembly Air Inlet Image may not reflect actual tool GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 6: Warnings

    4. Support the weight of the tool in a stand, tensioner or balancer, because a lighter grip can then be used to support the tool. GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 7: Principle Of Operation

    Air Piston moves down Air exhaust Air exhaust Pressurized Oil Pressurized Air Unpressurized Oil Unpressurized Air Images may not reflect actual tool GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 8: How To Set-Up The Gb751Sh

    HEAD CYLINDER DEFLECTOR WORK FASTENER LEVER RED SHIPPING PLUG USER QUICK DISCONNECT FITTING AIR INLET AIR HOSE Image may not reflect actual tool. GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 9: How To Use The Gb751Sh

    Press lever to start cycle. Release lever as soon as fastener breaks. Repeat steps 1 - 4. Images may not reflect actual tool or fastener GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 10: Maintenance

    WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair must be done by qualified personnel trained on Gage Bilt procedures. WARNING: Excessive contact with hydraulic oil and lubricants must be avoided.
  • Page 11 Bleeder Hole on Head Cylinder assembly (703119) facing upward. Oil passage with o’ring (S832) ***Keep air hole free from oil*** Images may not reflect actual tool. GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 12 Subtract dimension (A) from dimension (B). If stroke is not consistent within 1/64" (.396 mm) repeat bleeding steps 5 - 8. For your consideration, Gage Bilt offers a depth gage (Pt.# A-1935) to help simplify and more accurately check your tool stroke.

  • Page 13: Troubleshooting

    Replace worn or broken parts. Clean the surface the jaws ride on. b) Stems lodged side by side in the follower. Disassemble, remove stems, and reassemble. c) Incorrect follower. GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 14: Overhaul

    Perform overhaul in a clean, well lit area using care not to scratch or nick any smooth surface that comes in contact with an o'ring. Use of Lubriplate® (Gage Bilt part no. 402723) or other lubricant is recommended during reassembly to prevent tearing or distorting of o'rings.
  • Page 15 Reinsert pin into hole on handle assembly (700343). flush against pin dia. in hole Re-attach the lever and tighten set screw. Note: View above shows proper orientation of lever. GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 16 Valve spring installation tool (744251) will facilitate the proper installation of the spring (744144). Valve sleeve (744138) can be pulled out using valve sleeve removal tool (744152). GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 17: Parts Lists

    PARTS LIST GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 18 PARTS LIST GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 19: Dexron® Iii Oil Safety Data (Sds)

    Use material for its intended purpose or recycle if possible. Oil collection services are available for used oil recycling or disposal. Place contaminated materials in containers and dispose of in a manner consistent with applicable regulations GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 20: Nose Assembly Selection Chart

    GB751SH ACCESSORIES Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) NOSE ASSEMBLY SELECTION CHART RIGHT ANGLE OFFSET STRAIGHT (Sold Separately) (Sold Separately) (Sold Separately) FASTENER DIA. STRAIGHT RIGHT ANGLE...

  • Page 21: Accessories

    Accessories Cont. Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) Gage Bilt also supplies pin & collar Grip Gage #269G3 swage inspection gages to certify For CHERRYMAX® and CHERRYLOCK® rivets swage installation.
  • Page 22 Hand held weight - 1.75 lbs. (.79 kg) Entire tool weight - 6.75 lbs. (3.06 kg) Pull load - 2,200 (9.79 kN) GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 23 This page intentionally left blank GB751SH INSTALLATION TOOL S/N: 1364 AND ABOVE Rev 1/23 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.
  • Page 24 Riveter Kits Available (Sold Separately) Gage Bilt offers a wide selection of standard and custom kits tailored to your needs. Contact us for more information. Approved Split Riveter Tool Backpacks For 5ft hose Split System Tools. (Sold Separately) TEFLON® IS REGISTERED TRADEMARK OF E.I. DUPONT DE NEMOURS & CO. LUBRIPLATE® IS A REGISTERED TRADEMARK OF FISKE BROTHERS REFINING CO. LOCTITE® IS A REGISTERED TRADEMARK OF HENKEL CORPORATION.
