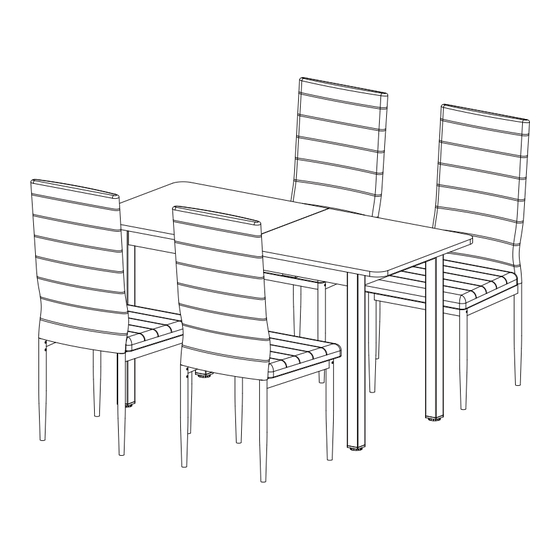

Dining Set
KF180131-01
1/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the KF180131-01 and is the answer not in the manual?

Questions and answers

Related Manuals for FUFU & GAGA KF180131-01

Summary of Contents for FUFU & GAGA KF180131-01

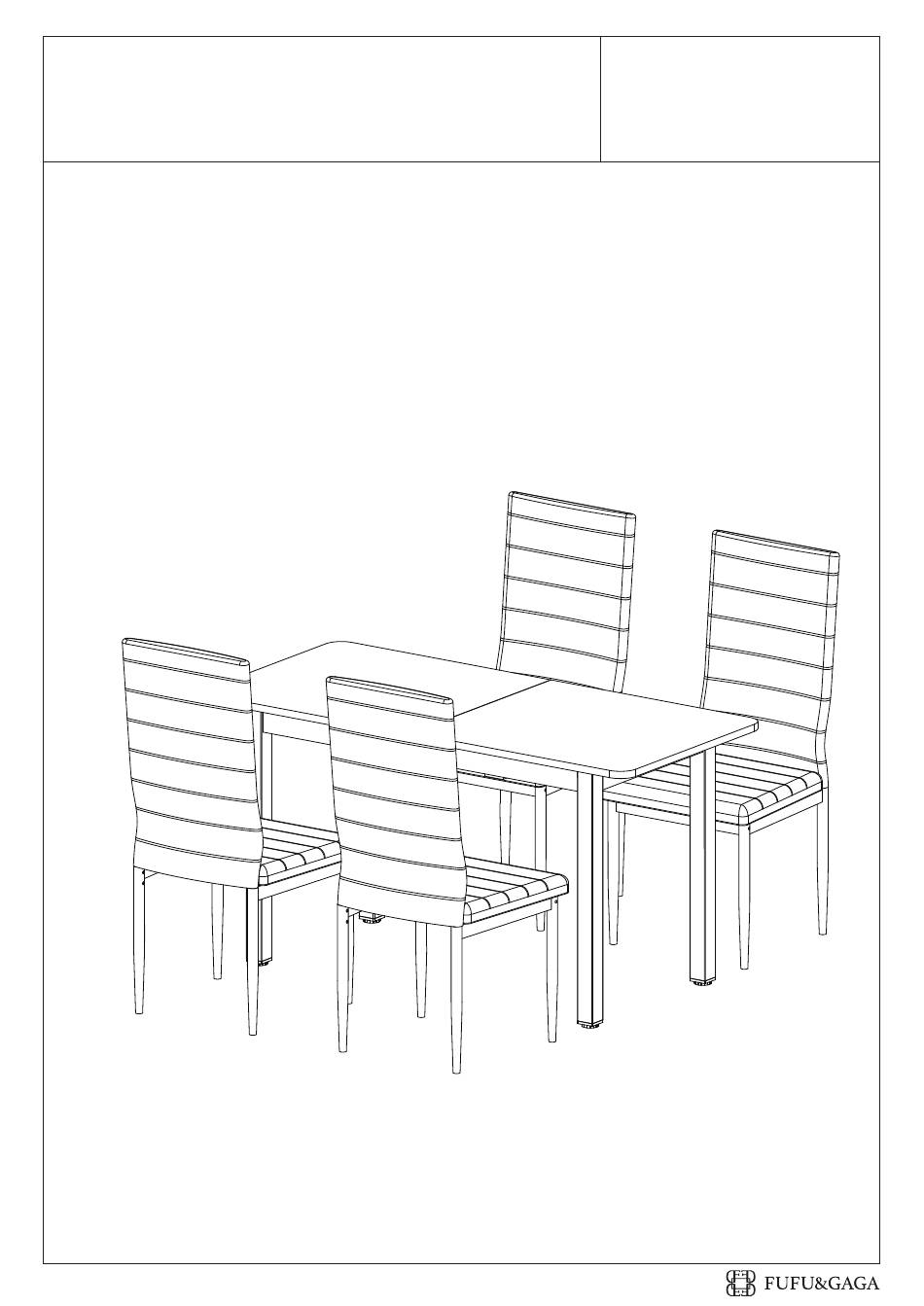

  • Page 1 Dining Set KF180131-01 1/24...
  • Page 2 2/24...
  • Page 3 15 x 11 mm 5 x 31 mm 7 x 34 mm 3 x 12 mm Lx32 6 x 37 mm 6 x 12 mm 3.5x14mm 3/24...
  • Page 4 4/24...
  • Page 5 3.5 x 14 mm Fix telescopic slide rail(J) to part 3 using screw(M) as shown. Please pay attention the holes where screws in. 5/24...
  • Page 6 Connect two plate 1 together at first. 6/24...
  • Page 7 3 x 12 mm Attach part 3 to plate 1 by fixing slid rail using screw(E) as shown. 7/24...
  • Page 8 5 x 31 mm Insert quickfit screw(A) into two plate 1 with a screwdriver as shown. 8/24...
  • Page 9 15 x 11 mm Attach plate 4 to two plate 1 at first. Put cam lock(B) into holes in plate 4, and turn clockwise to tighten as shown. 9/24 9/22...
  • Page 10 Insert nut(G) into holes in plate 4 at first. Fix plate 5 to plate 4 using screw(F) as shown. 10/24...
  • Page 11 7 x 34 mm Fix leg 6 to four corners of part 3 using screw(D) as shown. 11/24...
  • Page 12 Fix part(H) to leg 6 as shown. 12/24...
  • Page 13 Pressing the switch in slide rail(J) will not be able to pull out plate 1. 13/24...
  • Page 14 14/24...
  • Page 15 Lifting the switch in slide rail(J) will be able to pull out plate 1. 15/24...
  • Page 16 Put plate 2 in the middle, and connect with plate 1. Use sticker(C) to cover cam lock holes. 16/24...
  • Page 17 Pressing the switch in slide rail(J) will not be able to pull out plate 1 and 2. 17/24...
  • Page 18 Take out plate 2 and put it on plate 5, then push plate 1 inward. 18/24...
  • Page 19 19/24...
  • Page 20 6 x 37 mm Fix leg component 7 and 11 with plate 8 using screw(K) as shown. Please do not tighten the screws completely, just 75%. 20/24...
  • Page 21 Lx16 6 x 12mm Attach chair back to leg part 7 and 11 using screw(L) as shown.Please do not tighten the screws completely, just 75%. After finishing assembling, please tighten all screws completely. 21/24...
  • Page 22 Lx16 6 x 12mm Attach chair seat 12 to the component and fix using screw(L) as shown. 22/24...
  • Page 23 23/24...
  • Page 24 24/24...

  • Page 25: Warranty Claims

    WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part.
