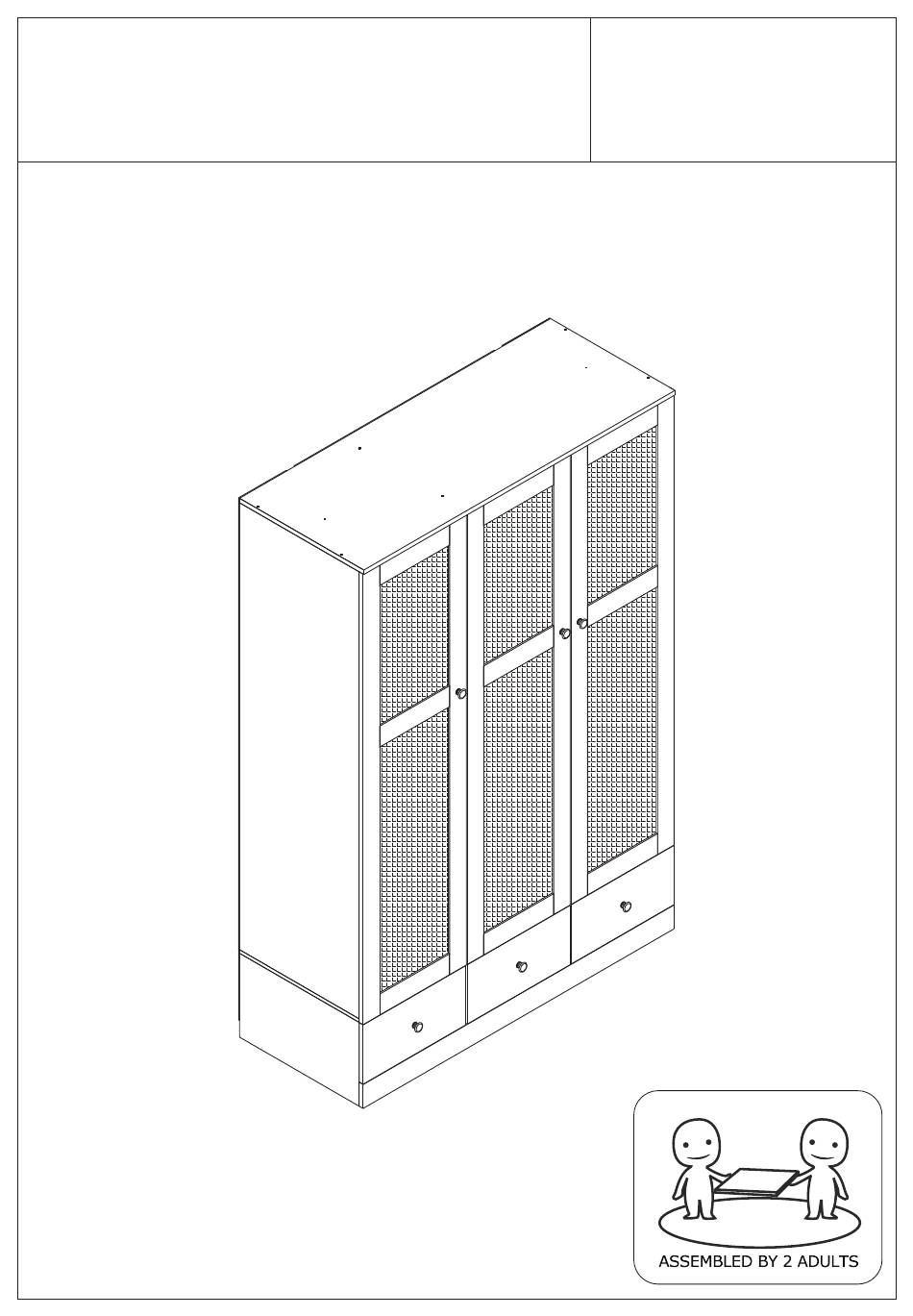

- Page 1 Wardrobe Version:12/28/2023 1/19...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size A x 42 B x 42 C x 28 D x 44 E x 30 6 x 35 mm 15 x 9.5 mm 4 x 35 mm...
- Page 4 ALWAYS install Anti-tip device provided. NEVER put a TV on this product. NEVER allow children to stand,climb or hang on drawers,doors,or shelves. NEVER open more than one drawer at a time. Place heaviest items in the lowest drawers. This is a permanent label. Do not remove! 4/19...
- Page 5 A x 28 E x 4 J x 2 6 x 35 mm 3.5 x 12 mm Screw eccentric rod(A) into board 1, 2, 3 and 12 as shown. Screw eccentric rod(A) into board 11 and fix part(J) with screw(E) at first, flip to back, screw eccentric rod(A) into as shown.
- Page 6 D x 16 6 x 30 mm Insert wooden dowel(D) into board 5 and 6 as shown. B x 6 15 x 9.5 mm The hook of the clothing rod is on the opposite of the board. 180° Attach board 6 to board 11, add cam lock(B) into board 6 and turn clockwise to tighten as shown.
- Page 7 B x 6 15 x 9.5 mm Attach board 2 to board 6, add cam lock(B) into board 6 and turn clockwise to tighten as shown. 180° B x 4 15 x 9.5 mm Connect board 3 and 11 to board 5, add cam lock(B) into board 5 and turn clockwise to tighten as shown.
- Page 8 E x 2 M x 2 N x 4 P x 1 3.5 x 12 mm 4 x 12 mm Fix part(M) to board 4 with screw(N), fix part(P) with screw(E) as shown. C x 6 D x 6 4 x 35 mm 6 x 30 mm Attach board 4 to board 2, 11 and 3 using wooden dowel(D)
- Page 9 C x 6 D x 6 4 x 35 mm 6 x 30 mm Attach board 1 to board 2, 11 and 3 using wooden dowel(D) and fix with screw(C) as shown. 9/19...
- Page 10 E x 12 CL x 3 CR x 3 3.5 x 12 mm Fix rail(CL) and (CR) to board 8 and 9 respectively with screw(E) as shown. Fix rail(CL) to board 10 with screw(E) at first, flip to back, fix rail(CR) as shown. 180°...
- Page 11 C x 2 D x 2 4 x 35 mm 6 x 30 mm Attach board 10 to board 7 using wooden dowel(D) and fix with screw(C) as shown. B x 2 D x 2 15 x 9.5 mm 6 x 30 mm Attach board 8 and 9 to board 7 using wooden dowel(D), add cam lock(B) into board 7 and turn clockwise to tighten as shown.
- Page 12 B x 4 D x 4 15 x 9.5 mm 6 x 30 mm Attach board 12 to board 8, 10 and 9 using wooden dowel(D), add cam lock(B) into board 8,10,9 and turn clockwise to tighten as shown. 180° B x 8 D x 8 15 x 9.5 mm...
- Page 13 K x 32 L x 7 2.5 x 14 mm Connect board 15 and 35 to plank 19 at first. Fix back board 14, 35, 15 and 17 with screw(K) as shown. Use iron sheet(L) to fix each back board with screw(K) as shown. 13/19...
- Page 14 C x 2 O x 2 4 x 35 mm Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (M). Fasten to wall using wall anchor (L), wall screw(C).
- Page 15 C x 12 4 x 35 mm Fix board 27 and 28 to board 29 with screw(C) as shown. Insert bottom board 30 along available grooves as shown. A x 12 H x 3 I x 3 6 x 35 mm 4 x 25 mm Screw eccentric rod(A) into board 13, 33 and 34 at first.
- Page 16 B x 12 15 x 9.5 mm 180° Attach board 13, 33 and 34 to board 27 and 28, add cam lock(B) and turn clockwise to tighten as shown. E x 12 DL x 3 DR x 3 3.5 x 12 mm Fix runner(DL) and (DR) to board 27 and 28 with screw(E) as shown.
- Page 17 Place clothing rod 20 and slide all drawers in. 17/19...
- Page 18 F x 72 G x 12 H x 3 I x 3 4 x 12 mm 4 x 25 mm Fix hinge(G) to board 22 and 23 with screw(F) as shown. Fix knob(I) with screw(H) as shown. Assemble door panel 22 to board 2 and 11;...
- Page 19 If doors are still not aligned if the hinges are properly correctly, please watch the video. https://youtu.be/n0Lb36SoODM 19/19...
-
Page 20: Warranty Claims
WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part. - Page 21 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
