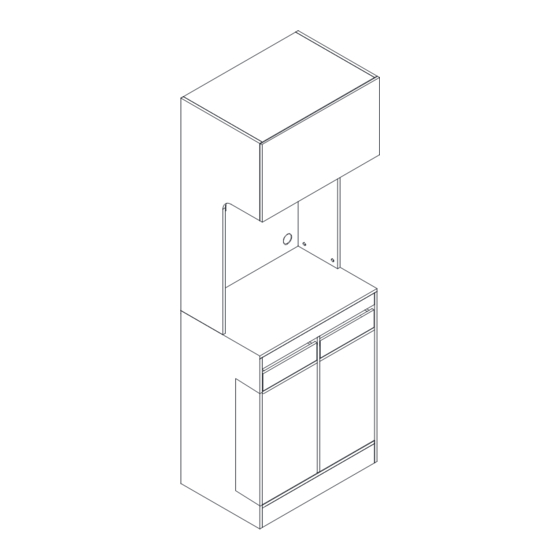

FUFU & GAGA KF180119-01 Assembly Instructions Manual

Pantry
Hide thumbs

Advertisement

Quick Links

Download this manual
Pantry
KF180119-01
1/42

Advertisement

loading
Need help?

Need help?

Do you have a question about the KF180119-01 and is the answer not in the manual?

Questions and answers

Related Manuals for FUFU & GAGA KF180119-01

Summary of Contents for FUFU & GAGA KF180119-01

  • Page 1 Pantry KF180119-01 1/42...
  • Page 2 2/42...
  • Page 3 3/42...
  • Page 4 4/42...
  • Page 5 A x 16 5 x 31 mm Insert quickfit screw(A) into corresponding holes in plate 20,21 and 24 with a screwdriver as shown. 5/42...
  • Page 6 F x 8 15 x 9.5 mm Connect plate 20 and 21 to plate 22, insert cam lock(F) into plate 22 and turn clockwise to tighten as shown. 180° 6/42...
  • Page 7 F x 8 15 x 9.5 mm Slide plate 23 along grooves at first. Attach plate 24 to plate 20 and 21, insert cam lock(F) into plate 20,21 and turn clockwise to tighten as shown. 180° 7/40 7/42...
  • Page 8 D x 8 E x 2 3 x 12 mm L=300 mm Fix runner(E-DL) and (E-DR) to plate 20 and 21 respectively using screw(D) as shown. E-DL E-DR E-DR E-DL E-DL 8/42...
  • Page 9 A x 14 D x 4 E x 2 5 x 31 mm 3 x 12 mm L=300 mm E-CL E-CL Insert quickfit screw(A) into corresponding holes in plate 10 and 11 with a screwdriver as shown. Fix slide rail(E-CL) and (E-CR) to plate 10 and 11 respectively using screw(D) as shown.
  • Page 10 D x 4 E x 2 3 x 12 mm L=300 mm E-CR E-CR 0° E-CL E-CL Fix slide rail(E-CR) to plate 25 using screw(D) at first. Flip the plate, fix slide rail(E-CL) using screw(D) as shown. 10/42...
  • Page 11 A x 4 G x 2 5 x 31 mm 3.5 x 14 mm Insert quickfit screw(A) into corresponding holes in plate 25, and fix part(G) at first. Flip the plate,insert quickfit screw(A) and fix part(G) as shown. 0° 11/42...
  • Page 12 A x 4 B x 4 C x 4 5 x 31 mm 1 5 x 11 mm 6 x 30 mm Insert quickfit screw(A) into corresponding holes in plate 17 as shown. Attach plate 19(x2) to plate 17 with wooden dowel(C), insert cam lock(B) into plate 19 and turn clockwise to tighten as shown.
  • Page 13 A x 2 5 x 31 mm Insert quickfit screw(A) into corresponding holes in plate 17 as shown. 13/42...
  • Page 14 B x 2 C x 2 1 5 x 11 mm 6 x 30 mm Attach plate 25 to plate 17 with wooden dowel(C), insert cam lock(B) into plate 25 and turn clockwise to tighten as shown. 14/42...
  • Page 15 C x 2 F x 2 1 5 x 9.5 mm 6 x 30 mm Attach plate 13 to plate 25 with wooden dowel(C), insert cam lock(F) into plate 13 and turn clockwise to tighten as shown. 180° 180° 15/42...
  • Page 16 B x 3 C x 4 F x 2 1 5 x 11 mm 1 5 x 9.5 mm 6 x 30 mm Insert wooden dowel(C) into plate 13 and 17 at first. Attach plate 10 to plate 15,13 and 17, insert cam lock(B) into plate 17 and insert cam lock(F) into plate 15,13,then turn clockwise to tighten as shown.
  • Page 17 C x 4 F x 2 6 x 30 mm 1 5 x 9.5 mm Attach plate 14 to plate 25 with wooden dowel(C), insert cam lock(F) into plate 14 and turn clockwise to tighten as shown. 180° 17/42...
  • Page 18 B x 5 C x 6 F x 2 1 5 x 11 mm 6 x 30 mm 1 5 x 9.5 mm Insert wooden dowel(C) into plate 14 and 17 at first. Attach plate 11 to plate 15,14 and 17, i nsert cam lock(B) into plate 17 and insert cam lock(F) into plate 15,14,then turn clockwise to tighten as shown.
  • Page 19 Slide plate 7 along grooves as shown. 19/42...
  • Page 20 A x 12 5 x 31 mm Insert quickfit screw(A) into corresponding holes in plate 8 at first. Flip the plate,insert quickfit screw(A) as shown. 180° 20/42...
  • Page 21 B x 8 C x 8 1 5 x 11 mm 6 x 30 mm Cover plate 8 to plate 10,11 and 25 with wooden dowel(C), insert cam lock(B) into plate 10, 11,25 and insert cam lock(B) into plate 15,14,then turn clockwise to tighten as shown.
  • Page 22 A x 8 5 x 31 mm Insert quickfit screw(A) into corresponding holes in plate 2 and 3 as shown. 22/42...
  • Page 23 P x 1 Fix part(P) to plate 1 as shown. 23/42...
  • Page 24 C x 4 F x 4 6 x 30 mm 1 5 x 9.5 mm Attach plate 1 and 4 to plate 2 with wooden dowel(C), insert cam lock(F) into plate 1,4, then turn clockwise to tighten as shown. 180° 24/42...
  • Page 25 C x 4 F x 4 6 x 30 mm 1 5 x 9.5 mm Slide plate 5 along grooves at first. Attach plate 3 to plate 1 and 4 with wooden dowel(C), insert cam lock(F) into plate 1,4, then turn clockwise to tighten as shown.
  • Page 26 Slide bak plate 7 along grooves in plate 2 and 3 at first. 26/42...
  • Page 27 K x 2 P x 1 Fix hinge(K) to plate 6 using screw(H) as shown. 27/42...
  • Page 28 K x 2 J x 1 2 2 4 Attach door plate 6 to plate 1 by fixing hinge with screw(K) as shown. Fix part(J) to plate 2,3 and 6 as shown. 28/42...
  • Page 29 B x 4 C x 2 1 5 x 11 mm 6 x 30 mm Connect the two components with wooden dowel(C), insert cam lock(B) into plate 2,3, then turn clockwise to tighten as shown. 180° 29/42...
  • Page 30 M x20 3 x 10 mm Reinforce back plate using part(M) as shown. 30/42...
  • Page 31 A x 12 L x 2 G x 1 3.5x 14 mm 5 x 31 mm 3 x 10 mm Insert quickfit screw(A) into corresponding holes in plate 26,27 and 30 as shown. Fix hinge(L) to plate 26, fix part(G) to plate 30 as shown. 31/42...
  • Page 32 C x 2 F x 2 6 x 30 mm 1 5 x 9.5 mm Attach plate 29 to plate 27 with wooden dowel(C), put cam lock(F) into holes in plate 29 and turn clockwise to tighten as shown. Insert bar 28 into plate 27 as shown. 180°...
  • Page 33 C x 6 F x 6 6 x 30 mm 1 5 x 9.5 mm Attach the component to plate 30 with wooden dowel(C), put cam lock(F) into holes in plate 27,29 and turn clockwise to tighten as shown. 33/42...
  • Page 34 B x 2 C x 4 F x 2 1 5 x 11 mm 6 x 30 mm 1 5 x 9.5 mm Attach plate 26 to plate 30 with wooden dowel(C), put cam lock(B) into holes in plate 30 and turn clockwise to tighten at first.
  • Page 35 G x 1 H x 2 3 .5X14 mm 3 .5X14 mm Fix hinge(H) to plate 16 and fix part(G)as shown. ails, slide all drawers. 35/42...
  • Page 36 H x 8 3 .5X14 mm Attach door plate 16 to plate 11 by fixing hinge with screw(H) as shown. 36/42...
  • Page 37 L x 4 3 X10 mm Attach the component to plate 10 by fixing hinge using screw(L) as shown. 37/42...
  • Page 38 N x 72 Align rails, slide drawers. Cover cam lock using sticker(N). 38/42...
  • Page 39 P x 1 Drill holes on your wall, and knock part(P) into. 39/42...
  • Page 40 P x 1 Install anti-tipping device as shown. 40/42...
  • Page 41 If there is misalignment after you install, adjust the screw to the best condition 41/42...
  • Page 42 Ib s 42/42...

  • Page 43: Warranty Claims

    WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part.
  • Page 44 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
